N-com Spcom00000026 Antenna Instruction Manual

n-com SPCOM00000026 Antenna

INSTRUCTIONS FOR REPLACING THE SPCOM00000026

1. Remove the N-Com system from the helmet (see instruction booklet).

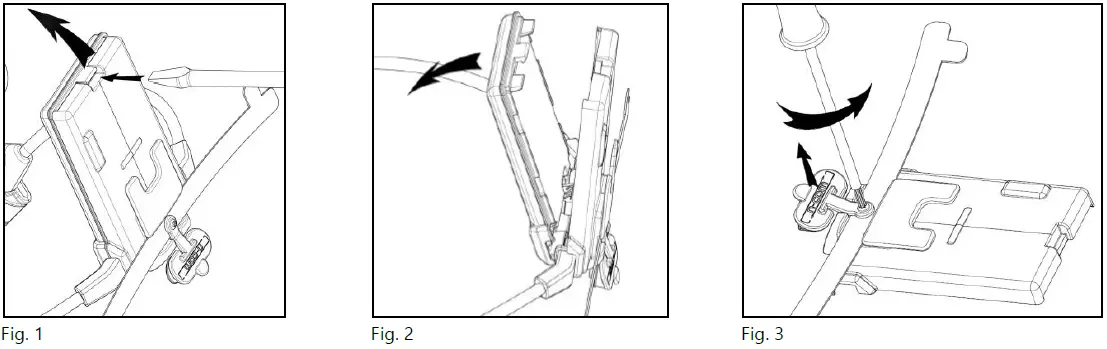

2. Open the e-box, unscrew the screw and remove the connector cover (Fig. 1-3).

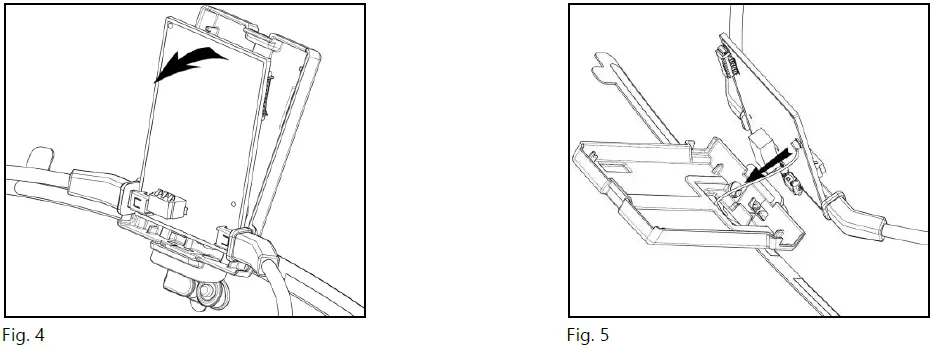

3. Disconnect the antenna connector (Fig. 4-5).
4. Place the new antenna inside the plastic box (e-box) (Fig. 6).
5. Connect the new antenna.
6. Screw the connector cover back in place.

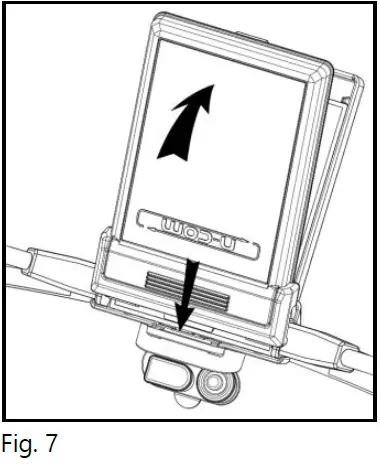

7. Close the e-box (Fig. 7).
8. Reposition the N-Com system inside the helmet (see instruction booklet).
