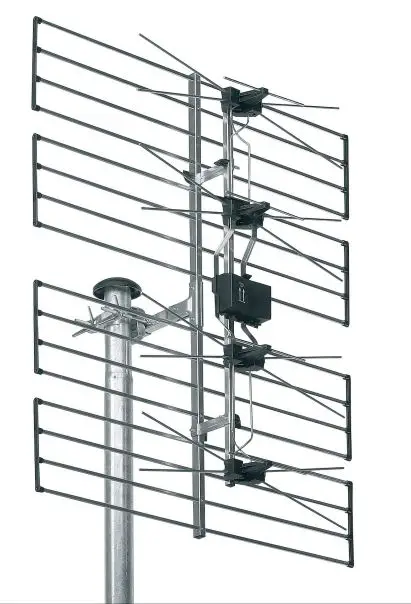

WISI EE 06 Broadband Antenna

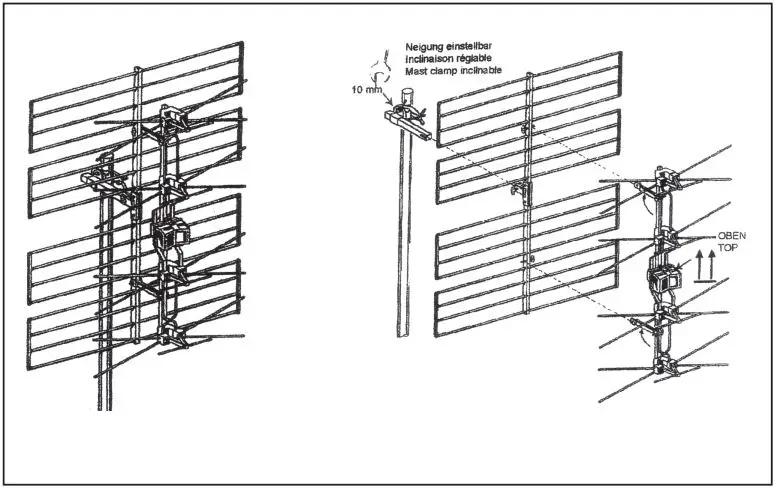

Mounting
Cable connection

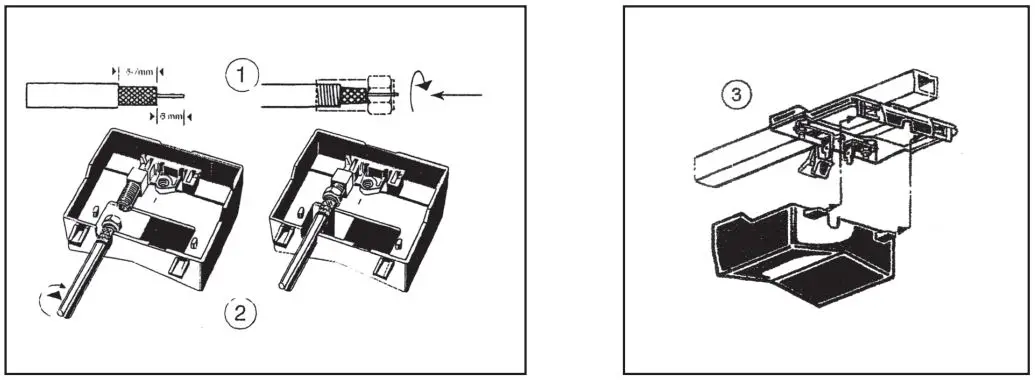

Strip the cable according to figure 1 and twist on the F-type connector. Tightly connect the cable with the f-type connector according to picture 2. Mount the button part ot the housing according to figure 3, make sure that it snaps in properly.
Technical Data EE 06
- Channels EE 06 21-69
- Elements –
- Gain max. 13.5 dB
- Back / front ratio >20 dB
- Half power beam width horizontal 46°
- Half power beam width vertical 27°
- Wind loading horizontal 107 N
- Wind loading vertical 107 N
- Length (HxWxD) 830 / 645 / 260 mm
- Connection 75 Ω, F-type-socket
