MONOGRAM ZDP486NDTSS 48″ Dual Fuel Professional Range

VERSATILE GAS BURNER CONFIGURATION Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range
of heat settings, from gentle simmer to intense flame

3-PIECE GRATES WITH REVERSIBLE WOK FEATURE Designed to adapt to different cooking styles, these reversible grates are flat on one side and uniquely contoured on the other
to perfectly fit round-bottom woks

WIFI MONITORING AND REMOTE CONTROL WITH THE SMARTHQ™ APP
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

DYNAMIC OVEN LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

CHEF CONNECT
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

INDUSTRY EXCLUSIVE—CUSTOM COLOR LED ACCENT LIGHTING
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match your kitchen décor or dining ambiance

RING-LIT KNOBS
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

SOLID BRASS BLADES ON PRECISION MACHINED KNOBS
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

SEAMLESS STAINLESS TOP FRAME
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

SOFT-CLOSE HINGES
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

5 OVEN RACKS (FULL-EXTENSION)
Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle PRECISION OVEN MODES WITH SMARTHQ APP Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

SPECIFICATIONS

ATTENTION ELECTRICIAN:
Electrical requirements: Ranges must be supplied with 208/240V, 60Hz, and connected to an individual, properly grounded branch circuit protected by a circuit breaker or time-delay
fuse. Install a 50-amp circuit for 48″ ranges. See installation instructions for further details.

OVERALL DIMENSIONS

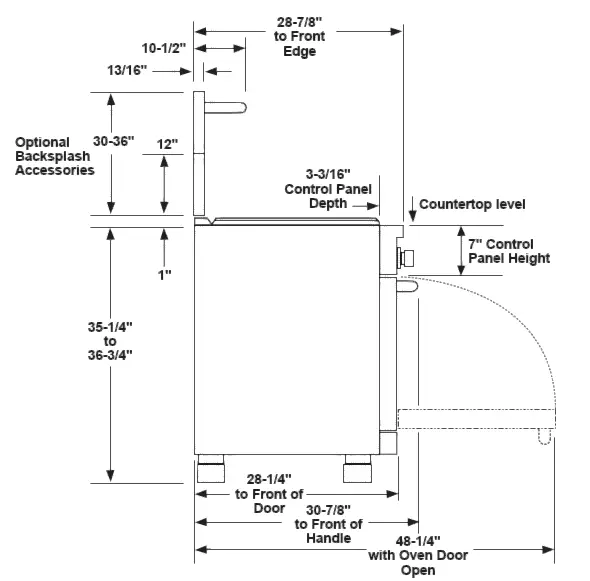

SIDE VIEW WITH A BACKSPLASH

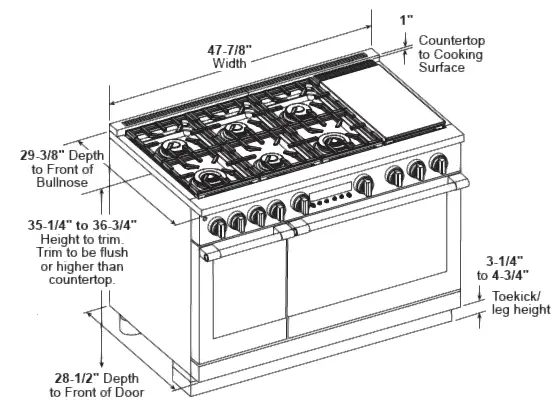

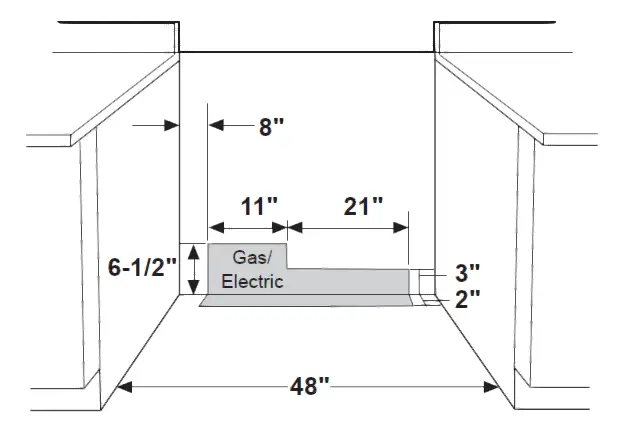

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

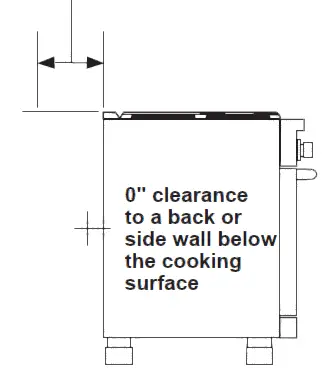

12″ min. to combustibles or 0″ to a non-combustible material above the cooking surface

HELPFUL TIPS

GAS PRESSURE REGULATOR
You must use the gas pressure regulator supplied with this rangetop. For proper operations the inlet pressure to the regulator should be as follows:

Natural Gas:
Minimum pressure: 6″ of Water Column
Maximum pressure: 13″ of Water Column

Propane (LP) Gas:
Minimum pressure: 11″ of Water Column
Maximum pressure: 13″ of Water Column
See installation instructions for more details

OPTIONAL BACKSPLASH ACCESSORIES

• The range requires a 12″ minimum clearance to a vertical combustible surface at the rear. A backsplash is required for installations with less than 12″ clearance. The following backsplash accessories are available, or a custom, non- combustible backsplash can be used.
• Order one with a 36″-wide range backsplash:
• UX12BS48PSS–12″-height backsplash
• UXADBS48PSS–30″-36″ adjustable-height backsplash with warming shelf
