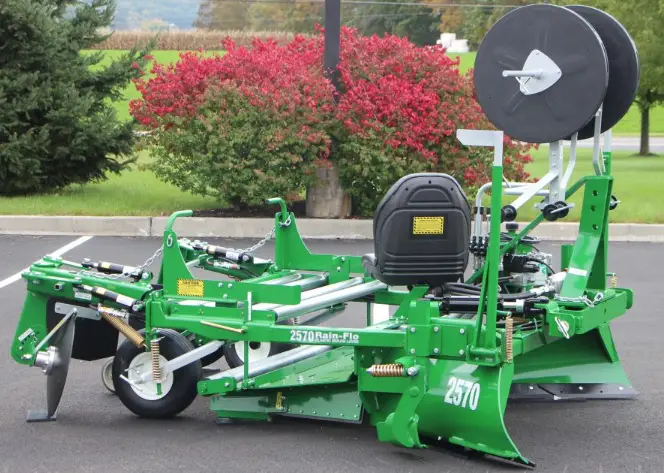

Rain-Flo IRRIGATION 2570 Raised Bed Plastic Mulch Layer
Assembly Instructions

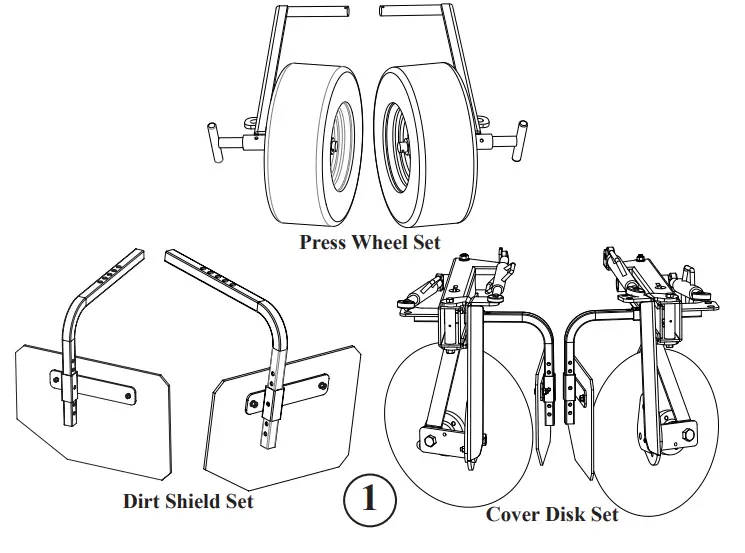

Standard Parts Shipped with Equipment:
Press Wheels

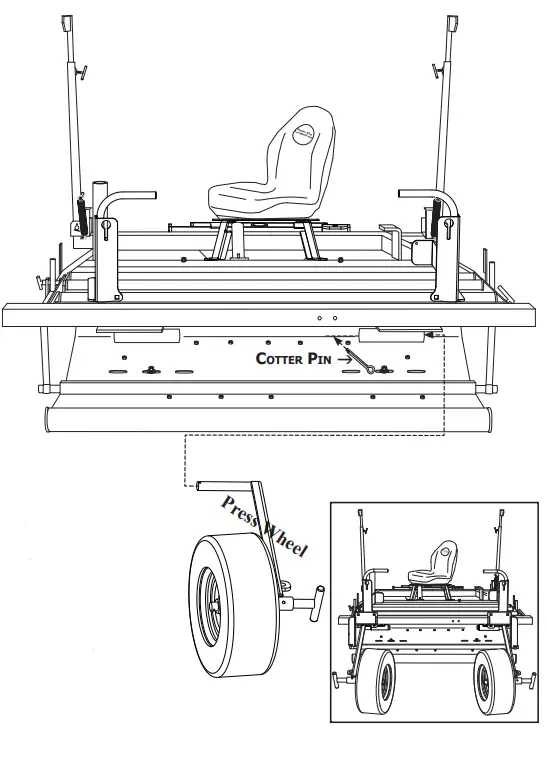

Remove cotter pin from hole on press wheel and slide through hinge. Fasten in place with cotter pin.
Disks and Dirt Shields

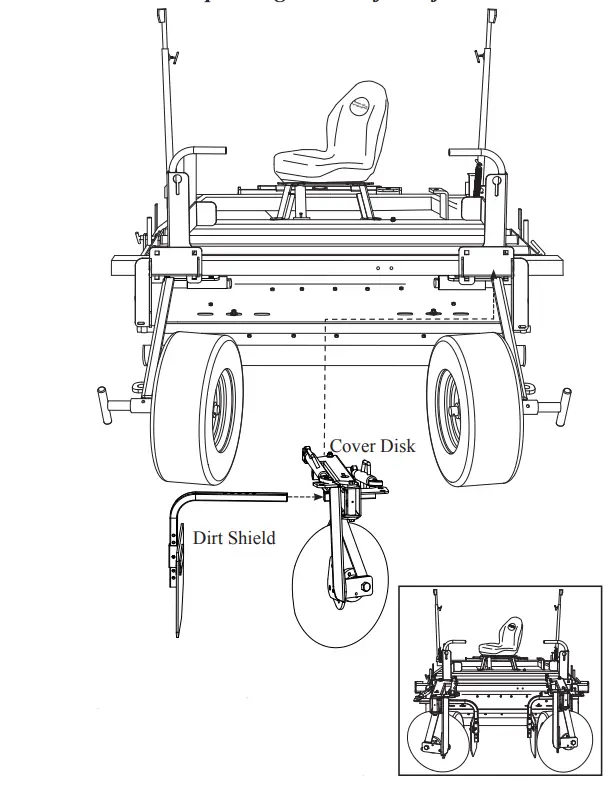

Install disk arm assembly as shown by mounting on the bracket with bolt & nut. Install dirt shield by sliding end through tubing and snapping the pin in place.
Installing Drip Tape and Plastic
Drip Tape: Remove plate with locking clamp(A). Slide drip roll onto rod, press plate(A) tight against roll and tighten tee-handle on clamp. Feed drip tape through swing arm guide and stationary guide(B) then into down pipe(C).
Note: Turn drip emitters up toward plastic for less clogging, and to avoid damaging drip tape with the press pan, adjust down pipe about 1- 2” below the plastic mulch. Also make sure drip roll is compressed firmly between plates for positive braking effect.

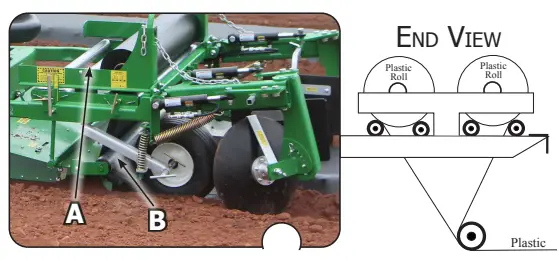

Plastic: Place plastic rolls on top of rollers(A). Pull end of plastic down in between rollers and underneath bottom roller(B). Secure plastic and drip tape at end of row. Only feed from one roll at a time.

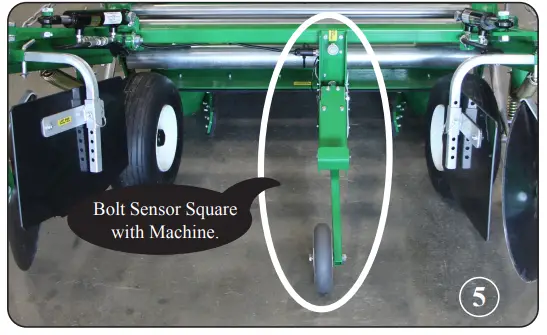

Tractor Hook-Up

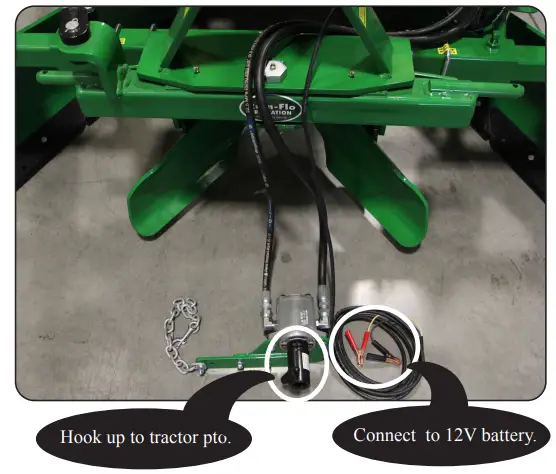

Note: Small 12V battery mounted on machine will also work.
