Crem Ex3 Wooden And Aluminium Cover Kit Instruction Manual

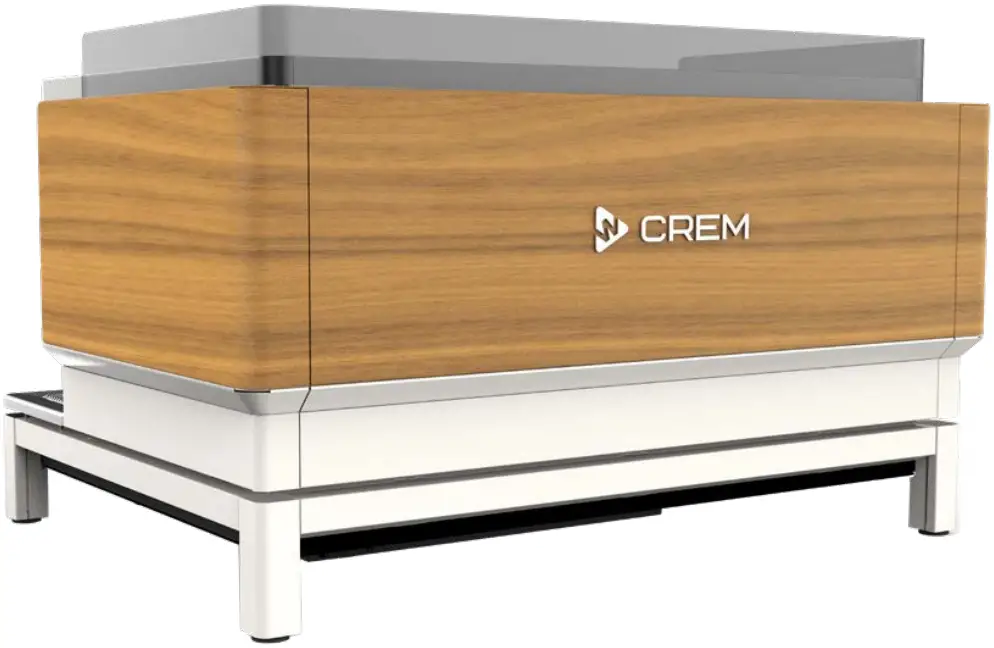

CREM EX3 Wooden and Aluminium Cover Kit Instruction Manual

Installations Instruction

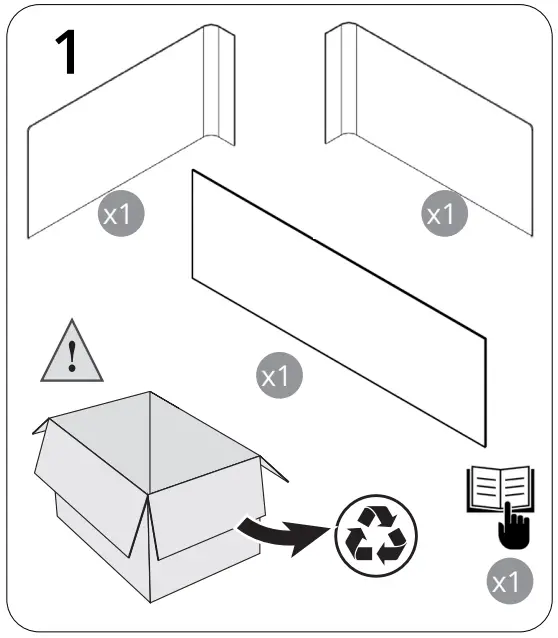

1. Take the parts out of the box.

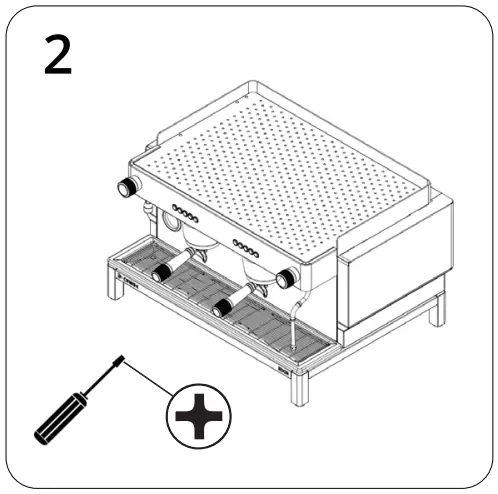

2. Prepare a spacious and clean area to work. Screwdriver Philips will be needed.

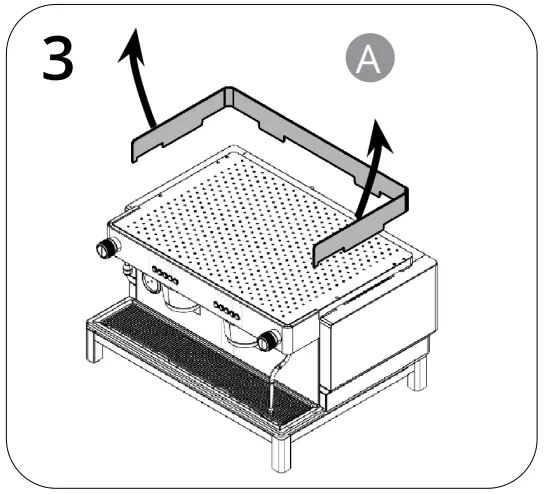

3. Cup tray fence: Pull up the cup tray fence (A). Once you have pulled it up, set it aside.

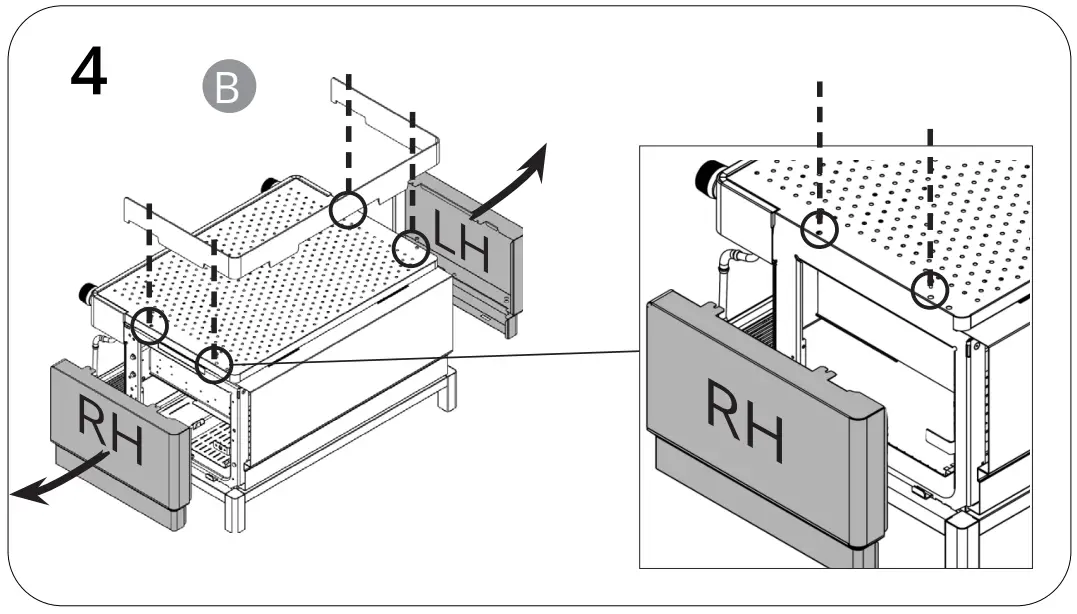

4. Machine side panels: Loose the four screws marked (B). Side panels should be removed easily.

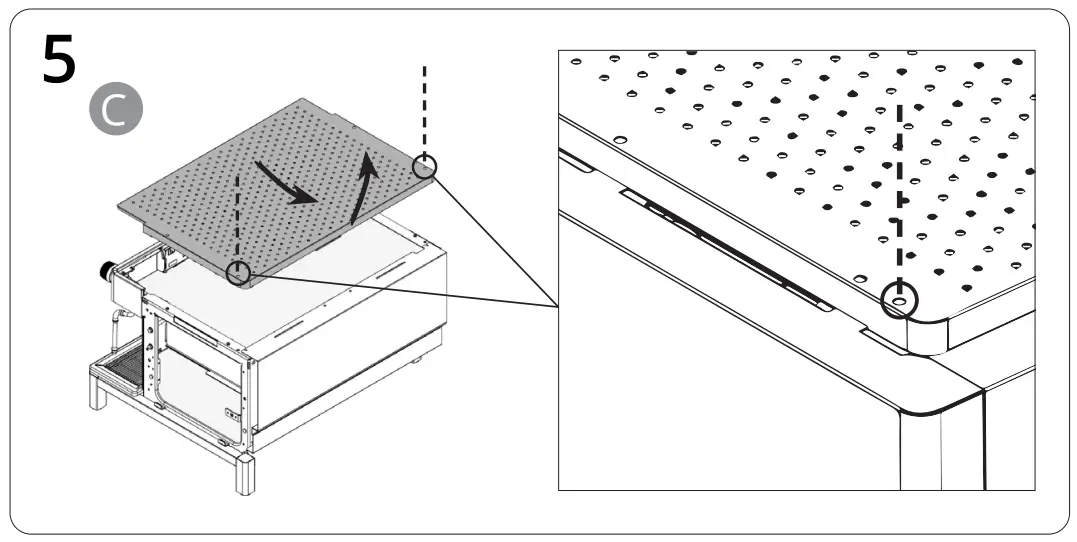

5. Top panel: Loose the two screws marked (C). Push the panel in the arrow direction (C) (horizontally, and then, upwards).

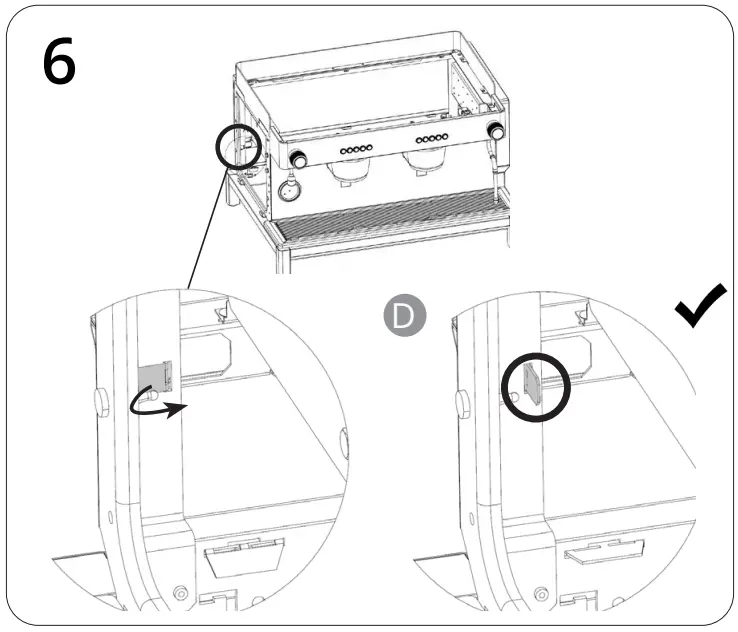

6. Rear panel: Turn 90º degrees the metal flexible tab marked (D). Repeat for both sides.

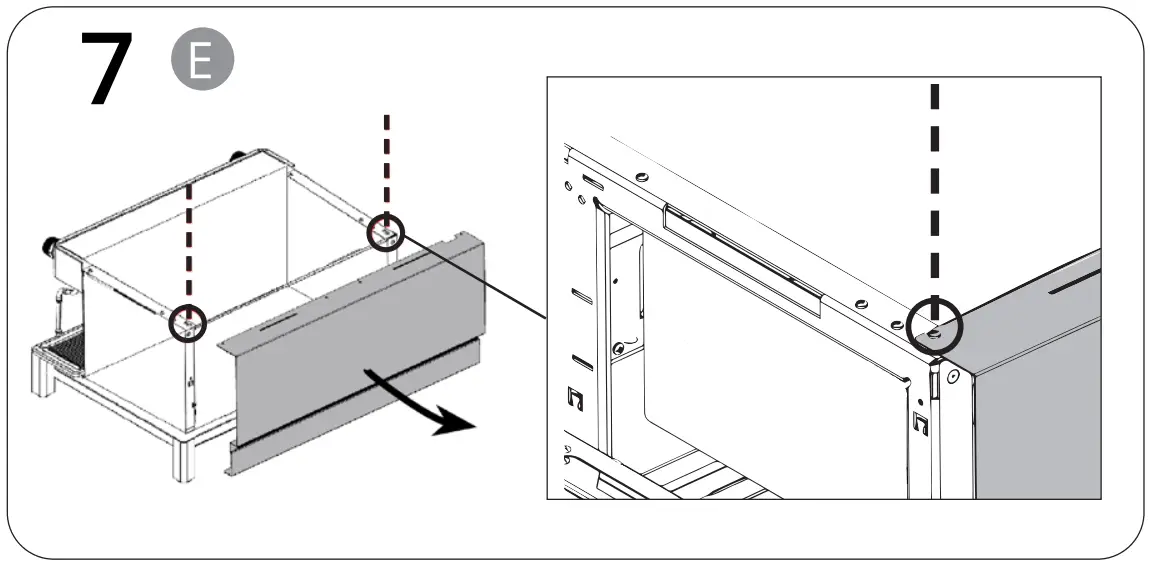

7. Loose the two screws marked (E). Rear panel should be removed easily.

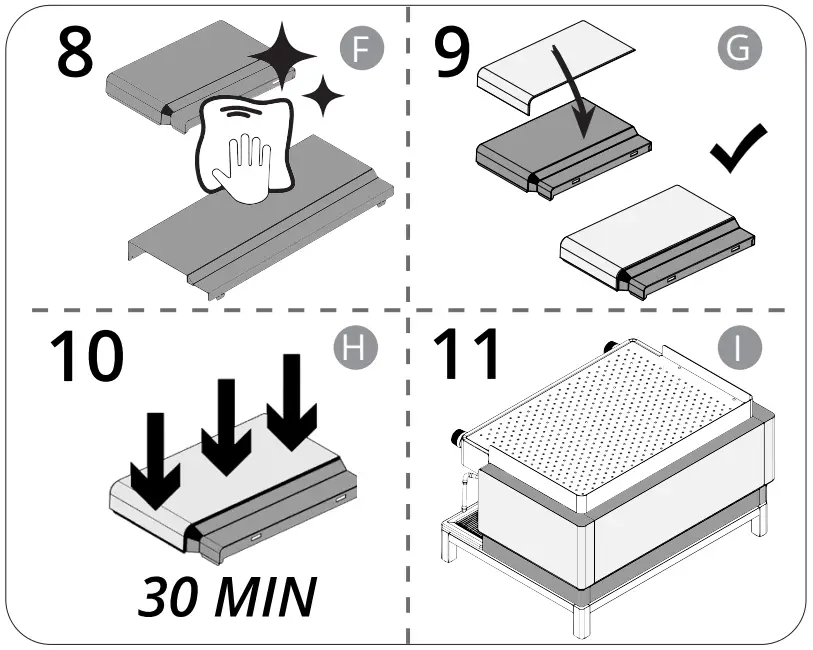

8. Clean contact surfaces of the machine removed panels with alcohol. (F)
   • pro tip: once you have cleaned the panels, heat them with a hair dryer or heat gun.
9. Place the cover panels in the correct position. Ensure that the parts are aligned on the top. (G)
10. Make pressure on the cover panels for 30 minutes. Be careful not to scratch them. (H)

11. Assembly the panels (reverse steps from 7 to 3). (I)
