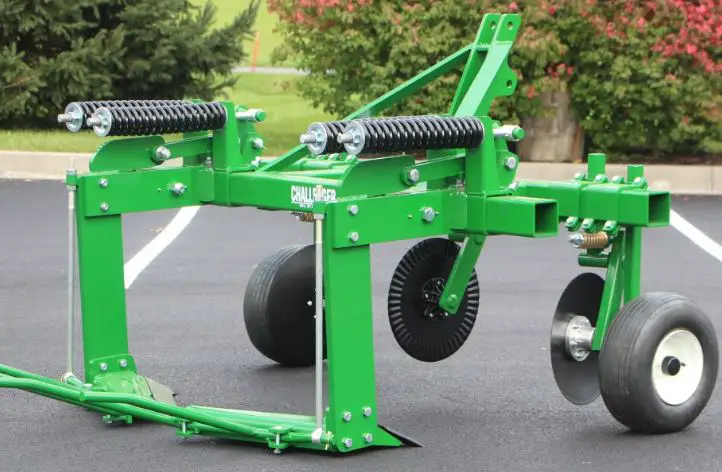

Rain-Flo IRRIGATION 2370 Flat Bed Plastic Mulch Layer
Assembly Instructions

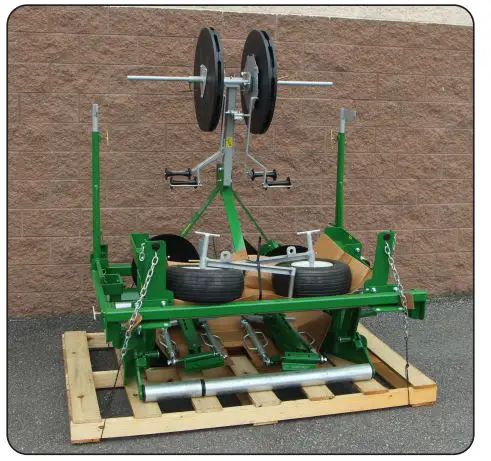

Unpackage & Count Parts/Assemblies
Standard Parts Shipped with Equipment:

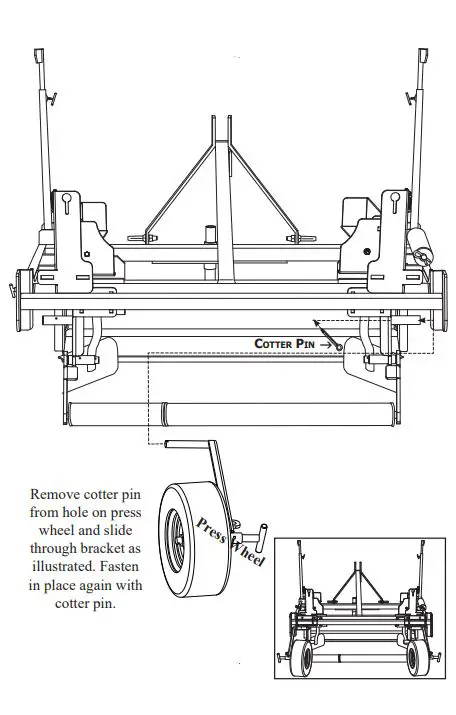

Press Wheels
See Operating Manuel for adjustments.
Rear Cover Disks
See Operating Manuel for adjustments.
Tractor Hook-Up

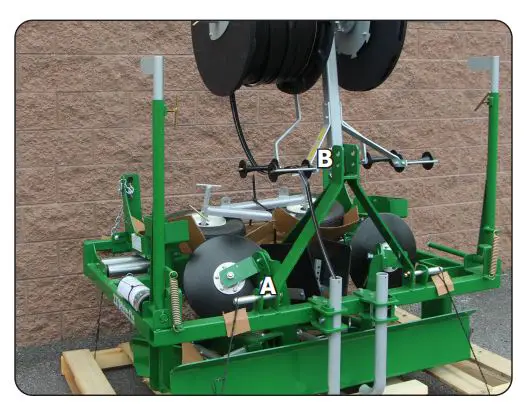

The Model 2370 has Category I and II lift pins(A) on a 3-point hitch. Hook up a 3-point top link to the top of the A-frame(B) and adjust the top link to the level machine.
INSTALLATION
Installing Drip Tape Roll
See Operating Manuel for Adjustment

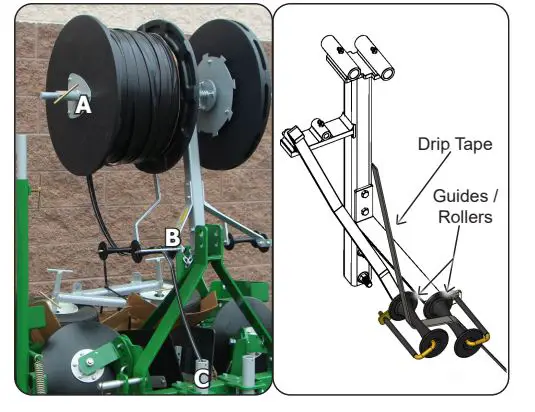

Drip Tape: Remove the plate with a locking clamp(A). Slide drip rolls onto the rod, press plate(A) tight against the roll, and tighten the tee handle on the clamp. Feed drip tape through swing arm guide and stationary guide(B) (See sketch) then into the down pipe(C).
Note; Turn drip emitters up toward plastic for less clogging, and make sure drip roll is compressed firmly between plates, for a positive braking effect.
Installing Plastic Rolls
See Operating Manuel For Adjustment
Adjust roll holders(A) to your plastic roll widths (see Operating Manuel) and lay plastic rolls on top of rollers(B). Pull the plastic end down between the two rollers and underneath the bottom roller(C). Secure plastic and drip tape at end of the row. Only feed from one plastic roll at a time.
2021 Edition
