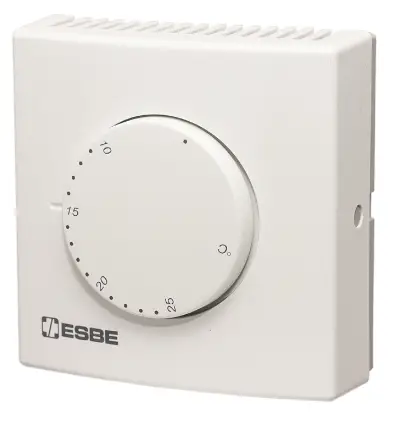

ESBE TMA115 Room Thermostat
APPLICATION
The ESBE series TMA110 is a range of ON/OFF electromechanical room thermostats for use in heating applications. The thermostats can be connected to 2-point or spring return actuator, a circulation pump or directly to a boiler.
VERSIONS
The series consist of 2 different versions:
- TMA115 is a thermostat for use in heating application. The regulating temperature range is between 8°C and 30°C and is set by the knob. A pin stop system can limit the set-point range. The contact rating is 16(2,5)A@250V AC.
- TMA116 is a thermostat for use in heating application with an ON/OFF switch and light indication. The regulating temperature range is between 8°C and 30°C and is set by the knob. A pin stop system can limit the set-point range. The light is on when the relay is active and must be powered with 230V AC. The contact rating is 10(1,5)A@250V AC.

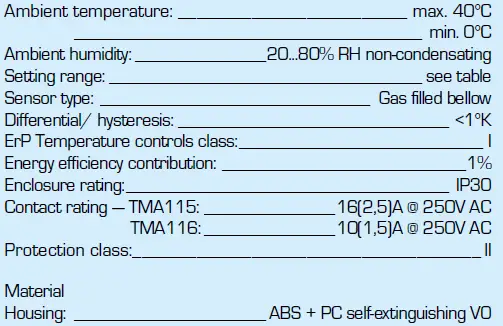

TECHNICAL DATA
SUITABLE ESBE ACTUATORS
|
Series | Control signal | ARA600 | 90 | ARC300 | ARD100 | ARD200 | ALG400 | VZC/VZD | MBA100 | ZRS100 |
| TMA115, TMA116 | 2-point | ARA6x5, ARA6x6, ARA6x7, ARA6x8 | M97, M98 | ARC361, ARC363 | ARD155, ARD157 | ARD255, ARD257 | ALG434, ALG436 | • | • | • |

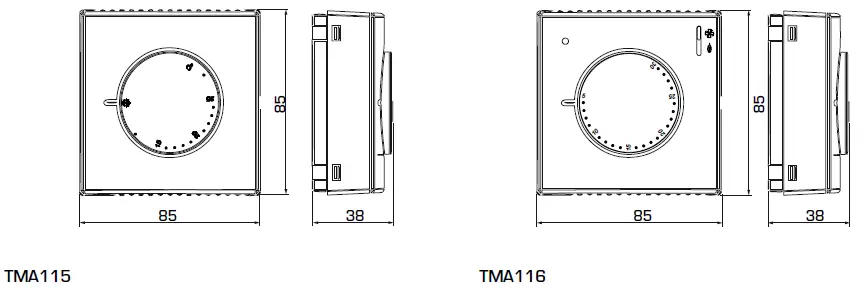

DIMENSIONS
| Art. No. | Reference | Application | Voltage | Contact rating | Setting range | Weight [kg] | Note |
| 18000500 | TMA115 | Heating | – | 16(2,5)A@250V AC | 5–30°C | 0,11 | |
| 18000600 | TMA116 | – | 10(1,5)A@250V AC | 0,12 | ON/OFF switch |

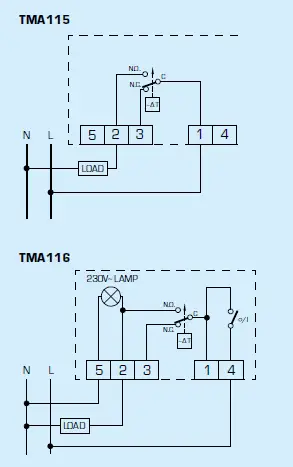

WIRING
The wirings are typical examples of application; for further information, please check User instruction for all possibilities

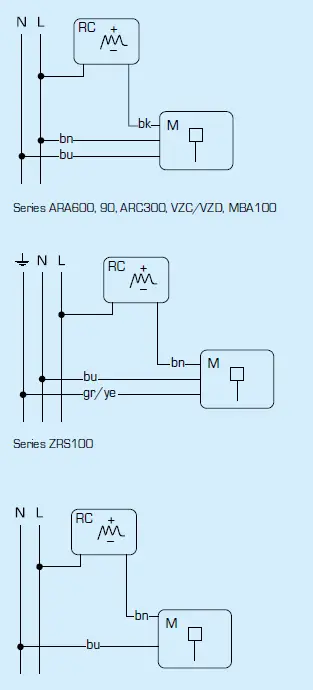

ELECTRICAL CONNECTION TO ESBE ACTUATORS
