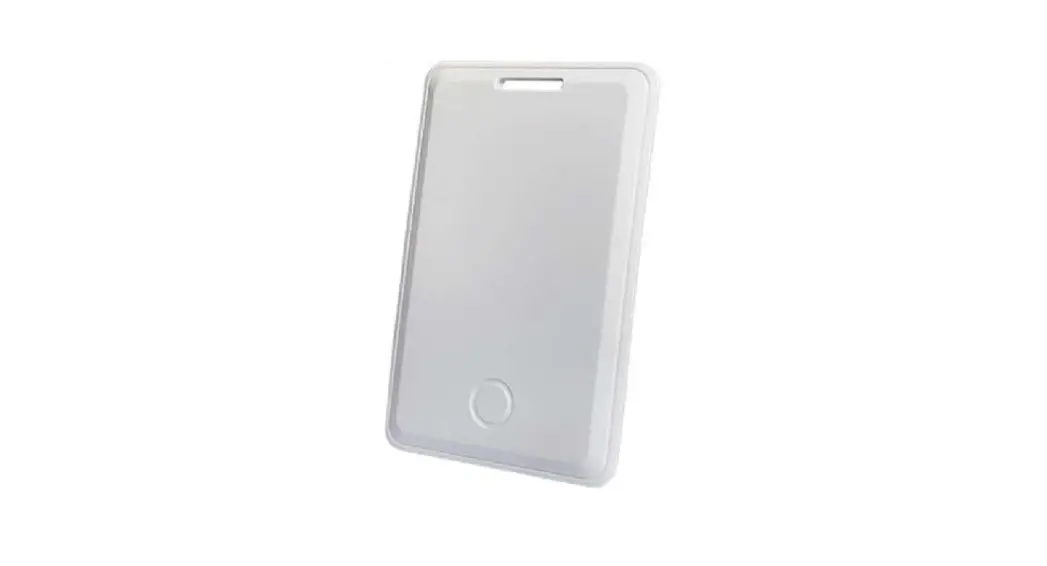

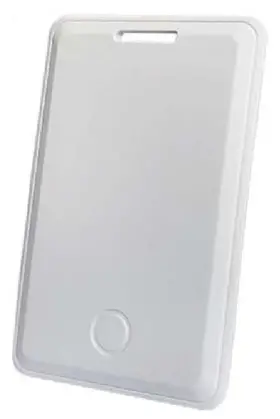

PC045N Beacon
Credit Card Size Beacon
More than 3.5 years battery life Waterproof IP67 iBeacon,
Description
PC045N Beacon is a portable Beacon Badge with ultra-low power chipset Nordic
NRF52 series and BLE 5.0 technology.
It is in credit card size and can be easily hung on a lanyard. PC045N Beacon is IP67 waterproof. It has a very strong signal, it is designed for personnel management, commercial advertising, and indoor location-based service.
PC045N Beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals.
Beacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.
Specification
| Size | 86mm*56mm*4.6mm | BLE version | BLE5.0 |
| Material | ABS | Protocol | iBeacon&Eddystone |
| Color | White(Other colors can be customized) | OTA | supported |
| Weight | 20g (with battery) | Button | 1 button |
| Battery | Li-polymer battery (nonreplaceable) | LED | 1 LED |
| Battery Life | 3.5 years (Base on broadcast interval 1s and Tx power 0dBm) | Sensor | Acceleration sensor NFC (optional) |
| Accessory | N/A | Buzzer | N/A |
| Waterproof | IP67 | Working temperature | -40℃~+70℃ |
| Chipset | Noridc nRF528 series | Storage temperature | 10℃~+25℃ ≤65%RH |
Features
Bluetooth Low Energy 4.0/5.0
Ultra-low power consumption chipset nRF528 series
Logo and color customizable
Provide with your own configuration

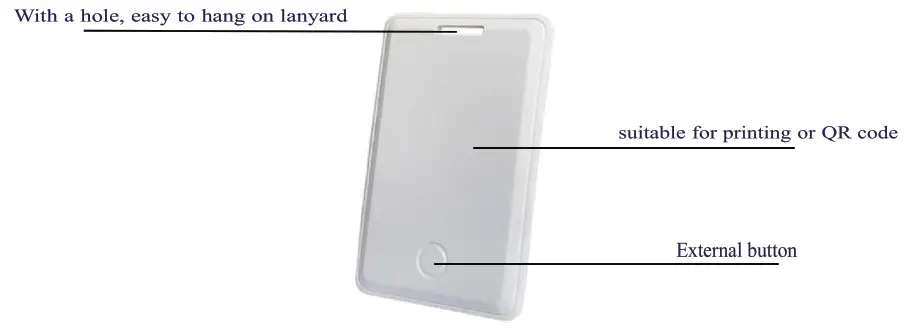

Product Details
Compatibility
Supported iOS 8.0+ and Android 4.3+ system.
Compatible with Apple iBeacon standard.
Compatible with all Bluetooth Low Energy 4.0/5.0 devices.
High-quality battery
Li-Polymer battery, the battery is not replaceable.
Easy to get the real-time battery level notification.
Configurable Parameters
UUID, Major, Minor, Device Name, Device ID, Password, Advertising Interval, TxPower etc.
iOS and Android Configuration APP.
Transmission Power Levels
Adjustable grades.
Transmission power range:-40dBm to +4dBm.
Long Range
Up to 100 meters in the open space; The range depends on the environment.
Security
16 Bytes (Lock/Unlock parameters).
Connection Mode
Advertising mode, non-connectable;
Configuration mode, connectable.
OEM Service
Logo and device color customizable;
Provided with your own configuration (with MOQ).
Firmware Update
Supported update via Over-The-Air (OTA)
Reserved J-Link port on the board for programming.
Additional optional sensors are available
We can also provide users with the same type of products with a 3-axis accelerometer according to customers’ needs.
Configurable Parameters
| Item | Default setting | Remark |
| Device Name | Pbeacon | |
| Adv Interval | 1000ms | Configurable range: 100~10000ms |
| Tx Power | -59dBm | Configurable range:40dBm~4dBm |
| Measure Power | 0dBm | RSSI@1m |
| Connectable Mode | Yes | ‘Yes’ means connectable, ‘No’ means unconnectable |
| Beacon Type | iBeacon | |
| UUID | EC555641-0EB3-4764- AC96-65D9AA07D5A2 | |
| Major | 47 | |
| Minor | 1 |
Chapter 5 Contact Information
- Tel: +86-755-33190846/33190847/33190848
- E-mail: Technical support: [email protected]
Sales contact: [email protected] - Fax: +86-755-25616057
- Website: http://www.embest-tech.com/
- Address: Tower B 4/F, Shanshui Building, NanshanYungu Innovation Industry Park, Liuxian
Ave.No.4093,Nanshan District, Shenzhen, Guangdong, China
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
ID Statement
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B).
