Card Beacon
DS-Beacon-05 A/B
User Manual
| Product name | Card iBeacon |
| Product model | DS-Beacon-05 A/B |
| Versions | V1.0 |
| Release time | 2020/11/9 |
Version information
| Revise | Revised proposal | Data | Comment |
| V1.0 | Initial release | ||
Product Introduction
The card DS-Beacon-05A/B developed by DEASINO Technology supports acceleration sensor selection, multiple RFID(DS-Beacon-05B), a button switch, and an indicator light. The product uses iBeacon/Eddystone broadcast by default and supports multi-channel broadcast. Each channel can customize broadcast power, broadcast interval, channel parameters, and configurable broadcast trigger mode (acceleration/double click/triple click). The shell of the product is processed by ultrasonic welding and supports IP65 waterproof and dustproof. IC card appearance, key operation, easy to carry.

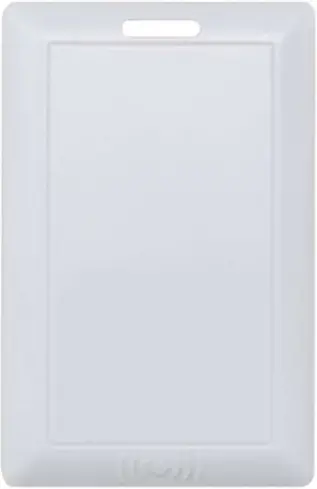

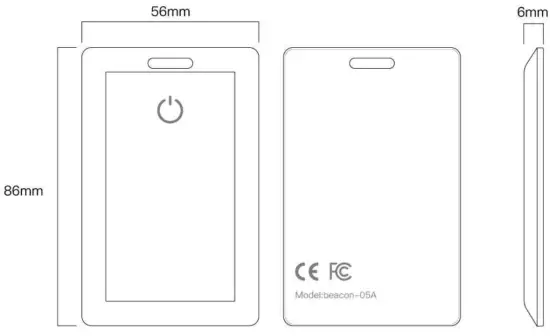

Product appearance drawing
Product Features
- Support iBeacon/Eddystone Protocol.
- Use nRF52 Series Chip.
- The broadcasting distance can reach 100 M.
- Switching function, Low voltage alarm function, Support Accelerometer.
- Support 13.56MHz RFID（Only DS-Beacon-05B).
- IP65 waterproof and dustproof.

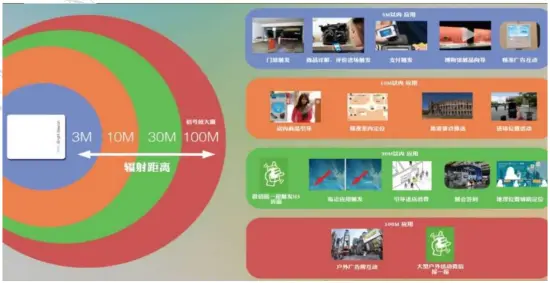

Application Range
Asset tracking, personnel tracking, etc,
For example:
Indoor positioning of shopping malls, airports, and other large public places; Online explanation of tourist attractions, museums, etc., Check-in for exhibitions, forums, and offices; Location-based real-time message push, such as live information, conference process sharing, etc., Audience interaction such as concerts and large-scale events.
Physical Property
| Model | DS-Beacon-05A/B |
| Size | 86×56×6 mm |
| Product Weight | 24 (g) |
| Battery Types | Disposable lithium-manganese dioxide batteries |
| Supply Voltage | DC 3.0 V |
| Housing Material | ABS |
| Housing Color | White |
Electrical Specification
| Quiescent Current | ≤3 uA |
| Peak Current | 5.5 mA |
| Average Current | 22.5 uA |
| Battery Model | CR2025 |
| Battery Capacity | 600 mAh |
| Operating Temperature | -20°C ~+60°C |
| Working Hours | Three years |
| Bluetooth Stack | 5.2 |
| Broadcasting Power | 0 dBm |
| Broadcast Frequency | 100ms |
| Transmission Distance | 100M in an open environment |
| Security | The default connection password is 000000 |
Technical Parameters
| Communication Protocol | Bluetooth Low Energy 5. 2 |
| Broadcasting Power | -40 +4dBm, Default 0 dBm |
| Broadcast Frequency | 100ms~10s, Default 1000ms |
| Broadcasting Distance | About 100M (in open environment) |
| Security | Support password modification parameters、Restart and unconnected mode、Support app shutdown、Anti malicious connection function |
| RFID Sensing Distance | ＞30mm（Desktop card reader） |
Default Parameters
- iBeacon Program default parameters
Parameter Name Default
UUID Device ID 184f2020-1013-44C3-87A5-F6D0BD9C5D00 Major Major 0 Minor Minor 1 Measured power Power Adjustment -59dBm Transmission Power Transmitted Power 0dBm Change Password Change Password 000000 (only support for ASCII characters) Broadcasting Interval Broadcasting period 500ms iBeacon Name Device Name 3 characters, 05A/B Connection Mode Connection mode Yes (Connectable mode) No (Unconnectable mode) Soft Reboot Software reset 000000 (Same as password) Battery Service Battery Level Battery icon display, real-time detection, full charge is 100% - DS-Beacon-05A/B Program default parameters.
Frame category
Frame information Frame content（Default value） Frame configuration Default value
iBeacon
UUID 184f2020-1013-44C3-87A5-F6D0BD9C5D00 Broadcast interval 1000ms Major 0 Calibration distance -59dBm （open） Minor 1 Broadcast power 0dBm UID Name Space ID Random Broadcast interval 1000ms Instance ID Random Calibration distance -24dBm （open） Broadcast power 0dBm URL URL Broadcast interval 1000ms http://www.deasino.com/ Calibration distance -24 dBm （open） Broadcast power 0dBm TLM Battery Level mV Built-in system Broadcast interval 1000ms Uptime Built-in system Calibration distance -24dBm （open） PDU Packets Built-in system Broadcast power 0dBm INFO Device ID Plus Broadcast interval 1000ms Battery Level % Built-in system Calibration distance -24dBm （open） MAC Address Distribution plant Broadcast power -8dBm Sensor ACC Sensor data Broadcast interval / Calibration distance / Password 000000 (default) Connection mode 1Connectable
App usage and support devices

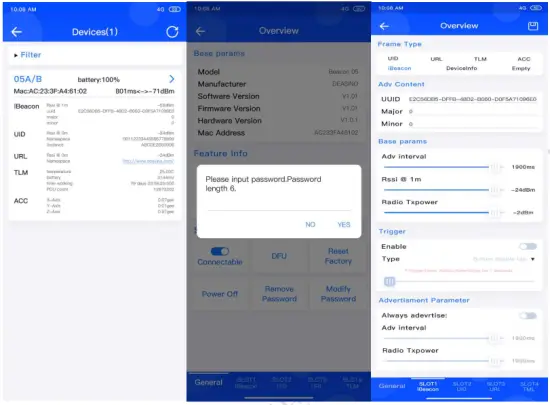

- App usage,Bluetooth scanning->Enter password connection->Configuration information.
- Support devices.
Support equipment system Support equipment model
IOS 7.0 and above
iPhone 4S, iPhone 5/5C/5s, iPhone6/6Plus/6S/6SPlus, iPhone 7/7Plus, iPad mini/mini2/4/Air/Pro Android 4.3 and above Samsung S4/S5/S6/S7, Note 3/4/5… Xiaomi M3/4/5…
Huawei P7/8/9, Honor6/7/8…
Bluetooth 4.0 and Android 4.3 or above are supported
Functional Description
- On/off function: long press for 3 seconds, startup succeeds, blue light flashes 3 times; Under the power-on state, hold down for three seconds and the blue light will flash five times. During the blue light flashing, click the button, the light will be on for one second and the power off will be.
- In the power-on state, the functions of a single click, double click, and three-click can be customized, and the default is to trigger the broadcast to close.
- Connected to Bluetooth successfully, the LED flashes twice; Disconnect Bluetooth, and the LED light will flash three.
- Low power prompt, double flash 3 times per minute, 10 seconds interval.
Certification information
CE Certificate number: (Application, update after completion)
FCC ID Number: 2AV9TDS-Beacon-05
Product claims
Copyright Clarify: This manual and its contents are owned by Shenzhen Deasino Technology Co., Ltd. and are protected by Chinese laws and applicable international conventions. The company has the right to change the contents of this manual according to the needs of technical development without further notice. Without the written permission and authorization of the Company, any individual or company organization shall not change or otherwise use part or all of the contents of the Manual. Any violator shall be held liable according to law.
Disclaimer: Shenzhen Deasino Technology Co., Ltd. reserves the right to interpret the differences between the manual and the actual products. The company will not be responsible for the property or personal injury caused by the customer’s abnormal operation. Please develop the corresponding products according to the technical specifications and reference design in the manual.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
WEBSITE: http://WWW.DEASINO.COM/
TEL: 0755-83418691-801
FAX: 0755-83418691-803
MAIL: [email protected]
