LA GARD 700 SERIES
QUICK START GUIDE
Drill-Deburr-Tap Template

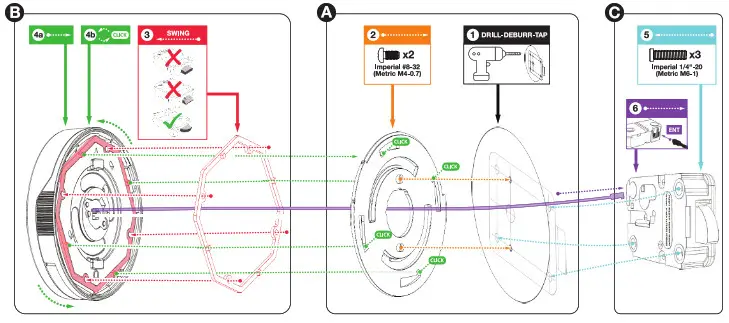

Swing Bolt Installation

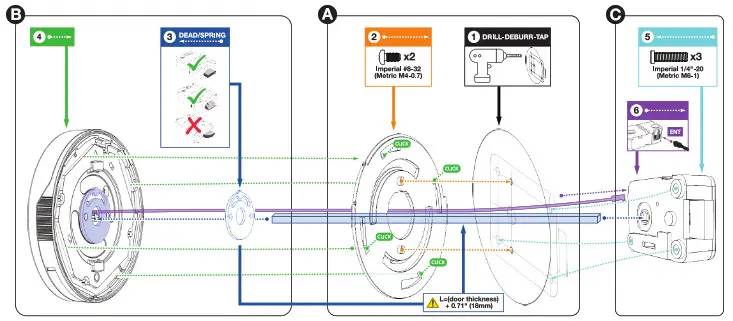

Dead Bolt & Spring Bolt Installation

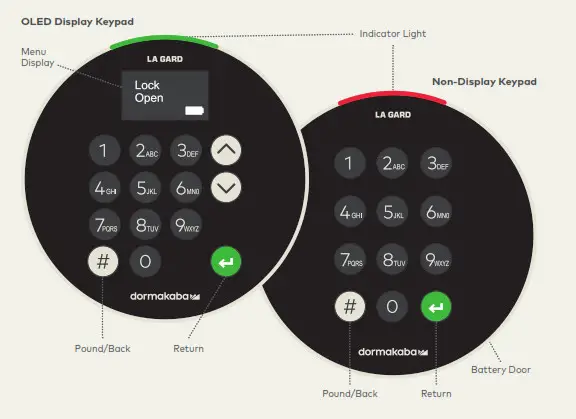

OLED DISPLAY KEYPAD

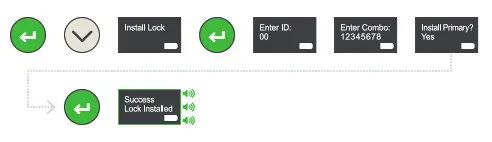

- Install Lock

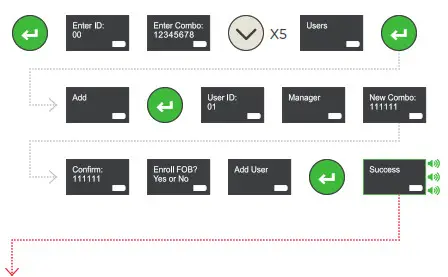

- Add User

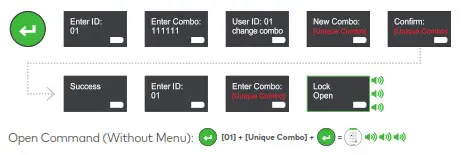

IMPORTANT: If ADD USER is not selected, the respective user will not be created or activated - Change Combo & Open
- Change Master Combo
IMPORTANT: The MASTER COMBO must be changed to ensure system security.
IMPORTANT: If ADD USER is not selected, the respective user will not be created or activated
IMPORTANT: The MASTER COMBO must be changed to ensure system security.LEGEND:
= Correct
= Incorrect
=High Beep
= Low Buzz
NON-DISPLAY KEYPAD
- Install & Add Use
Installed with Manager User [01] Enabled,
Combination= [123456], Privileges: Open
Event Code 5 and 14 Recorded to Audit - Change Combination
- Open Lock
- Change Master Combo
IMPORTANT: The MASTER COMBO must be changed to ensure system security.
Instructions
For detailed instructions go to: www.dormakaba.us
https://youtu.be/oh9LuTAZt5M
LA GARD 700 SERIES LOCK & KEYPAD INSTALLATION
https://youtube.com/playlist?list=PLbUIGrItJi1Iw8cxET0Uast9A0XssX5Y4
LA GARD 700 SERIESDISPLAY KEYPAD OPERATION GUIDES
https://qrcodes.pro/hOIhuw
LA GARD 700 SERIES SYSTEM USER GUIDE
https://youtube.com/playlist?list=PLbUIGrItJi1IxUqcP0jXmHstUwMX7pTj6
LA GARD 700 SERIES NON-DISPLAY KEYPAD
OPERATION GUIDES
BDPS.FEB2021.V1
