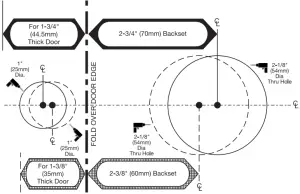

New Door Marking Template
CAUTION:
If printed from electronic file, set print scale to 1:1 Measure ruler to check scale.

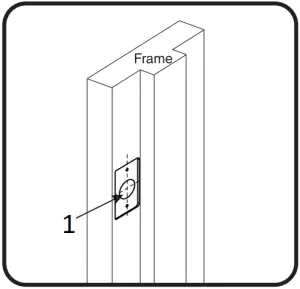

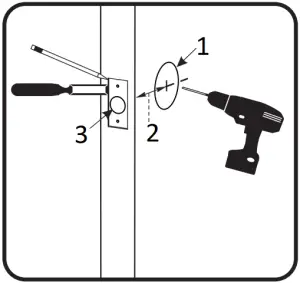

Preparing Door & Frame
Necessary for new doors or adjusting existing prep.
- 2-1/8″ (54mm) Dia.
- 2-3/8″ (60mm) or 2-3/4″ (70mm) Backset
- 1″ (25mm) Dia.
Drill holes 1/2 way through door then complete from other side to prevent splitting.
- 1″ (25mm) Dia.
1″ (25mm) Deep
ISL-1286-07
YRD-MNL-0006
Check Your Door Guide
For doors with existing hardware
CAUTION:
If printed from electronic file, set print scale to 1:1 Measure ruler to check scale.

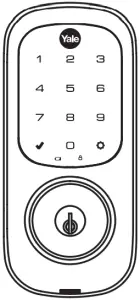

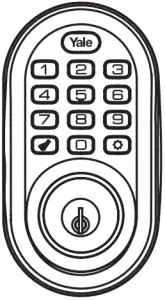

Keyed Locks
*Keyed locks are supplied with Screw Set D for 1-3/4″ to 2-1/4″ door thickness. A thin door gasket (sold separately) is required for 1-3/8″ to 1-3/4″ door thicknesses. Screw Sets B and C cannot be used.

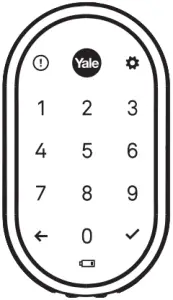

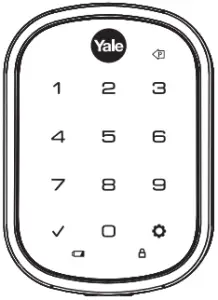

Key Free Locks
*Key Free locks are supplied with all screw sets to accommodate door thicknesses 1-3/8″ to 2-1/4″.
A. Minimum clearance between top of existing lever/knob rose (trim) and center of deadbolt hole.
* B. 1-3/8″ Door Thickness; use Screw Set B for key free locks or thin door gasket for keyed locks. Screws are tinted green.
* C. 1-3/8″ – 1-3/4″ Door Thickness; use Screw Set C for key free locks or thin door gasket for keyed locks. Screws are tinted black.
* D. 1-3/4″ – 2-1/4″ Door Thickness; use Screw Set D. Screws are tinted silver.
E. Backset; use Out of Box latch setting.
F. Backset; adjust latch setting.
G. Face Bore Diameter.
H. Edge Bore Diameter and Depth. Cross Bore Diameter.
Measure Clearance
Greater than A
Less than A (Your door is not a match for a Yale electronic lock)

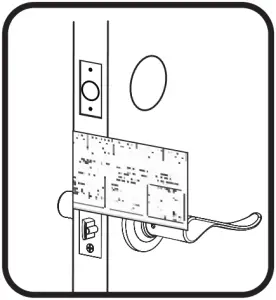

Measure Door Thickness
B, C or D Less than B (Your door is not a match for a Yale electronic lock) Greater than D (Your door is not a match for a Yale electronic lock)

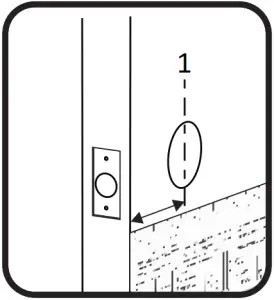

Measure Backset
Equals E or F Less than E or F (Your door is not a match for a Yale electronic lock) Greater than E or F (Your door is not a match for a Yale electronic lock)
- Backset 2-3/8″ (60mm) or 2-3/4″ (70mm)

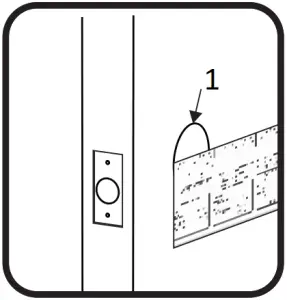

Measure Face Bore
Equals G Less than G (Adjust diameter to 2-1/8″) Greater than G (Your door is not a match for a Yale electronic lock)
- 2-1/8″ (54mm)

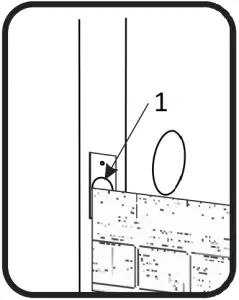

Measure Cross Bore
Equals H Less than H (Adjust diameter to 1″) Greater than H (Your door is not a match for a Yale electronic lock)
- 1″ (25mm) Dia.

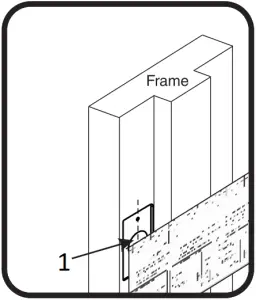

Measure Strike Pocket Diameter and Depth
Equals H Less than H (Adjust diameter and depth to 1″) Greater than H (Your door is not a match for a Yale electronic lock)
- 1″ (25mm) Dia. 1″ (25mm) Deep
