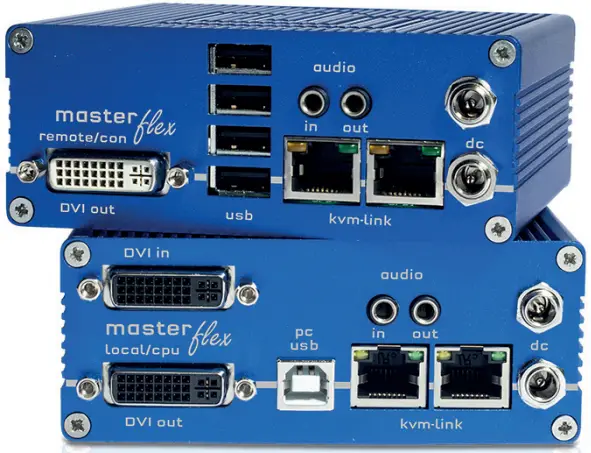

kvm-tec V130722 Masterflex single fiber Installation Guide

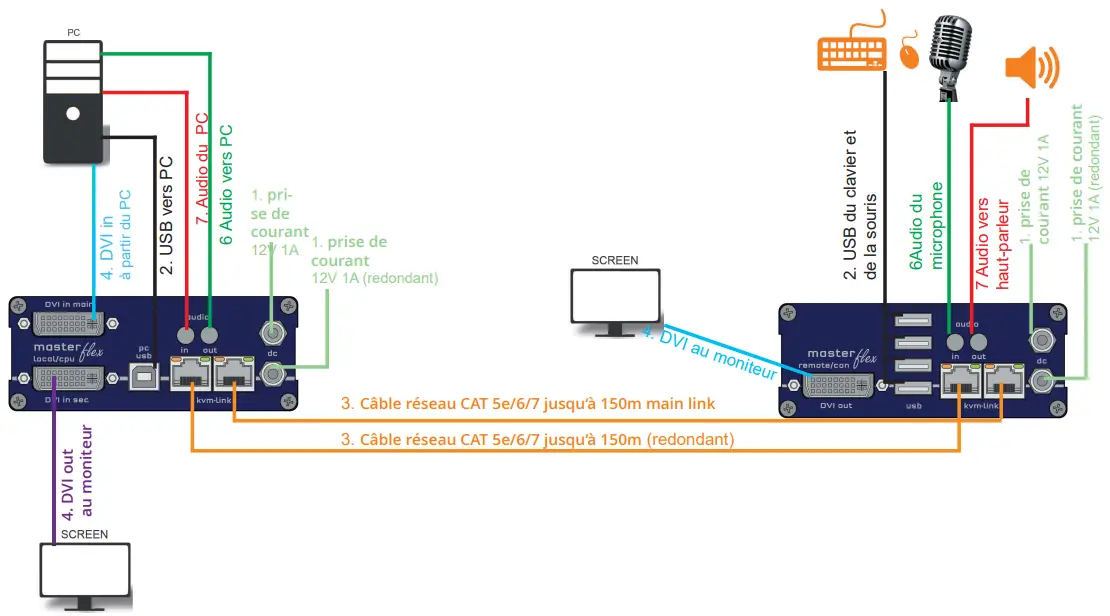

Quick Installation MASTERfl ex Single

local / CPU – remote / CON

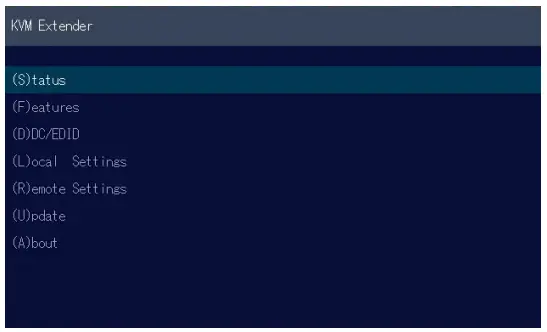

Main Menu

Menu principal Short Cuts :

S Status Overview Menu
F Features Overview
D DDC Option Option 1020 x 1080
L Local Settings
R Remote Setting
U Update Flash
A About Overview
Q Exit Quitter

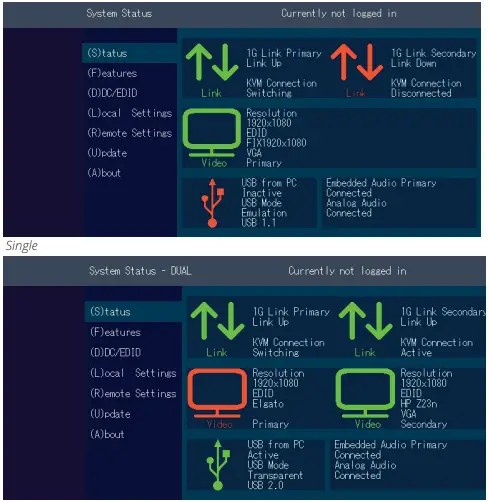

Single/Dual

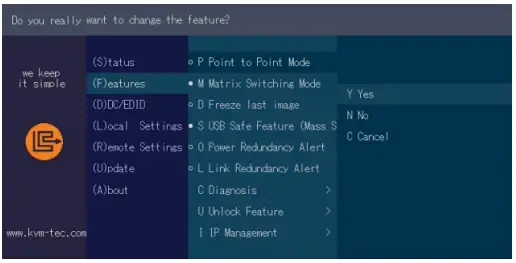

Features Menu

P Point to Point Mode Enabled/Disabled
(Point à Point s‘exclut avec Matrix mode)
M Matrix Switching Mode Disabled/Enabled
D Freeze last Image (Disabled)Disabled/Enabled
E USB Emulation Mode (Disabled ) Disabled/Enabled
S USB Save Feature (mass storage usable) Disabled/Enabled
C Diagnosis Menu de diagnostic
U Unlock Features Features activer
I IP Management IP Management

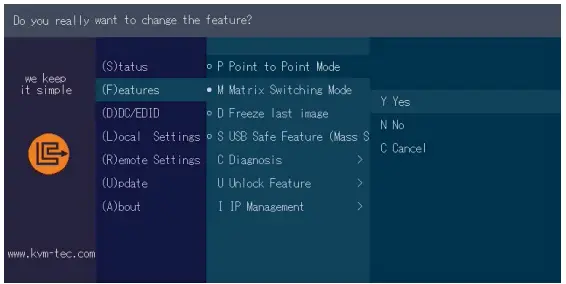

MATRIX SWITCHING MODE

KVM-TEC
Gewerbepark
Mitterfeld 1 A
2523 Tattendorf
Austria
www.kvm-tec.com

IHSE GmbH
Benzstr.1
88094 Oberteuringen
Germany
www.ihse.com

IHSE USA LLC
1 Corp.Dr.Suite
Cranburry NJ 08512
USA
www.ihseusa.com

IHSE GMBH Asia
158Kallang
Way,#07-13A
349245 Singapore
www.ihse.com

IHSE China Co.,Ltd
Room 814
Building 3, Kezhu Road
Guangzhou PRC
www.ihse.com.cn
