HDMI over Fiber Optic Extender
User Manual
Model: HE01F-4K6G
4K60Hz HDMI & USB/IR/RS232 KVM Fiber Optic Extender
Smart Cabling & Transmission Corp.
V1.0_2006171
Introduction
HE01F-4K6G is an HDMI extender that overcomes the length restriction of a standard HDMI cable using fiber optic cable. The extender can send uncompressed HDMI with USB, RS232 or bi-directional IR signal for up to 60KM.
Features
- Resolution up to 4K@60Hz 4:4:4.
- Signal extension up to 60KM over fiber optic cable.
- Supports bi-directional IR, RS232, USB transmission (Send one at a time).

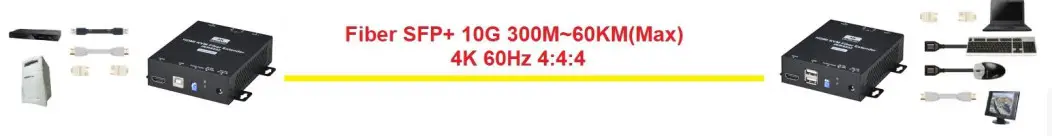

Installation View
Working Distance
Based on SFP+ 10G fiber optical module from multi-mode 300M up too single-mode 60KM (Max.)
The working distance also influences on different fiber optical cable and optical connectors.

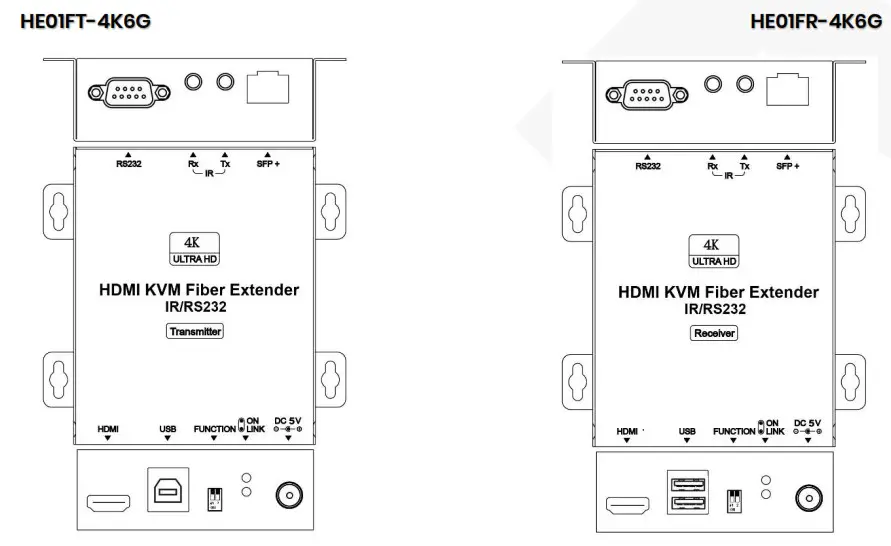

Panel View
LED Indication
| LED Color | HE01FT-4K6G | HE01FR-4K6G |
| GREEN | Power on/off | |
| BLUE | Fiber Link/Unlink | |
Dip Switch Function
| SWITCH | FUNCTION | |||||
| SW1 | ON | IR Extender Function | OFF | RS232 Extender Function | ON | USB Keyboard Mouse Extender Function |
| SW2 | OFF | ON | ON | |||
SWITCH position 1 and 2 must be as above instruction:
IR: SW1 ON (down position) + SW2 OFF (up position)
RS232: SW1 OFF (up position) + SW2 ON (down position)
USB: SW1 ON (down position) + SW2 ON (down position)
RS232 Define
| DB9(F | DB9(M) | ||
| RS232 | RS232 | ||
| Pin | Define | Pin | Define |
| Pin 2 | TX | Pin 2 | RX |
| Pin 3 | RX | Pin 3 | TX |
| Pin 5 | GND | Pin 5 | GND |
Caution
- Under HDMI 2.0 mode, recommend using a “PREMIUM certified” HDMI cable.
- IR Emitter/Receiver cable do not put too close to avoid mutual interference.
- This Device not support CEC
- The transmission distance based on 10G Fiber module 300M-60KM.
Package Include
HE01FT-4K6G Transmitter x 1
HE01FR-4K6G Receiver x 1
DC 5V 2Amp power adapter x 2
IR Emitter cable x 1
IR Receiver cable x 1
| ITEM NO. | HE01FT-4K6G | HE01FR-4K6G |
| Support | ||
| Compliance | HDMI 2.0, HDCP 2.2, 3D, HDR | |
| Max. Video Resolution | 4K@60Hz 4:4:4 18Gbps | |
| Max. Transmission Distance | 60KM over Signal-mode, 300M over Multi-mode | |
| Audio Format | LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA, ATMOS, DTS:X | |
| RS232 Baud Rate | 115200 bps/ Full Duplex | |
| IR Support | 30~60KHz, ±10°, 5M, Bi-Directional | 30~60KHz, ±55°/ 5M /Bi-Directional |
| Ports & Interfaces | ||
| Video Input | 1 x HDMI Type A | 1 x SFP 10G+ |
| Video Output | 1 x SFP 10G+ | 1 x HDMI Type A |
| RS232 Interface | 1 x DB9(Female) | 1 x DB9(Male) |
| IR Interface | 1 x 3.5mm Phone Jack | 1 x 3.5mm Phone Jack |
| USB Interface | 1 x USB Type B | 2 x USB Type A |
| Power | ||
| Power Supply | DC 5V 2A | DC 5V 2A |
| Power Consumption | 5W (Max) | 5W (Max) |
| Ambient Temperature | ||
| Operation | -10 to 45℃ | |
| Storage | -30 to 70℃ | |
| Humidity | up to 95% | |
| Physical Characteristics | ||
| Dimensions | 109.6 x 114.5 x 30mm | 109.6 x 114.5 x 30mm |
| Weight | 270g | 270g |
