Irwin 1964750 One-handed Bar Clamp User Guide

1964750 One-Handed Bar Clamp
User Guide

One-Handed Bar Clamps Accessories Quick Guide

The new IRWIN ® QUICK-GRIP ® One-Handed Bar Clamps are designed to be compatible with the new line of One-Handed Bar Clamp Accessories. The chart below outlines which accessories fit which of the newly designed clamps and which accessories can also be used with the previous generation of IRWIN ® QUICK-GRIP ® One-Handed Bar Clamps.

Accessory Selection Guide

Item #:	Accessories	Medium- Duty	Heavy- Duty	SL300	XP600
1964750	Medium-Duty Clamp Coupler
1964751	Heavy-Duty Clamp Coupler
1964752	Corner Clamp Pads
1964753	Wide Pads
1964754	Hold Down Jig
1964755	Edge Clamp
1964756	Clamp Stand
1964757	Deck Tool Kit

Assembly Instructions

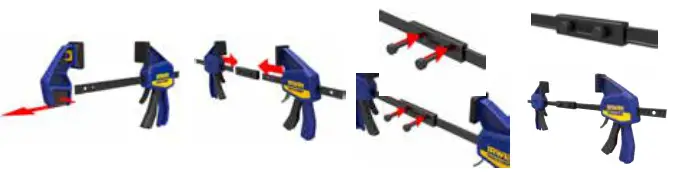

Medium-Duty and Heavy-Duty Couplers

1. Detach removable jaws from two Medium-Duty or two Heavy-Duty Clamps
2. Slide the bar into the coupler from either side
3. Use the pins to secure the bars inside the coupler on both ends

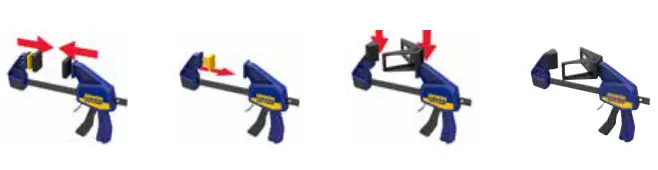

Corner Clamp

1. Remove soft pads and swivel jaws from the Medium-Duty or Heavy-Duty Clamp
2. Slide the large corner attachment down onto the handle side of the clamp until the latch engages
3. Slide a solid v-shaped soft pad onto another jaw

One-Handed Bar Clamp Accessories
Quick Reference Guide

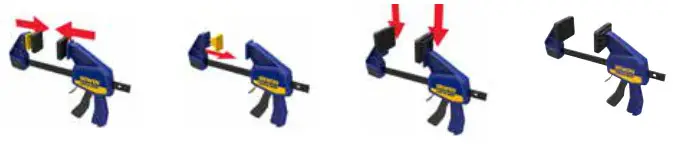

Wide Pads

1. Remove soft pads and swivel jaws from the Medium-Duty or Heavy-Duty Clamp
2. Slide wide pads onto jaws until the latch engages

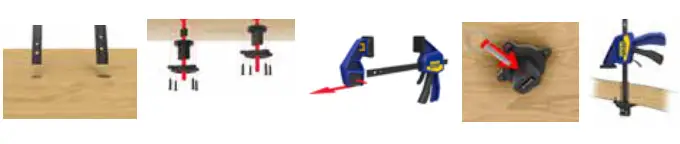

Hold Down Jig

1. Drill a 3/4″ hole for Medium-Duty Clamps or a 1″ hole for Heavy-Duty Clamps into a work table
2. Mount the bar guide and mounting base on the underside of the work table, centered around the pilot hole, and screw into place with the 4 provided screws
3. Detach the removable jaw from the clamp
4. Insert the bar into the hold-down accessory (use provided adapter for Medium-Duty Clamps) and secure it with provided pin by inserting it through the side of the accessory and through the bar of the clamp

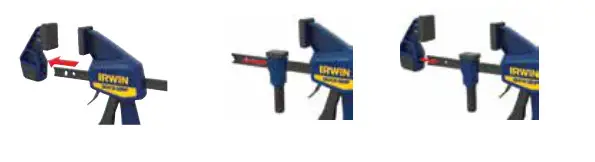

Edge Clamp

1. Detach the removable jaw from Medium-Duty Clamp
2. Slide the Edge Clamp accessory onto the bar of the clamp
3. Replace the detachable jaw of the clamp

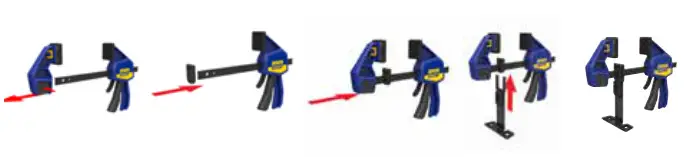

Stand

1. Detach removable jaw from Medium-Duty or Heavy-Duty Clamp
2. Slide the correct MD300 or HD600 (marked on each bar adapter) Bar Adapter onto the bar of the clamp
3. Replace the detachable jaw of the clamp
4. Install/snap the Stand assembly to the attached Bar Adapter on the clamp

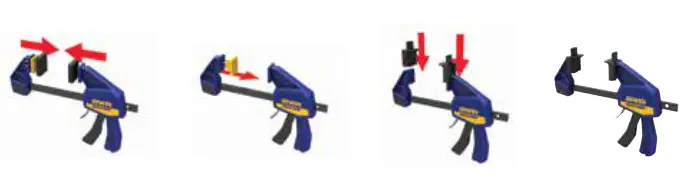

Deck Tool

1. Remove soft pads from both jaws of the Medium-Duty Clamp
2. Remove the swivel jaw from Medium-Duty Clamp
3. Slide deck tool attachments onto jaws from top until the latch engages

www.irwin.com
