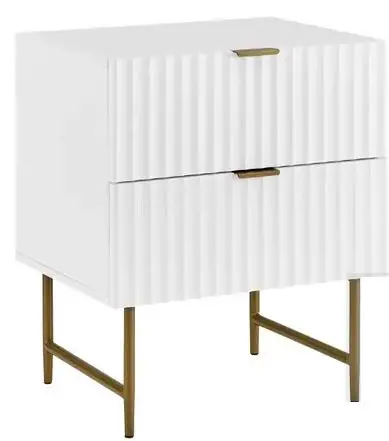

SHANGRI-LA SLNS2DREWA 2 Drawer Night Stand Edinburgh Collection

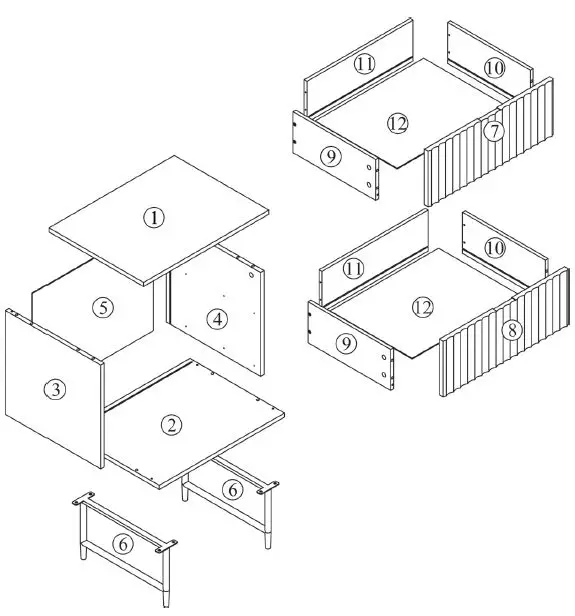

COMPONENTS
| No | Dimensions (mm) | Qty |
| 1 | 530 x 400 x 15 | 1 |
| 2 | 530 x 400 x 15 | 1 |
| 3 | 399 x 380 x 15 | 1 |
| 4 | 399 x 380 x 15 | 1 |
| 5 | 508 x 390 x 3 | 1 |
| 6 | 370 x 220 x 80 | 2 |
| 7 | 530 x 230.5 x 20 | 1 |
| 8 | 530 x 230.5 x 20 | 1 |
| 9 | 350 x 150 x 12 | 2 |
| 10 | 350 x 150 x 12 | 2 |
| 11 | 449 x 186 x 12 | 2 |
| 12 | 459 x 347 x 3 | 2 |

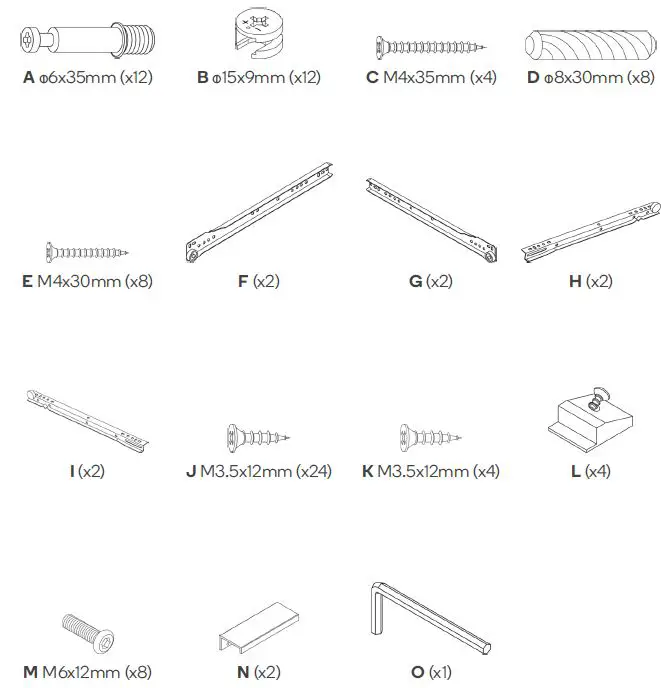

Hardware
ASSEMBLY

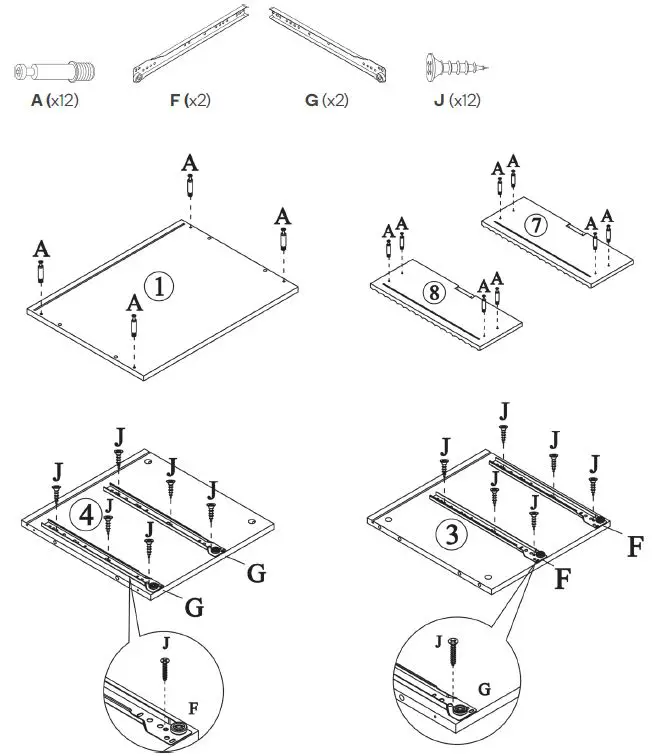

Step 1: Using a Phillips head screwdriver (not supplied), secure F and G rails to parts 3 and 4 respectively with J screws.
Insert A into parts 1, 7, and 8 as shown below.

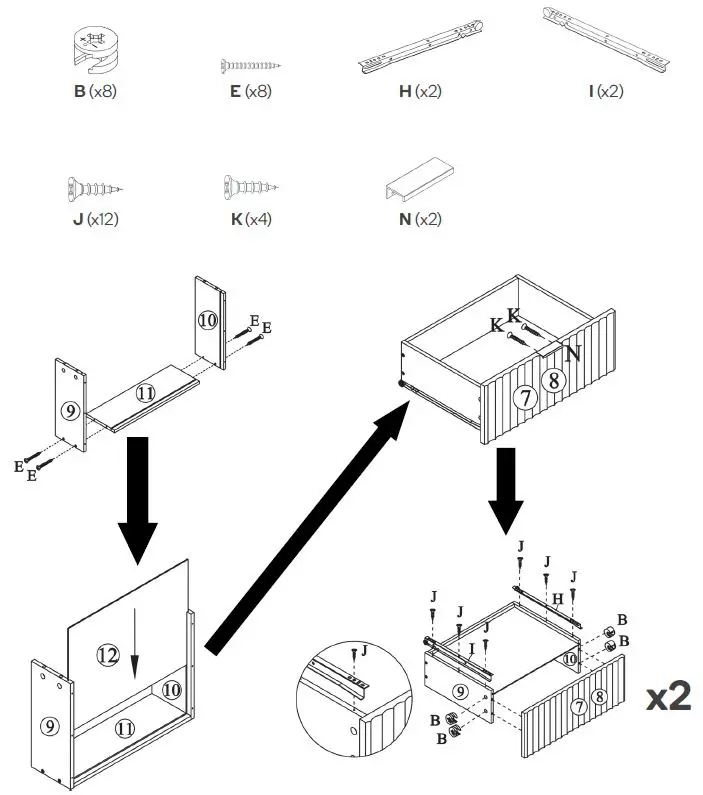

Step 2: Using a Phillips head screwdriver, secure parts 9, 10, and 11 with E screws. Slide part 12 along the grooves on parts 9, 10 and 11.
Secure H and I rails onto the assembly with J screws. Align part 7 with the assembly.
Ensuring the arrows on each B piece are pointing to the corresponding A piece, insert B pieces into parts labelled 9 and 10 then secure B to A. Attach the N handle with K screws.
Repeat the whole process using part 8 to complete two drawer assemblies.
Step 3:

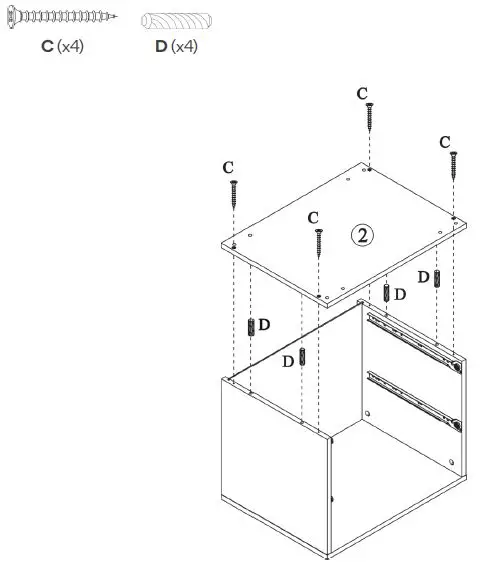

Step 4:
Step 5:
Step 6:
Step 7:
Step 8:

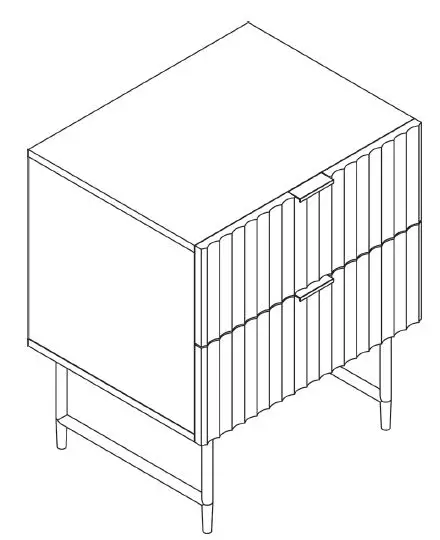

Assembly complete.
Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product,as well as any additional assistance you may require,head online to help.kogan.com
