kogan SLORLAWBDNA Shangri-La Orlando Wood

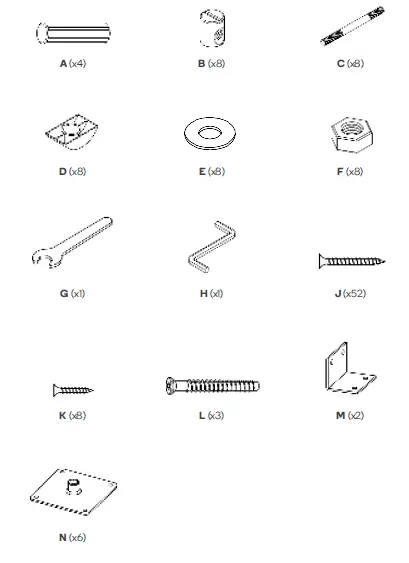

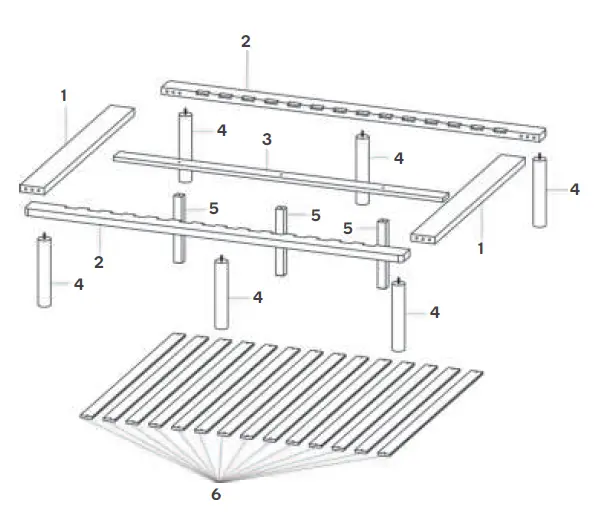

COMPONENTS
Hardware
ASSEMBLY

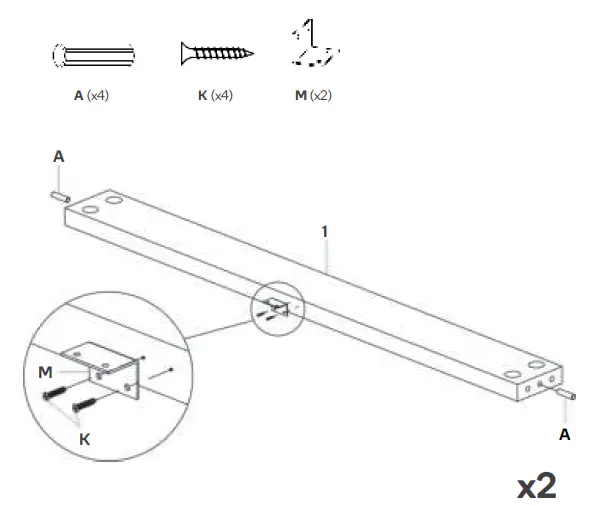

- Step 1: Align an M bracket with one part labelled 1. Using a Phillips screwdriver (not supplied), secure K screws through the holes on the M bracket. Secure A into the middle hole either side of part 1. Repeat this process with the remaining part labelled 1. This will create two end assemblies.
Note: Do not use power tools to assemble this bed as it may damage the components.

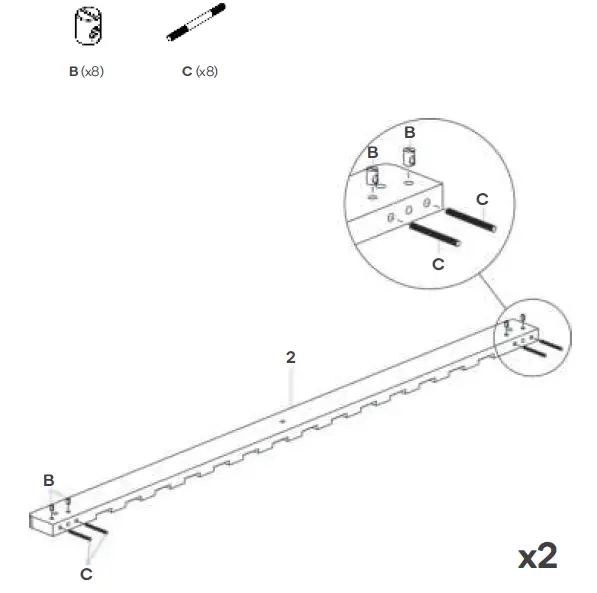

- Step 2: Ensuring the hole on B is facing outward, secure B into one part labelled 2. Insert C into B as shown below.
Repeat this process with the remaining part labelled 2. This will create two side assemblies.
- Step 3: Align the holes on end assemblies and connect them to the side assemblies. This will result in C to protrude through the holes on the top of the side assemblies.
Inside one top hole, insert D, E and F over C. Using the G wrench, tighten F to secure into place. Repeat this process with the remaining seven top holes.

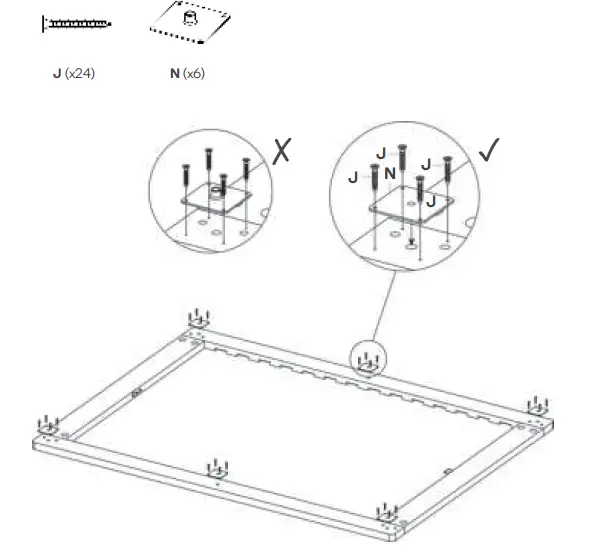

- Step 4: Ensuring N is facing down, align and insert N into the holes shown in the example below. Using a Phillips screwdriver (not supplied), secure N with J screws.

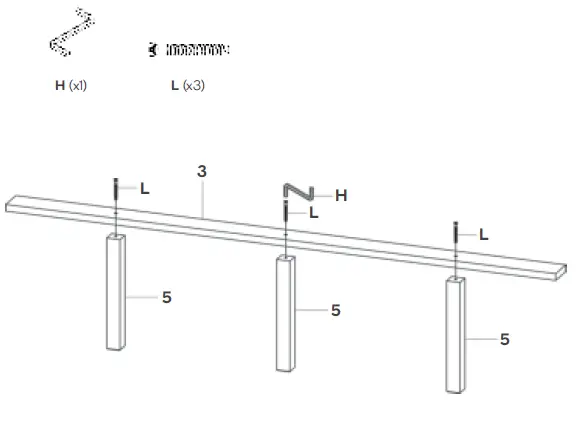

- Step 5: Align part 3 with the parts labelled 5. Using the H Allen key, secure with L screws. This will create the middle assembly.
- Step 6: Using a Phillips screwdriver (not supplied), secure the middle assembly to the end assemblies with K screws.

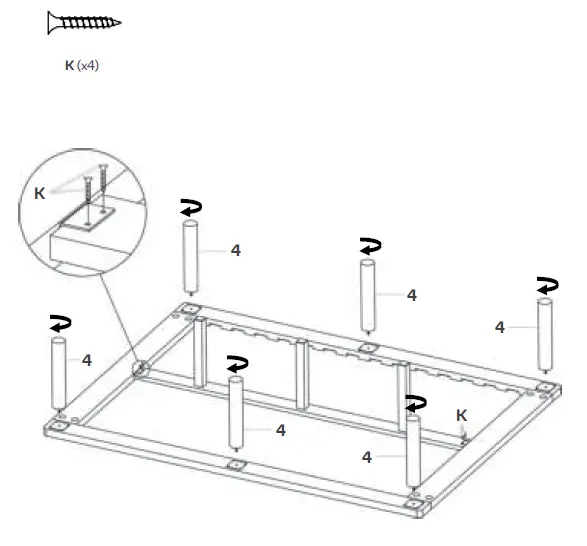

Twist and secure parts labelled 4 as shown below.

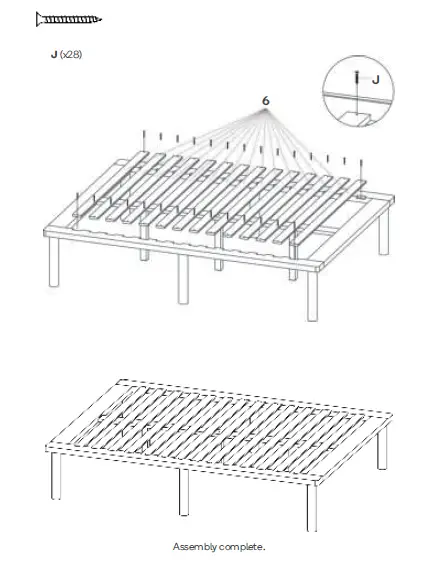

- Step 7: Using a Phillips screwdriver (not supplied), secure parts labelled 6 onto the bed with J screws.
Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
