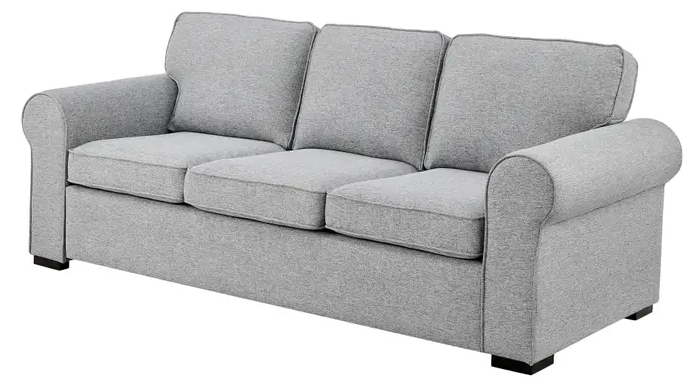

SHANGRI-LA SLHAMPTSFAA, SLHAMPTSFGA Hamptons Sofa

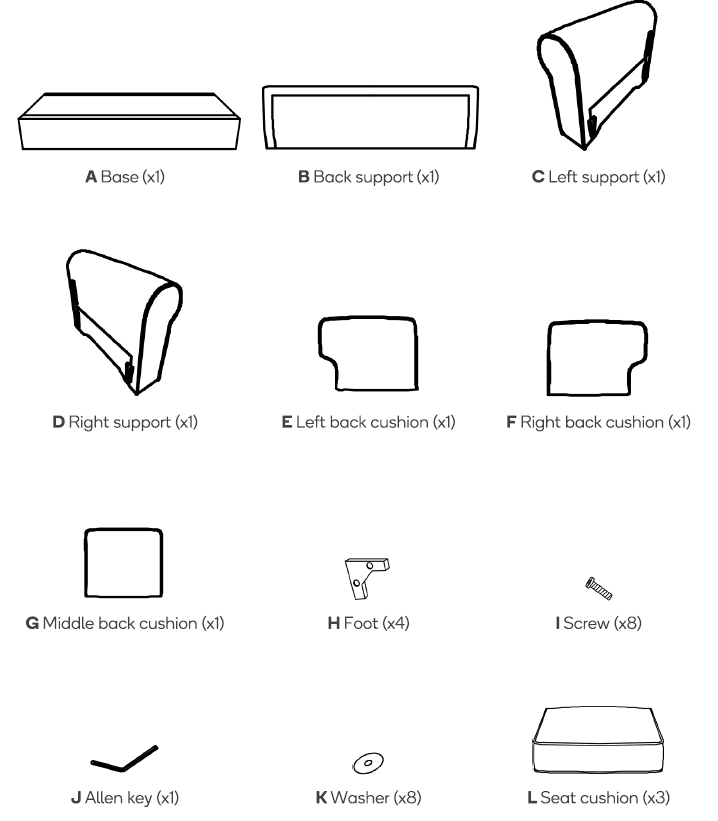

COMPONENTS
ASSEMBLY
Step 1: Align the rails on the right support (D) with the rails on the base (A). Slide the rails on the right support (D) down onto the rails on the base. Repeat this process to secure the left support (C) to the base.

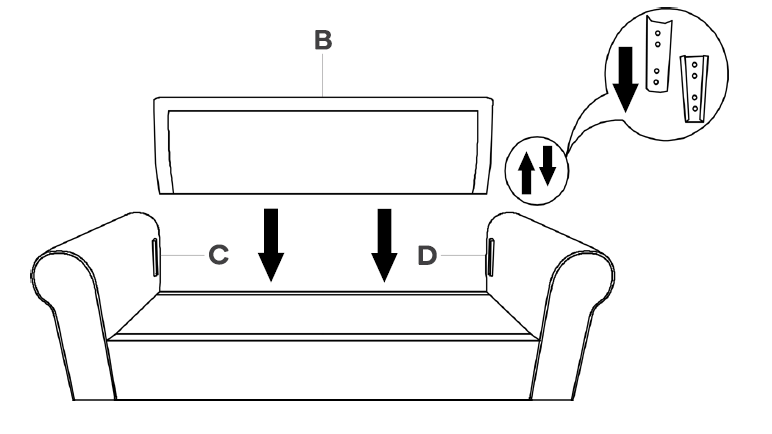

Step 2: Align the rails on the back support (B) with the rails on the left and right supports (C, D). Slide the rails on the back support (B) down onto the rails on the left and right supports (C, D). This completes the sofa frame assembly.
Step 3: Align the holes of one foot (H) onto the holes on one corner of the sofa frame assembly. Place a washer (K) over one of the aligned holes, then using the Allen key (J), secure the washer (K) with a screw (I). Repeat this process with the other aligned hole.
Repeat this process on the other corners of the sofa frame assembly to secure the remaining feet (H).

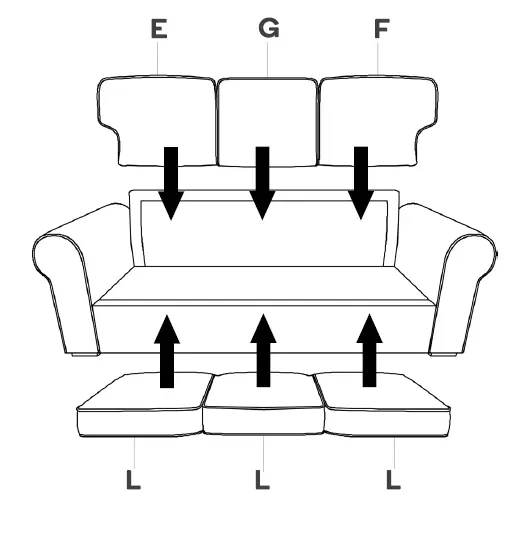

Step 4: Place the back cushions (E, F, G) and seat cushions (L) onto the sofa frame assembly.

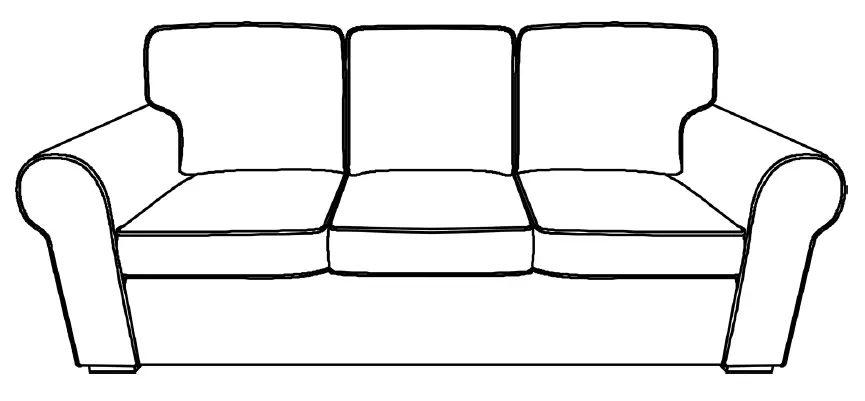

Assembly complete.
Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
