COMMAX logoDRC-4PIP Color Door Camera
User ManualCOMMAX DRC-4PIP Color Door CameraUser Manual

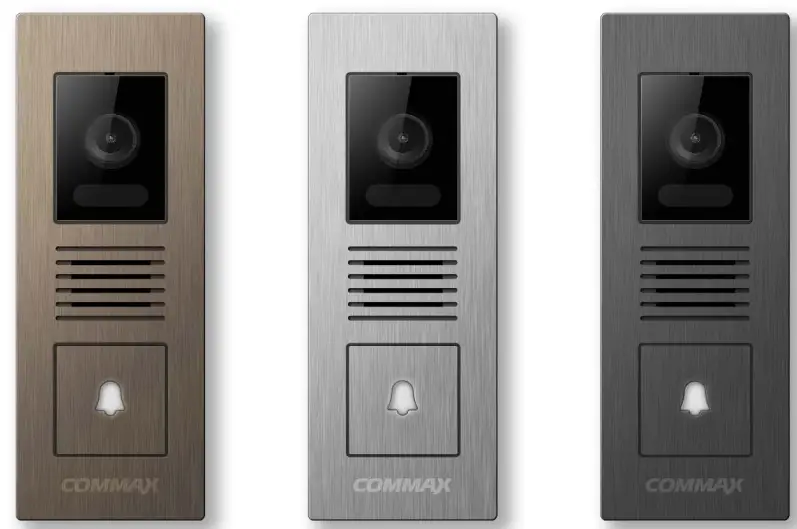

Color Door Camera DRC-4PIP
www.commax.com
commaxco.;Ltd.

DRC-4PIP Color Door Camera

  • Thank you for purchasing COMMAX products.
  • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.
  • The company is not responsible for any safety accidents caused by abnormal operation of the product.

COMMAX DRC-4PIP Color Door Camera - icon Part Names.

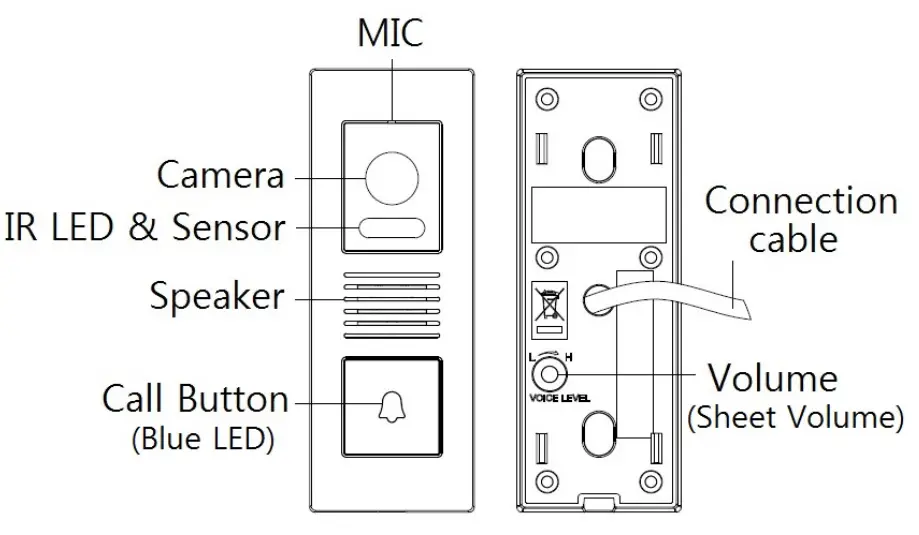

COMMAX DRC-4PIP Color Door Camera - Fig 1※ During a camera call/talk, the LED (BLUE) on the call button lights up

COMMAX DRC-4PIP Color Door Camera - icon Package contents

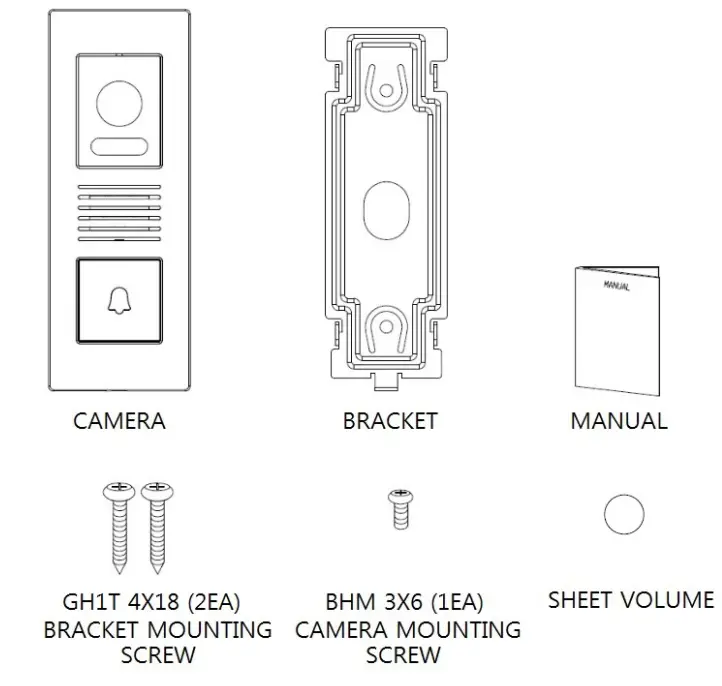

COMMAX DRC-4PIP Color Door Camera - Fig 2

COMMAX DRC-4PIP Color Door Camera - icon Wiring and Installation

COMMAX DRC-4PIP Color Door Camera - Fig 3

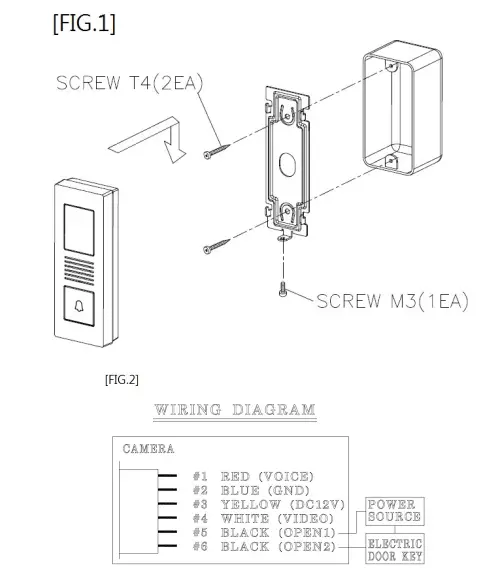

  1. Match the fix the whole in the wall and the fixing bracket [FIG.1]
  2. Match and connect monitor line as shown below [FIG.2] (#1: Voice, #2: GND, #3: DC12V, #4: Video)
  3. Adjust camera location on the wall by checking the image on monitor screen and fix its location
  4. Connect the Door Release Connection Line as shown below [FIG.2] (#5: Open1, #6: Open2)

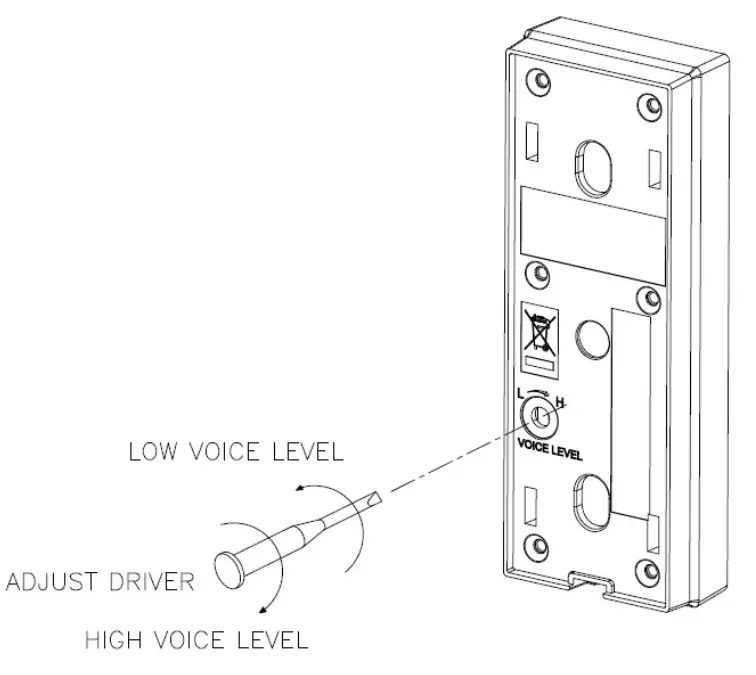

    ● You can adjust speaker volume using driver as shown below.
    ● After adjusting the volume, use the ‘SHEET VOLUME’ included in the accessory to close the hole before installing.

COMMAX DRC-4PIP Color Door Camera - Fig 4

COMMAX DRC-4PIP Color Door Camera - icon Specification

Model No.DRC-4PIP
Rated Voltage12VEGO ST1400E ST 56 Volt Lithium Ion Cordless Line Trimmer - Icon 6(Supplied from monitor)
Wiring4 wires(polarity)to a monitor
2 wires(non-polarity)to a electric door lock
Video Transmission StandardNTSC or PAL STANDARD.
Sensor TypeC-MOS (COLOR) – CVBS
TransmissionSimultaneous communication
Minimum Illumination0.1 Lux(within300mm)
LEDEmbedded IR LED(Night working)
Effective Viewing Angle136° (D)
Operating Temperature-30°C–+50°C
Dimension (mm)50(W) X 135(H) X 23(D)
Distance between a door camera and monitorDiameter(pie)Ø0.5Ø0.65Ø0.81
Distance(meter)28m50m70m115m

※ IR LED operates in low light conditions.
In this case, the image may be displayed in black and white.
※ This product can be used for door lock systems that use DC power.
(Max. switching voltage and current : 2A 30V DC)

COMMAX logo 1513-11, Sangdaewon-dong,
Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept.
: Tel.; +82-31-7393-540~550
Fax.; +82-31-745-2133
Web site : www.commax.com
Edited.2021.12.28
