Commercial Electric Pwrfx70-pc-4k-bz Powerflood X High Output Led Commercial Flood Light User Guide

Commercial Electric PWRFX70-PC-4K-BZ Powerflood X High Output LED Commercial Flood Light

THANK YOU

We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Commercial Electric .

Safety Information

IMPORTANT
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE NATIONAL ELECTRICAL CODE AND LOCAL BUILDING CODES BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.

PRECAUTIONS

• Please read and understand this entire manual before attempting to assemble, install, or operate this light fixture.
• This light fixture requires a 120-277 Volt AC power source.
• Some codes require installation by a qualified electrician.
• This light fixture must be properly grounded.
• Make sure connections are secure using wire nuts, crimp-on lugs or other approved connecting devices.
• This light fixture should be installed outdoors to a wall, eave or ground mount application.

WARNING: Turn the power off at the circuit breaker or fuse. Place tape over the circuit breaker switch and verify power is off at the light fixture

WARNING: Risk of fire. Keep the fixture heads at least 3 in. (76mm) from combustible materials.

CAUTION: Burn hazard. Allow the light fixture to cool before touching.

NOTICE: If using dimming function, only connect to 0-10V approved dimming switches or control system.

NOTICE: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authorization to operate this equipment.

INFORMATION: The device is tested and found to comply with Part 15 of the FCC Rules. Operation is subject to two conditions: (1) This device may not cause harmful interference and, (2) this device must accept any interference received, including any interference that may cause undesired operation. These limits are designed to provide reasonable protections against harmful interference when the equipment is operated in a commercial environment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant t OTE: o part 15 of the FCC rules. These limits are designed to provide reasonable protection  against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.

Warranty

This is a limited warranty offered by the manufacturer for a period of five years from the date of purchase to its customers. The manufacturer warrants to customers that the products will be free from defects in material and workmanship. The obligation of the manufacturer under this warranty is limited to the provision of replacement of products and is extended to the original purchaser of the product on presenting valid purchase receipt or other proof of date of original purchase acceptable to the manufacturer. The receipt is required for rendering the warranty performance. Any warranty claims without original proof of purchase would not be accepted.

It should be noted that the warranty does not apply to the manufacturer products that have been altered or repaired by
unauthorized personnel, have been subjected to neglect, abuse, misuse or accident or damages caused during shipping. Any other products not manufactured by the manufacturer which have been supplied, installed and/or used in conjunction with the manufacturer products are not covered under this warranty. Any damages caused by replacements bulbs, LEDs or corrosion or discoloration of brass components are also not covered by this warranty.

LIMITATION OF LIABILITY

In no event shall the manufacturer be liable for indirect, consequential, incidental or special damages, or lost profits. The manufacturer is not liable for any claims or damage arising out of or connected with the manufacture, sale, delivery, use, maintenance and repair or modification of the manufacturer products, or supply of any replacement parts that exceed the purchase price of the manufacturer products giving rise to a claim. Labor charges to remove or install the fixtures will not be accepted.

TO CLAIM

Please contact The Home Depot customer service at 1-844-548-3776 or email [email protected] and include your name, address and contact number, along with a copy of the purchase receipt and a brief description of the problem.

Pre-Installation

PLANNING INSTALLATION

Before installing the light fixture, ensure that all parts are present. Compare parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this light fixture. Contact our customer care team for replacement parts.

SPECIFICATIONS

PWRFX70-PC-4K-BZ

TOOLS REQUIRED

• Phillips screwdriver

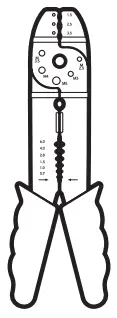

• Wire strippers/ cutters

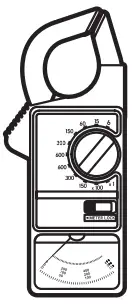

• Circuit tester

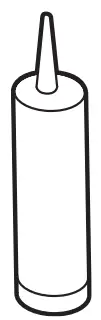

• Silicone sealant

• Work gloves

• Ladder

• Safety goggles

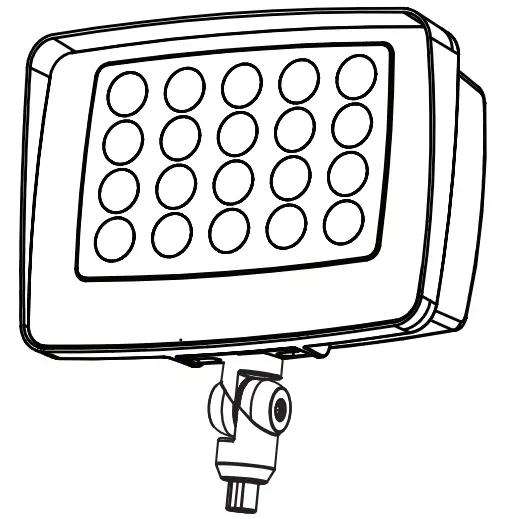

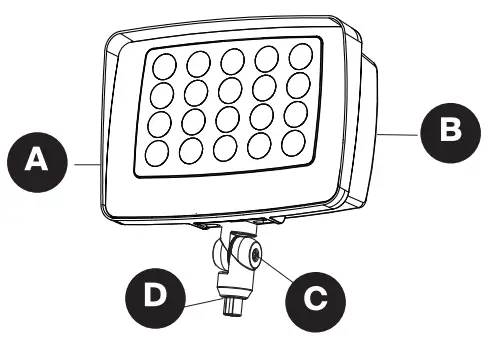

PACKAGE CONTENTS

NOTE: Optional mounts are not included in the box, Additional mounting accessories are available separately from your retailer.

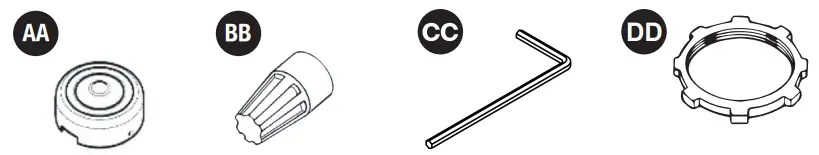

HARDWARE KIT

NOTE: Hardware not shown to actual size.

Installation

For best results

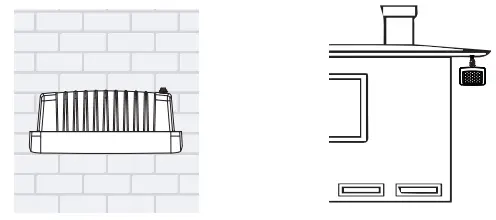

The light fixture (A) must be mounted using the threaded knuckle (D) into a weather proof cover (not included) on a junction box (fig 2) or a landscape  ground stake (not included) (fig 3). t

Mounted to weather proof cover with 1/2″ NPSM Pipe Thread (sold separately)

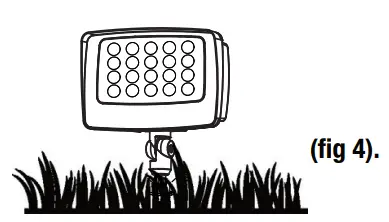

Mounted to landscape ground stake with 1/2″ NPSM Pipe Thread (sold separately)

Ground Mount

INFORMATION Weather proof cover plates for junction boxes, landscape ground stake and other mounting arms and accessories are available. Please contact your retailer or Commercial Electric customer support.

NOTE: While using the light fixture (A) as eave mounted (fig 1), the photocell sensor (B) may not function properly. In this case, it is advisable to use the light fixture (A) with switch-control mode.

Shut off electric power

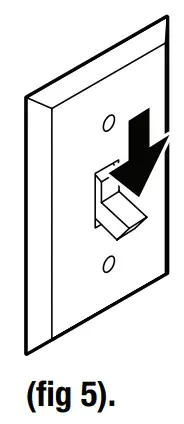

• Verify wall switch is in OFF position (fig 5).

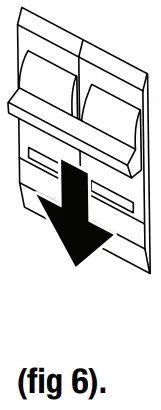

• At the main electrical panel, turn off the circuit breaker that supplies power to the junction box you are working on (fig 6).

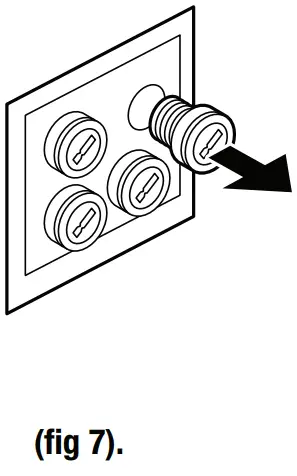

• For screw-in type fuses, unscrew the fuse that supplies power to the junction box you are working on (fig 7).


Make the electrical connections

• If necessary, strip 3/8” of insulation from junction box and lighting fixture wires (fig 8).

  Standard Non-Dimming Wiring diagram (Follow these steps when NOT wiring to a 0-10V dimmer)c
• Connect light fixture black wire to junction box black wire (line), light fixture white wire to junction box white wire (common), and the light fixture green wire to the junction box ground wire (fig 9).
• For the purple and pink unused fixture wires either leave the wires unstripped or install wire nuts (BB) on the ends to prevent electrical hazard (fig 9).


NOTICE: Leave purple and pink wires terminated with wire nuts installed and separated when NOT connecting to a 0-10V dimmer. DO NOT connect the purple and pink wires to any other wires unless wiring to a  0-10V dimmer designed for use with LED light fixtures (fig 9).

TIP: Hold stripped ends near each other and align any frayed strands (do not twist wires). Push the wires into wire nuts (BB) and use your fingers to twist the wire nuts clockwise until tight. Check for tightness by pulling wires.

For electrical wiring to 0-10V Dimmer
(Follow these steps when wiring to a 0-10V dimmer)

• Connect light fixture black wire to junction box black wire (line), light fixture white wire to junction box white wire (common) and the light fixture green wire to junction box ground wire.

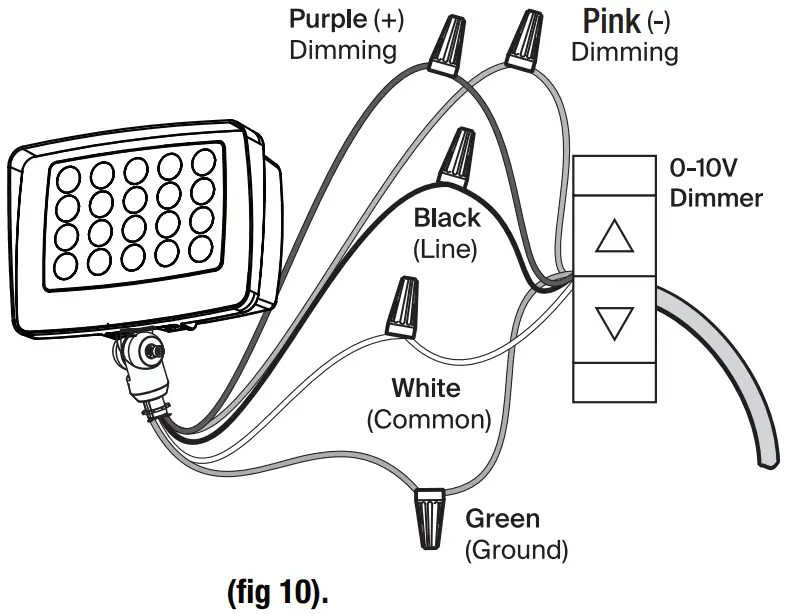

• For dimming, when wiring to a 0-10V dimmer, connect the light fixture purple wire to the dimming device wire (+DIM) and the light fixture pink wire to the dimming device wire (-DIM) (fig10).


Secure the fixture

• Secure the light fixture (A) to a junction box with weather proof cover plate or landscape ground stake (sold separately). Insert and thread the knuckle mount (D) in a clockwise motion until the light fixture (A) is at the desired direction. Tighten the pre-installed conduit locknut (DD) to ensure fixture (A) is locked to adjusted position (fig 11).

  Tighten the knuckle mount (D) with conduit locknut (DD) (included)
• If applicable, plug all unused holes and seal threads with silicone.

Aim the fixture

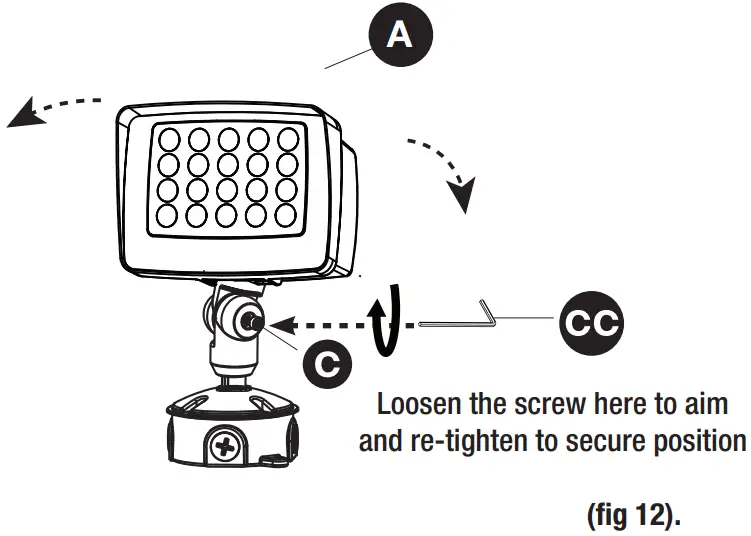

• Loosen the screw on swivel portion of the knuckle mount (D) using the provided allen wrench (CC) (fig 12).
• Adjust the fixture (A) to a suitable aiming position, and then tighten the knuckle mount tightening screw (C) (fig 12).


Operation

Select Dusk-to-Dawn or Switch-Activated control

OPTION 1: Dusk-to-Dawn operation

Dusk-to-dawn operation enables the light fixture to automatically turn ON when dark outside and turn OFF when the sun rises, thus saving you energy.

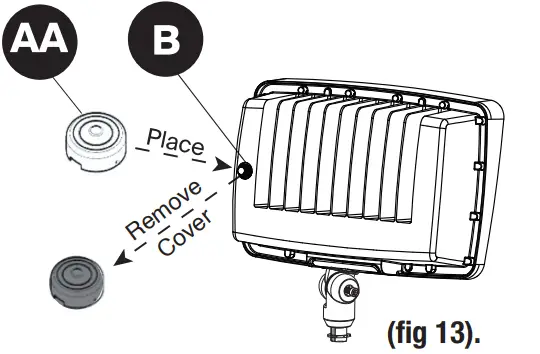

• To enable dusk-to-dawn operation remove the pre-installed black photocell cover and install the clear photocell cover (AA) (fig 13).

  (For dusk-to-dawn operation, remove the black cap and replace with the clear photocell cover (AA))
• Ensure the switch powering the light fixture is turned to the ON position and leave it ON at all times to enable automatic dusk-to-dawn operation.

TIP: To test if the light fixture and photocell operation during daylight hours run power to the fixture and cover the photocell for 10 seconds to turn fixture ON. Uncover photocell and the fixture should turn OFF after 10 seconds. If the photocell is not detecting enough light from the sun shine a flashlight into the photocell to see the fixture turn OFF.

NOTE: During daylight hours if the photocell does not get enough light from the sun (shady area) it may turn the light fixture ON prematurely.

OPTION 2: Switch Controlled

Switch controlled operation enables the light fixture to turn ON and OFF by flipping a switch that controls the electricity to the junction box powering the fixture. The light fixture will not turn ON and OFF automatically, but is manually controlled.

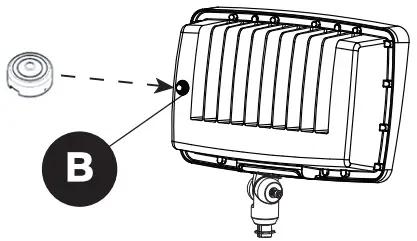

• To enable switch activated operation leave the pre-installed black photocell cover on the photocell (fig. 14).

  (fig 14) To disable to photocell, leave the pre-installed black photocell cover on the photocell

Care and Cleaning

• Shut off main power supply before cleaning the product. To prolong the original appearance, clean the light fixture with clear water and a soft, damp cloth only.
• Do not use abrasive cleaners or cleaners that contain alcohol. Do not apply paints, solvents, or any other chemicals on this light fixture. They could cause a premature deterioration of the finish and may void the warranty.
• Do not spray the light fixture with a hose or power washer.

Troubleshooting

NOTE: Photocell may have a longer delay during trouble shooting. When testing, shine flashlight or cover the photocell and allow for up to 1 minute for the fixture to work properly.

Supplier’s Declaration of Conformity 47 CFR§2.1077 Compliance Information

Unique Identifier:(e.g , Trade Name, Model Number)

Responsible party -U.S Contact information
Eran Financial Service LLC
3500 Boca Raton Blvd -Suite717,Boca Raton,
Florida 33431,USA
Telephone number or internet contact information 018444115483

FCC Compliance Statement (e.g., product subject to Part 15)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condition: (1) This device may not cause harmful interference, and (2) this device  must accept any interference received, including interference that may cause undesired operation.

Customer Support

Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
9 a.m. – 5 p.m., EST, Monday-Friday
1-844-548-3776
