Powr-Flite PE010-G03-U PHOTON 3.5 Gallon Spotter

PRODUCT INFORMATION

The PHOTON 3.5 Gallon Spotter is a portable battery-powered mister that can be used for cleaning small areas. The machine is designed to be used with manufacturer-recommended accessories and chemicals only. It should not be modified or adapted for any other use.

Getting Started

• Introduction: Read and understand the owner’s manual and all labels before operating the machine.
• Warranty: To activate the product warranty within 30 days of purchase, visit https://www.powr-flite.com/warranty-registration.
• Grounding Instructions: Make sure the machine is properly grounded to avoid electric shock.
• Important Safety Instructions: Follow all safety instructions to reduce the risk of personal injury or damage to the machine.
• Technical Specifications: Refer to the owner’s manual for technical specifications.

Operation

• Operation: Follow the instructions in the owner’s manual for proper machine operation.
• Troubleshooting: If you encounter issues with the machine, refer to the troubleshooting section in the owner’s manual.
• Parts Diagram: Refer to the parts diagram in the owner’s manual for a visual guide to machine components.
• Parts List: Refer to the parts list in the owner’s manual for a complete list of machine parts and accessories.

Important Safety Instructions

• Warning Labels: Pay attention to warning labels on the machine to avoid potentially hazardous situations.
• Personal Protection Equipment (PPE): Wear appropriate PPE, such as safety glasses, masks, and gloves, during machine operation.
• Flammable Liquids: Do not use the machine with flammable or combustible liquids or floor cleaners.
• Pressurized Equipment Warning: The machine is under high pressure when activated. Replace any leaking hoses immediately and discontinue use if the pump continues to run when the trigger is not depressed.
• Flammability Warning: Do not fill the machine with flammable chemicals or use it in areas where flammable fumes are present.
• Proposition 65 Warnings: This product contains one or more chemicals known to the state of California to cause cancer or reproductive harm.

Always follow the owner’s manual instructions and safety guidelines for proper machine usage and maintenance. Failure to do so may result in personal injury or damage to the machine.

INTRODUCTION

• Warranty
  Within 30 days of purchase, to activate product warranty, go to: https://www.powr-flite.com/warranty-registration
• Warning Labels
  Prior to operating the Portable Battery Powered Mister, read and understand completely this owner’s manual paying special attention to warning labels. These labels indicate a potentially hazardous situation that could result in death or serious injury if not avoided. Use only as described in this manual.
• Important
  There are no owner serviceable parts inside this machine. Removal of screws and accessing internal components will void all warranty claims.
• Personal Protection Equipment (PPE)
  Personal Protection Equipment (PPE) should be worn during the operation of this machine. Chemicals can remain airborne for some time after application and therefore safety glasses and masks are recommended. Gloves should be worn any time chemicals are handled.
• Your new Powr-Flite unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt/invoice given at the time of purchase. If you experience any problems with your unit during the warranty period, the original receipt/invoice will act as proof of purchase.
• Upon receipt, inspect outer box for exterior damage. Unpack all internal parts, ensure all items are present according to the owner’s manual, and review components for damage.
• Each unit is tested and thoroughly inspected prior to shipping. If damage is discovered, immediately notify the transportation company that delivered your machine and request an inspection.
• As a manufacturer, we are unable to act upon any claim for concealed damage and you must originate the claim. Be sure to keep the carton, packing inserts, and carrier’s receipt until the inspector has verified your claim.

GROUNDING INSTRUCTIONS

DANGER: Improper use of the grounding plug can result in a risk of electric shock.
WARNING!
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. DO NOT modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

GROUNDING METHODS

• This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

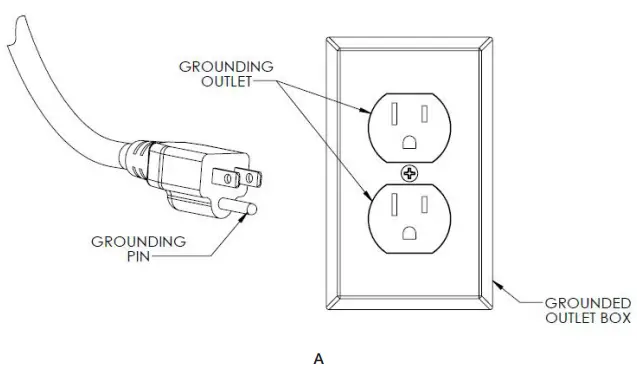

• This appliance is for use on a nominal 115-volt circuit, and has a grounding plug that looks like the plug illustrated in sketch A.



IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT
Read and understand this owner’s manual and all labels on the unit before operating. Safety is a combination of common sense,staying alert, and knowing how your unit works. Use this unit only as described in this manual. Use only manufacturer’s recommended attachments. To reduce the risk of personal injury or damage to your unit use only recommended accessories.

• WARNING To avoid fire, DO NOT use with a flammable or combustible liquid or floor cleaner.
• WARNING To avoid electric shock, DO NOT expose to rain. Store Indoors.

When using this unit, basic precautions should always be followed, including the following:

1. DO NOT leave unit when plugged in. Unplug from outlet when not in use and before servicing.
2.  DO NOT allow unit to be used as a toy. Close attention is necessary when used around or near children.
3. Use only as described in this manual. Use only manufacturer’s recommended attachments.
4. DO NOT use with damaged cord or plug. If unit is not working properly because it has been dropped, dropped into water, left outdoors, or damaged in any way, contact a service center
5. DO NOT handle plug or appliance with wet hands.
6. DO NOT put any objects into openings.
   DO NOT use with any opening blocked: keep free of dust, lint, hair, or anything that may reduce air flow.
7. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
8. DO NOT pick up anything that is smoking or burning such as cigarettes, matches, or hot ashes.
9. DO NOT use to pick up hazardous chemicals.
10. Turn off all controls before unplugging.
11. Turn unit off immediately if foam or liquid comes from machine exhaust. Empty & clean out recovery (dirty) tank and use defoamer to correct the problem.
12. DO NOT use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
13. DO NOT use where oxygen or anesthetics are used.
14. Replace damaged or worn parts immediately with genuine original equipment parts to maintain safety.
15. This unit must be connected to a properly grounded outlet only. See grounding instructions.
16. DO NOT use equipment out of doors or in the rain.
17.  DO NOT use equipment near or around flammable or explosive materials, fuels, or solvents.
18. DO NOT allow the unit to freeze.
19. Anyone designated to operate this equipment must, without fail, read and thoroughly understand all instructions and precautions prior to use.
20.  Do not operate in standing water.
21. Do not operate equipment under any unsafe condition.
22. Do not use the machine for totally dry vacuuming. This machine is not fitted with a fine dust filter.
23. Do not use citrus-based cleaners in this machine.
24. Do not use cleaning chemicals in this machine except those recommended for commercial extraction equipment. The use of any chemical with abrasive additives voids the warranty.
25. Use defoamer at all times to prevent damaging the vacuum motor.
26. Do not use water in excess of 140° F (62° C).

• Pressurized Equipment Warning
  Unit is under high pressure when machine is activated. If leaks are visible around coiled hose connections, replace hose immediately with part number shown in this manual. If pump continues to run when the trigger is not depressed, turn machine OFF, discontinue use and return to an authorized service center.
• Flammability Warning
  NEVER fill unit with flammable chemicals. Do NOT use in an area where flammable fumes are present.
• State of California Proposition 65 Warnings
  • WARNING: This product contains one or more chemicals known to the state of California to cause cancer.
  • WARNING: This product contains one or more chemicals known to the state of California to cause birth defects or other reproductive harm.
• Intended Use
  Do NOT modify this unit in any way or adapt it for any other use. Modification of this unit in any way will void all warranties and could create safety hazards.

Technical Specification

OPERATION

• Filling the Pro Spotter
  • Unplug the unit.
  • Disconnect the solution and recovery tanks.
  • Remove the upper recovery tank.
  • Add water and/or chemicals to the lower solution tank. Fill only to the fill line indicated on the label on the inside of the solution tank. The tank will hold up to 3.5 gallons.
• Operating the Pro Spotter

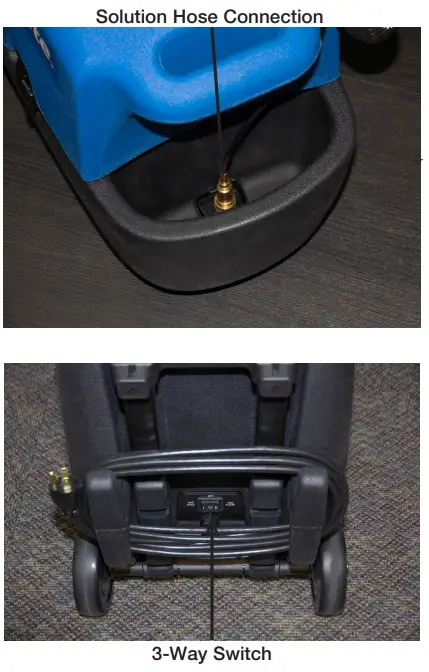

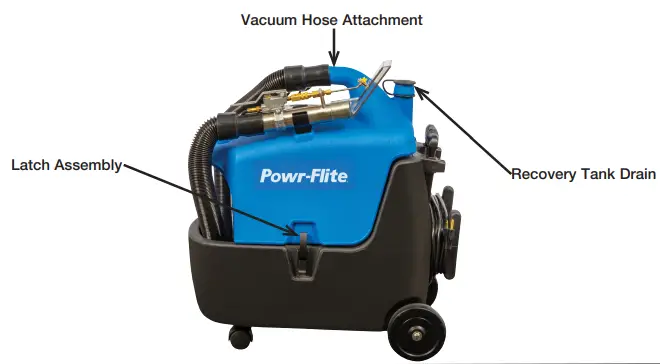

  • Attach the solution hose to the quick disconnect in the pocket at the front of the machine.
  • Attach the vacuum hose to the vacuum inlet (handle) above the recovery tank lid.
  • Turn the 3-way switch to use either the pump and vacuum or the vacuum alone. (Allow approximately 30 seconds for the pump to prime).
  •  Use the hand tool to spray and recover the solution.
  • The float shut-off will disable the suction of the unit when the recovery tank is full. The operator will notice a distinctive change in the sound of the vacuum motor when the shut-off is activated. Empty the recovery tank, and then fill the solution tank, to resume cleaning.
• Emptying the Recovery Tank
  • Unplug the unit.
  • Disconnect the solution line and vacuum hose.
  • Unlatch the recovery tank from the base of the unit and remove.
  • Remove the drain plug.
  • Drain the tank over a suitable outlet for wastewater.
  •  Rinse the tanks after each use.
  • Store the unit with the lid off of the recovery and allow it to air dry.



TROUBLESHOOTING

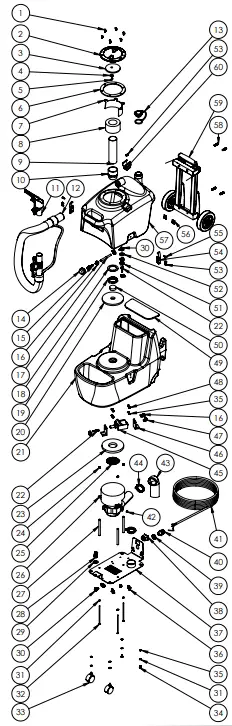

PARTS DIAGRASM

Record of Purchase

ABOUT COMPANY

• Powr-Flite
• 3101 Wichita Court
• Ft. Worth, TX 76140-1755
• Phone: 817-551-0700
• WWW.POWR-FLITE.COM
