neverdark C2-TRD Thermobox Room Divider Instruction Manual

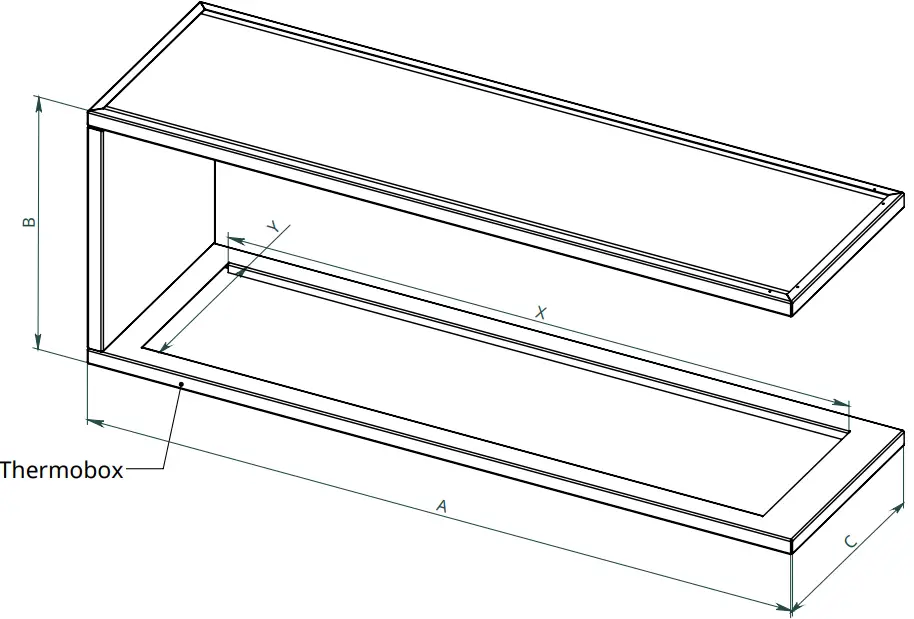

Main view
NEVERDARK Standard Installation
Thermobox Room Divider for Chalet-II
(С2-TRD)
| Thermobox | Fireplace | ||||
| A | B | C | X | Y | |
| Model | Length of thermobox | Height of thermobox | Depth of thermobox | Max. length of fireplace | Width of thefireplace |
| C2-TRD-800 | 800 | 500 | 410 | 800 | 320 |
| C2-TRD-900 | 900 | 900 | |||
| C2-TRD-1050 | 1050 | 1100 | |||
| C2-TRD-1300 | 1300 | 1200 | |||
| C2-TRD-1500 | 1500 | 1400 | |||

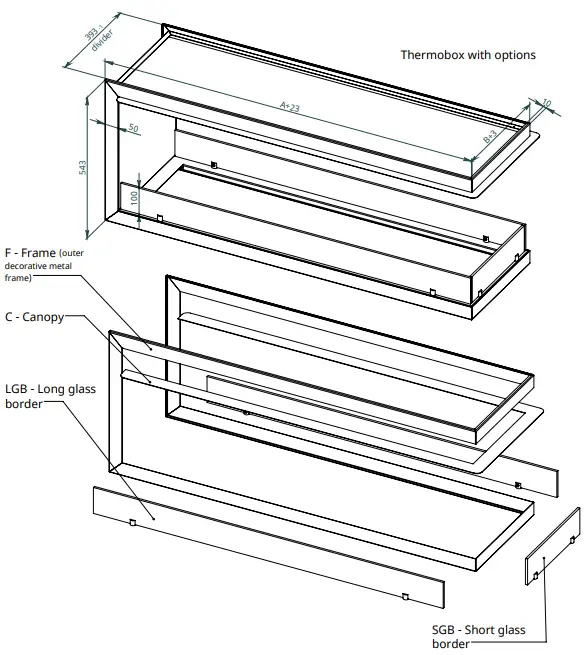

Options

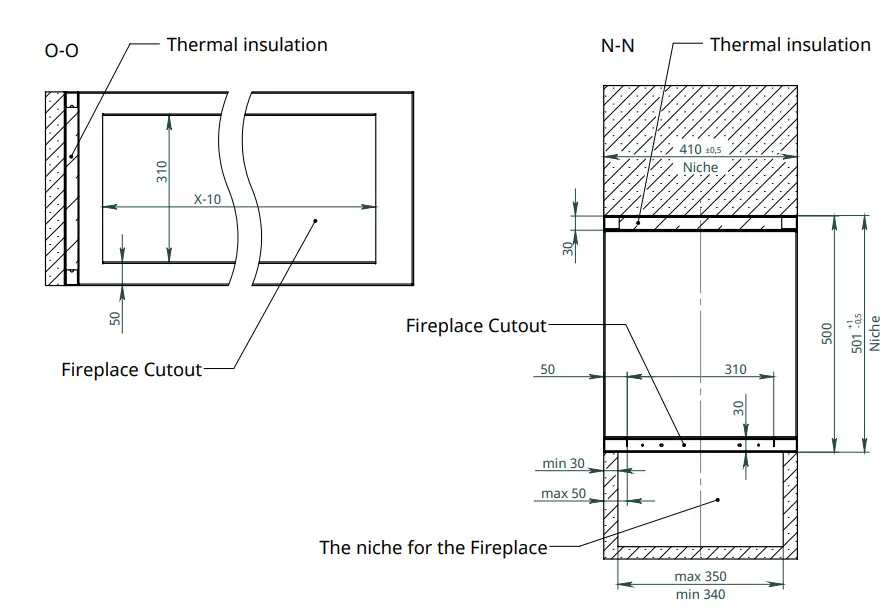

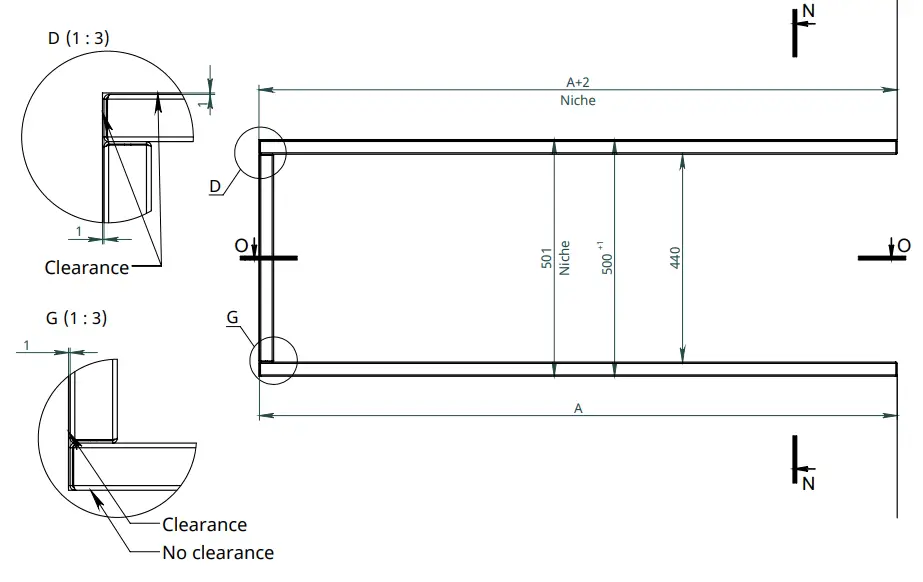

Dimensions

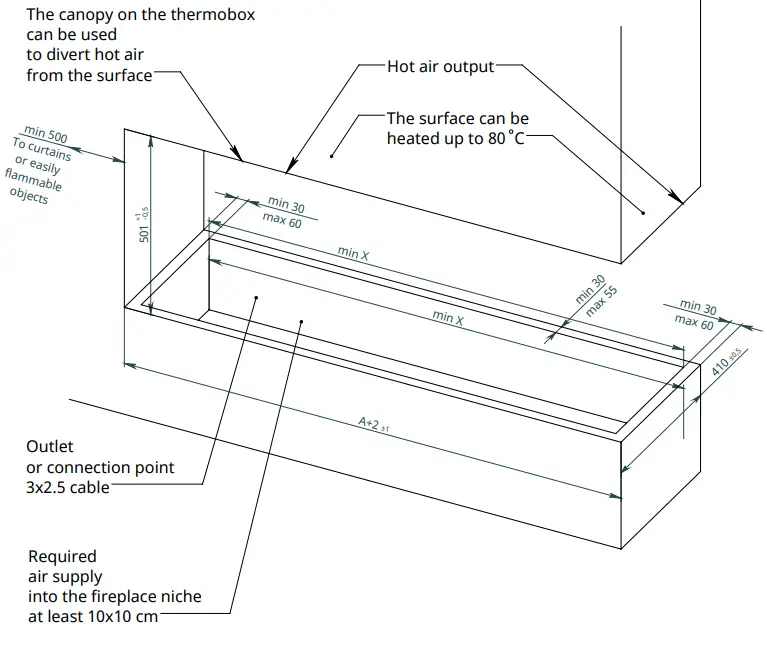

Niche
