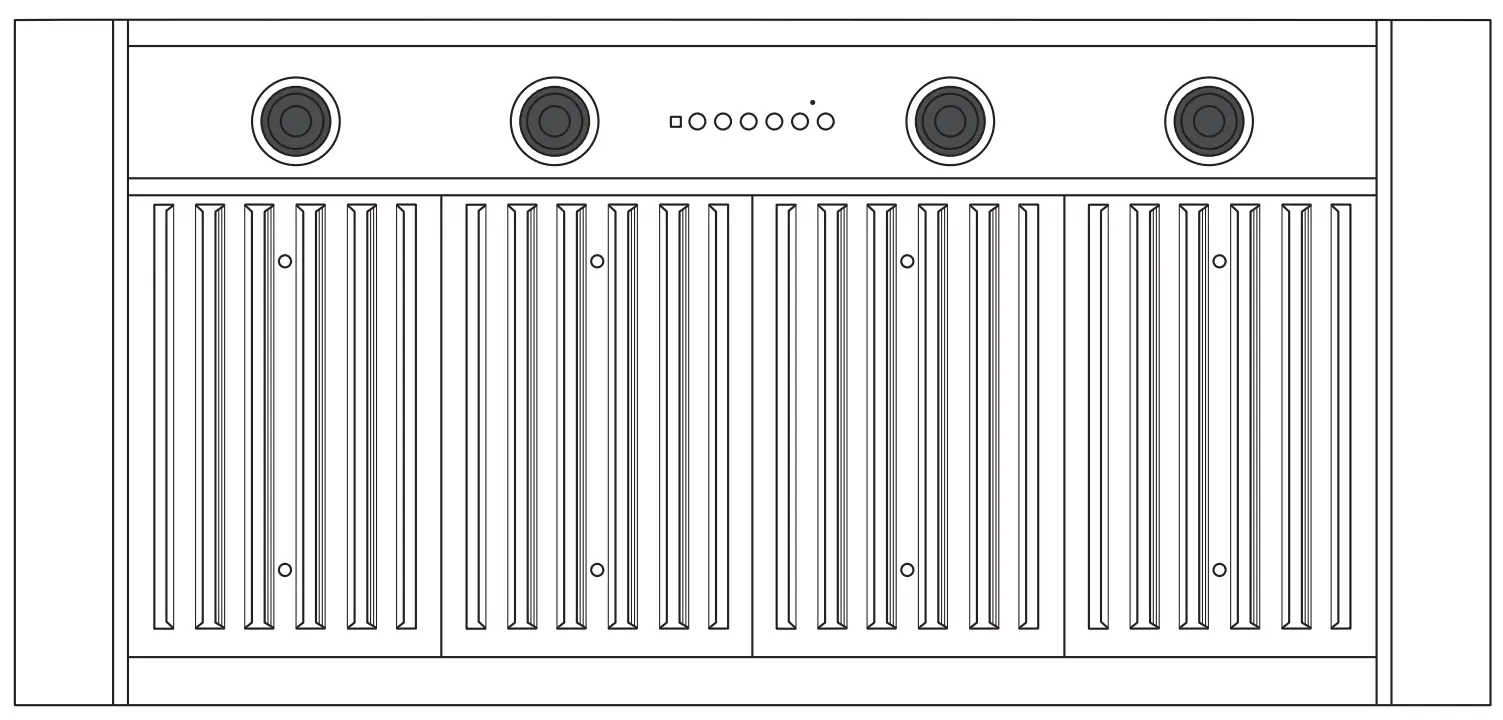

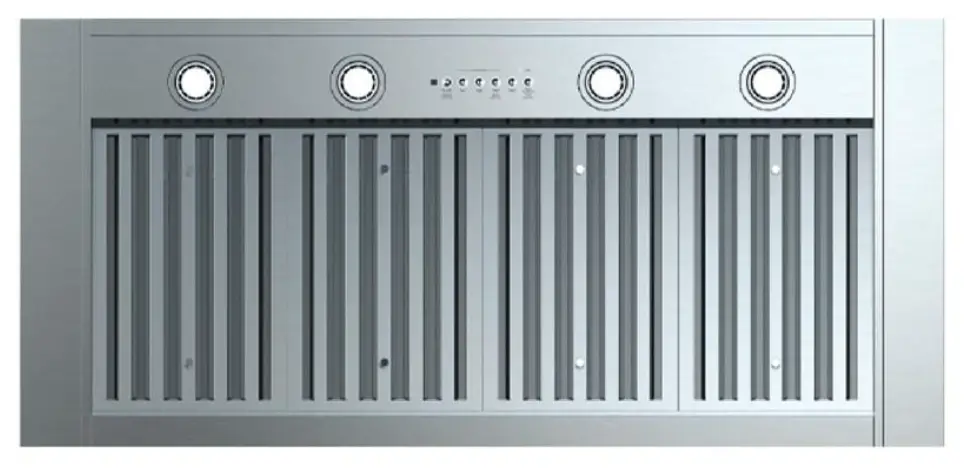

GE APPLIANCES UVC9480SLSS 48 Inch Universal Custom Hood Insert
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
Installation Information: Before installing, consult installation instructions, packed with product, for current dimensional data.
AMP RATING | |
120V | 6.0 |
These hoods are secured to the custom cabinet from both sides through 8 screws.
Two 2×4 studs separated by 39″ need to be provided on the custom cabinets for installation.

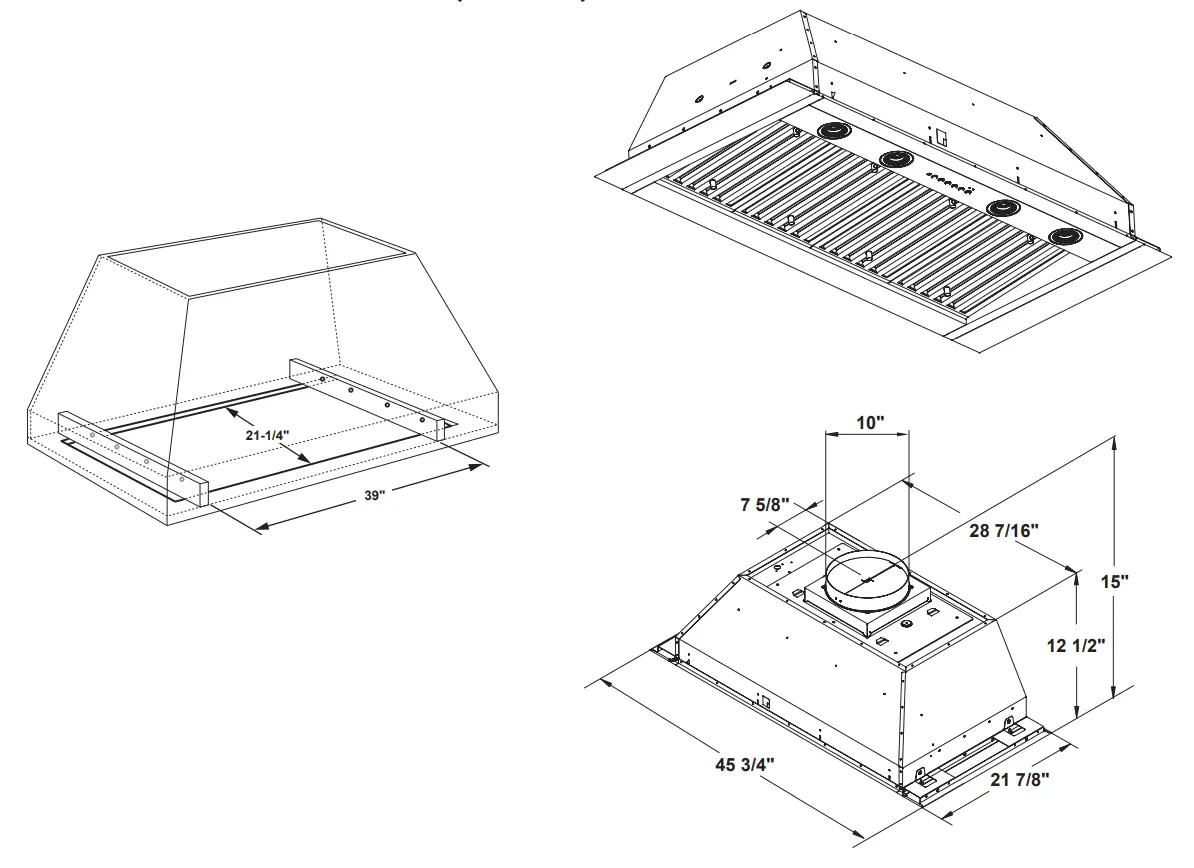

Art is showing the cutout dimensions.
FEATURES AND BENEFITS
Adjustable CFM blower – Two high powered 610 CFM blowers are capable of delivering 1220 CFM air flow.
Brilliant LED dimmable lighting (bulbs included) – 4 longlasting LED lights ensure even lighting for the entire cooking environment.
Electronic backlit controls – Add a sophisticated look with this up-front, easy-to-use display.
Premium Baffle Stainless Steel Filters – removes odors and grease from your cooking area and are easy to clean in your dishwasher.
WiFi Connect – Control appliances with a smart device or just the sound of your voice.
Chef Connect – Automatically control the hood’s lights and fan by syncing with the range.
Remote control included – Activate and adjust your hood functions from anywhere in the kitchen.
Four-speed fan control – Helps draw smoke, grease, odors and moisture out of the kitchen air.
Model UVC9420SLSS – Stainless steel.
Model UVC9480SLSS – Stainless steel.
