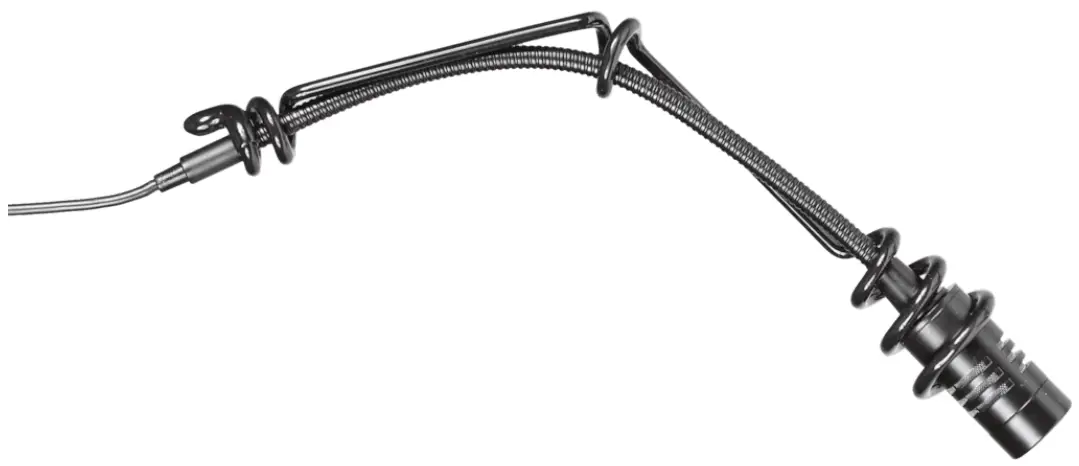

AUDAC CMX382 Hanging Condenser Microphone
Highlights
- 3 meter fixed connection cable
- Phantom power adapter included
- Flexing gooseneck structure for highly accurate positioning
- Spiral hanging bracket
High quality back electret condenser capsule with cardioid pickup pattern
Product information:
The CMX382 is a hanging condenser microphone with a slim and miniature design. It is designed for offering versatile solutions for sound reinforcement or recording systems in a wide variation of applications. Typical applications range from speech in meeting or conference rooms to music in houses of worship, orchestra’s, choirs and many others. The tailored frequency response guarantees a rich, clear and sensitive sound reproduction while the cardioid directivity characteristic eliminates feedback and unwanted noise. The included spiral hanging bracket makes overhead suspension possible above conference tables, choirs, orchestra’s, … while the flexing gooseneck structure allows a highly accurate positioning. The microphone comes delivered with a fixed connection cable with a total length of 3 meters which is fitted with a 4-pin Mini-XLR connector. An included phantom power adapter with standard 3-pin XLR connector converts the supplied phantom voltage and allows connection to standard pre-amplifiers or mixers. The included windscreen reduces unwanted and popping sounds.
In comparison with the already known CMX380 microphone, the CMX382 contains an improved spiral hanging bracket and a flexing gooseneck structure which makes highly accurate positioning possible. The included phantom power adapter with low-noise characteristics guarantees improved overall signal/noise performance.
Applications
- Corporate
- Houses of worship
System specifications:
| Microphone | Type | Back electret condenser |
| Connection | 4-pin mini XLR | |
| Polar Pattern | Cardioid (unidirectional) | |
| Frequency | Response (± 3 dB) | 50 Hz – 18 kHz |
| Sensitivity (1W/1m) | 42 dB ± 3 dB / Pa | |
| Impedance | 200 0 | |
| Sound Pressure (Max. W/1 m) | 130 dB | |
| Signal / Noise | 75 dB | |
| Power | Supply | 10 — 52 V DC Phantom Power |
Product Features:
| Accessories | Included | Windscreen (MWS380/B) |
| Phantom Power adapter | ||
| Spiral hanging bracket | ||
| Dimensions | 13.5 x 160 mm (0 x L) (3 m fixed connection cable) | |
| Weight | 0.100 kg | |
| Colours | Black | |
| Phantom adapter | Connection | 3-pin XLR |
Variants
- CMX382/W – Hanging condenser microphone -white
- CMX382/B – Hanging condenser microphone -black
Shipping & Ordering:
| Packaging | Cardboard box |
| Shipping weight & volume | 0.120 kg – 0.0007 Cbm |
Acoustical data graphs:

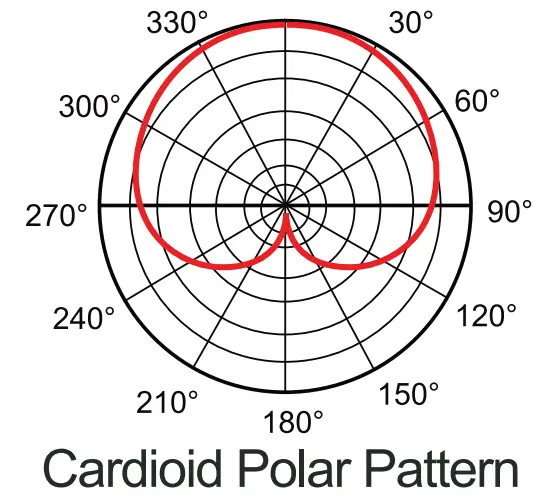

Polar pattern:
