Ltc Electret Condenser Microphone Set Instructions

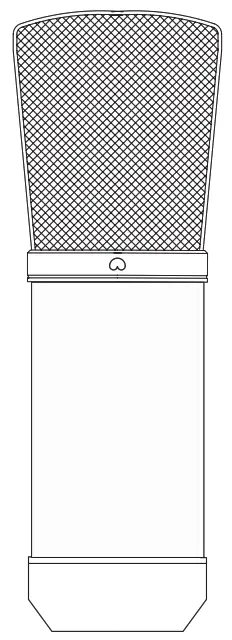

ELECTRET CONDENSER MICROPHONE SET

https://www.lotronic.net/STM200-PLUS-QRCODE

STM200-PLUS (Code: 10.4523)

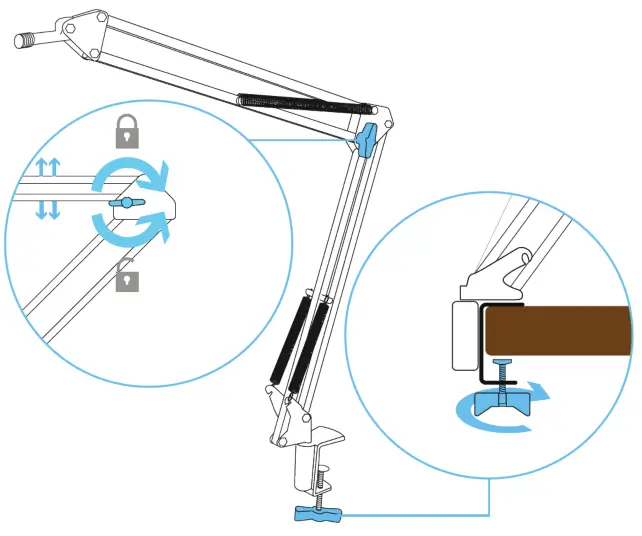

Table Arm Mount

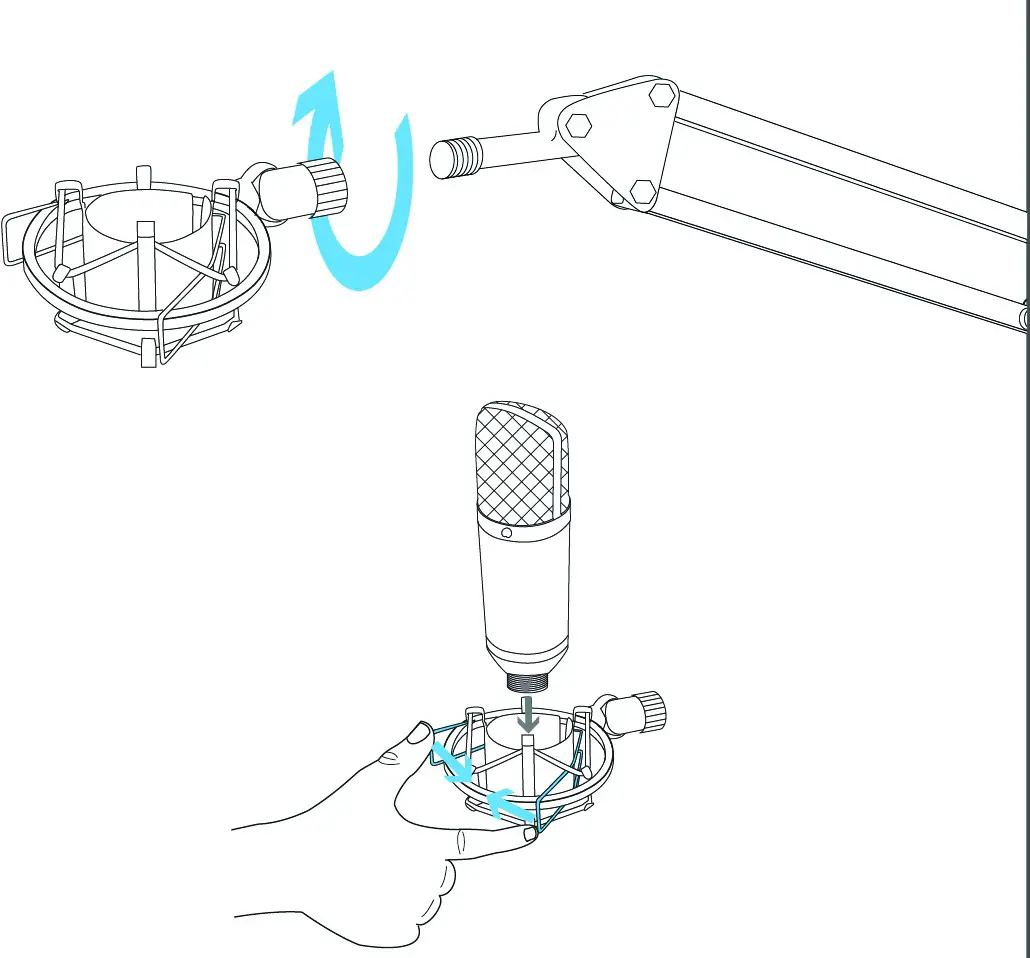

 Shock Mount

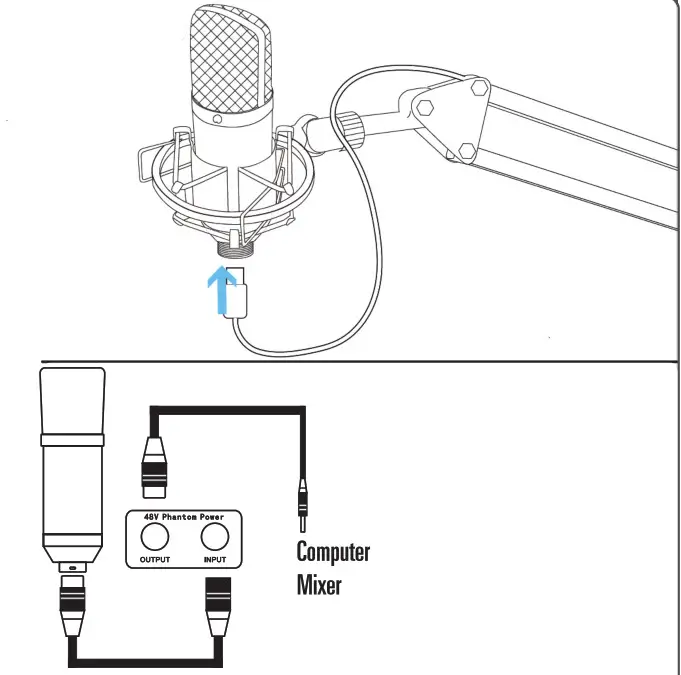

Connect to PC

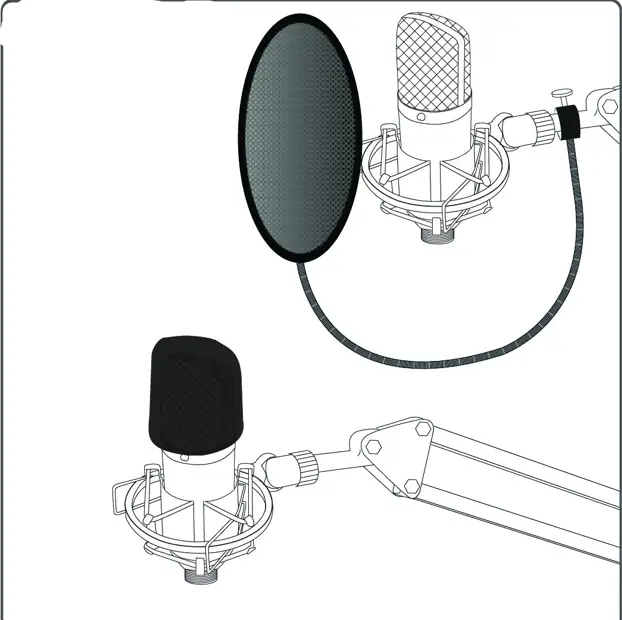

POP Filter

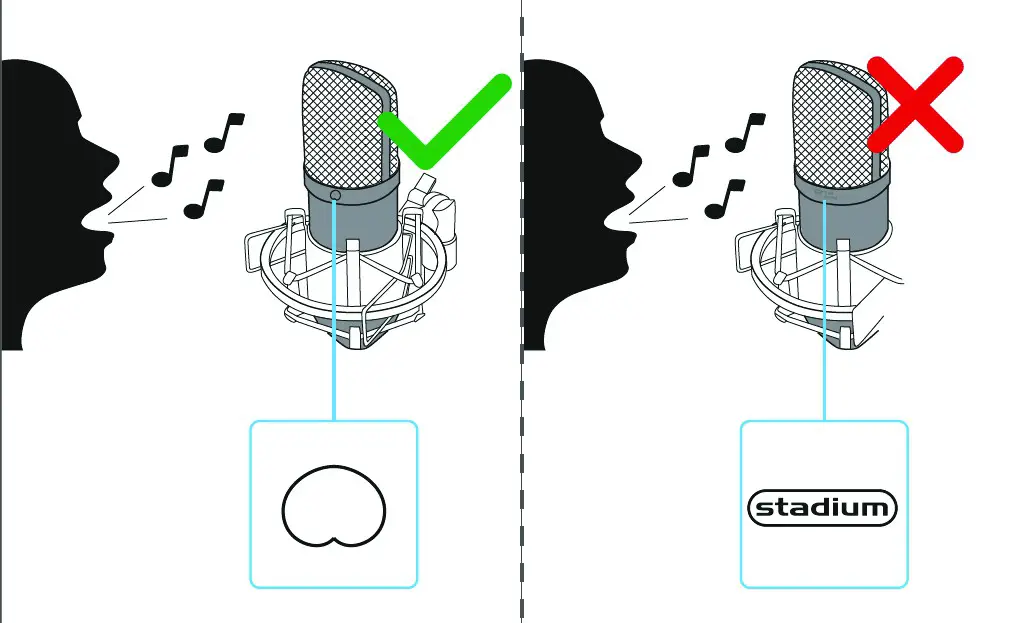

 Microphone Direction

Specifications

Power supply………………..5V= via USBImini Jack adaptor
Compatibility……………….Mac, Windows
Freq. response …………... 20Hz – 20kHz
Sensitivity………………….. -34dB±2dB
Output………………..impedance   150Ω ±30% (at 1kHz)
Load impedance ……………. …...≥10000
Equivalent noise level……………… 16dBA
SIN ratio………………………… 78dB
Electric current…………….. 3mA
Weight  ……………...150g (mic)

Assembled in PRC for
LOTRONIC S.A.
Avenue Z. Gramme 9 B-1480 Saintes
Contact us on Facebook for all technical questions:

https://www.lotronic.net/STM200-PLUS-QRCODE
