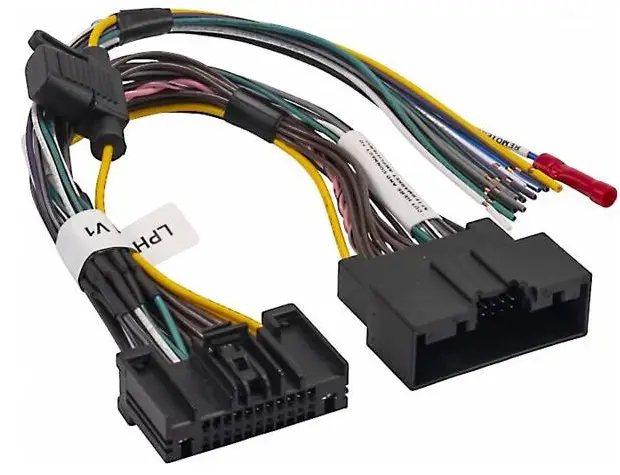

LPH-SPK LPH Harness
Instruction Manual
LPH Harness Instruction Guide
Important Notes
All LPH harnesses are designed to work on OEM Non-Amplified systems.
All LPH harnesses are designed to be modular and used in various applications. (Listed Below)
-Adding Multi-Channel Amplifiers Front
-Adding Multi-Channel Amplifiers Rear
-Adding Multi-Channel Amplifiers Front / Rear -Adding Mono Amplifier Standalone Subwoofer -Provides Power/Ground/ACC
-Provides speaker inputs / outputs on all channels
-LPH-SPK(A) / (C)
-LPH-SPK(B) / (D)
-LPH-SPK(A) / (B) / (C) / (D)
-LPH-SPK(E)
-LPH-SPK(F)
If no powered accessories are going to be installed behind your radio you will not need to use the LPH-SPK(F) pigtail. If you are using this harness make sure your loose ends are connected prior to plugging in to the main LPH harness. If not connected to a device or insulated this could cause a short circuit.
Wiring Connection Chart (All Models)
| LPH-SPK (A) | LPH-SPK (B) | LPH-SPK (C) | |||
| Front – Signal from AMP | Rear – Signal from AMP | Front – Signal to AMP | |||
| Wire Color | Function | Wire Color | Function | Wire Color | Function |
| White | Front Left (+) | Green | Rear Left (+) | White | Front Left (+) |
| White/Black | Front Left (-) | Green/Black | Rear Left (-) | White/Black | Front Left (-) |
| Gray | Front Right (+) | Violet | Rear Right (+) | Gray | Front Right (+) |
| Gray/Black | Front Right (-) | Violet/Black | Rear Right (-) | Gray/Black | Front Right (-) |
| LPH-SPK (D) | LPH-SPK (E) | LPH-SPK (F) | |||
Rear – Signal to AMP | Signal to AMP (SUB-T) | Power Extension | |||
| Wire Color | Function | Wire Color | Function | Wire Color | Function |
| Green | Rear Left (+) | Blue | Left (+) | Yellow | Constant 12V |
| Green/Black | Rear Left (-) | Blue/Black | Left (-) | Red | Accessory |
| Violet | Rear Right (+) | Red | Right (+) | Black | Ground |
| Violet/Black | Rear Right (-) | Red/Black | Right (-) | ||
| LPH-SPK (E) Can be use in both front or rear configurations based on user preference. | |||||
| LPH-SPK (F) Not all vehicles will provide accessory signal (Red Wire). | |||||

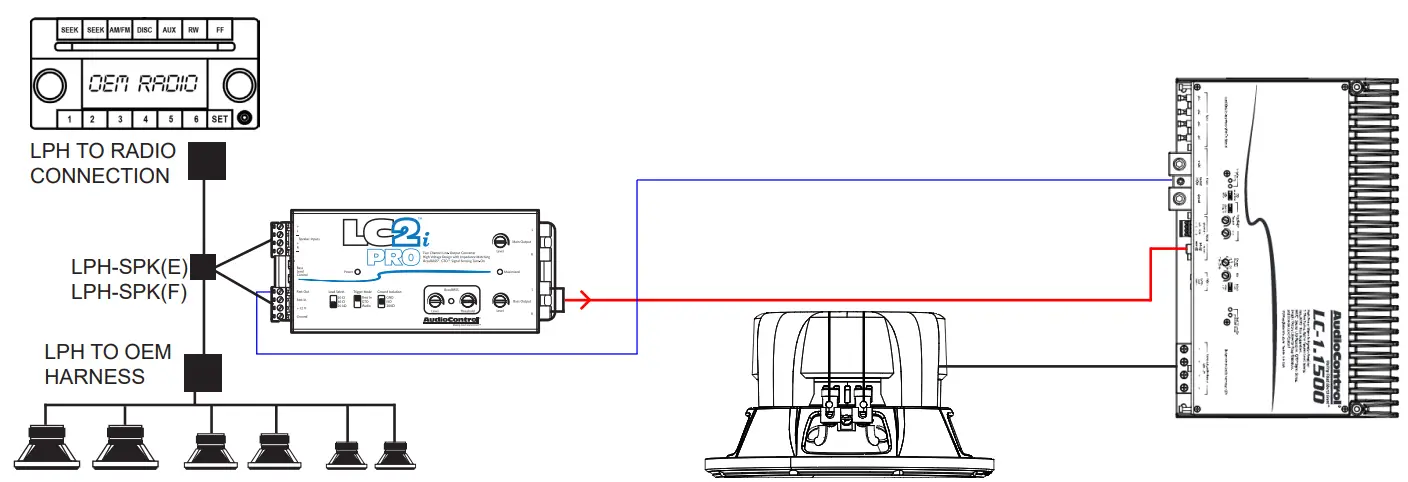

Example Installation – Mono Amplifier – LPH-SPK(E)

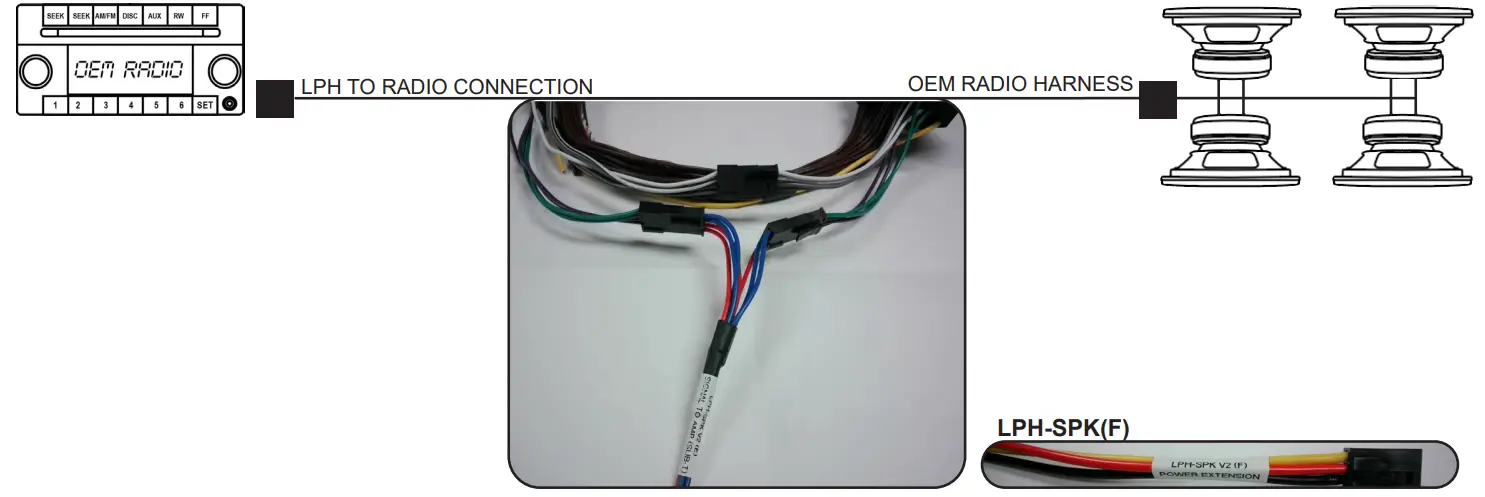

For this application you will want to split either the front or rear channels on the main LPH harness and insert (LPH-SPK(E)) in between. (See Photo).
This will provide a High-Level output for various devices such as an Amplifier, DSP, or LOC that can accept a high-level input signal.
LPH-SPK(F) can be used to provide Power, Ground, and in some cases Acc for your audio adapter (See Photo Bottom Right).
You will want to test your vehicles factory speaker signal to verify that low level frequencies are present.
This example will also maintain your factory speaker connection as it is bypassed though the harness.

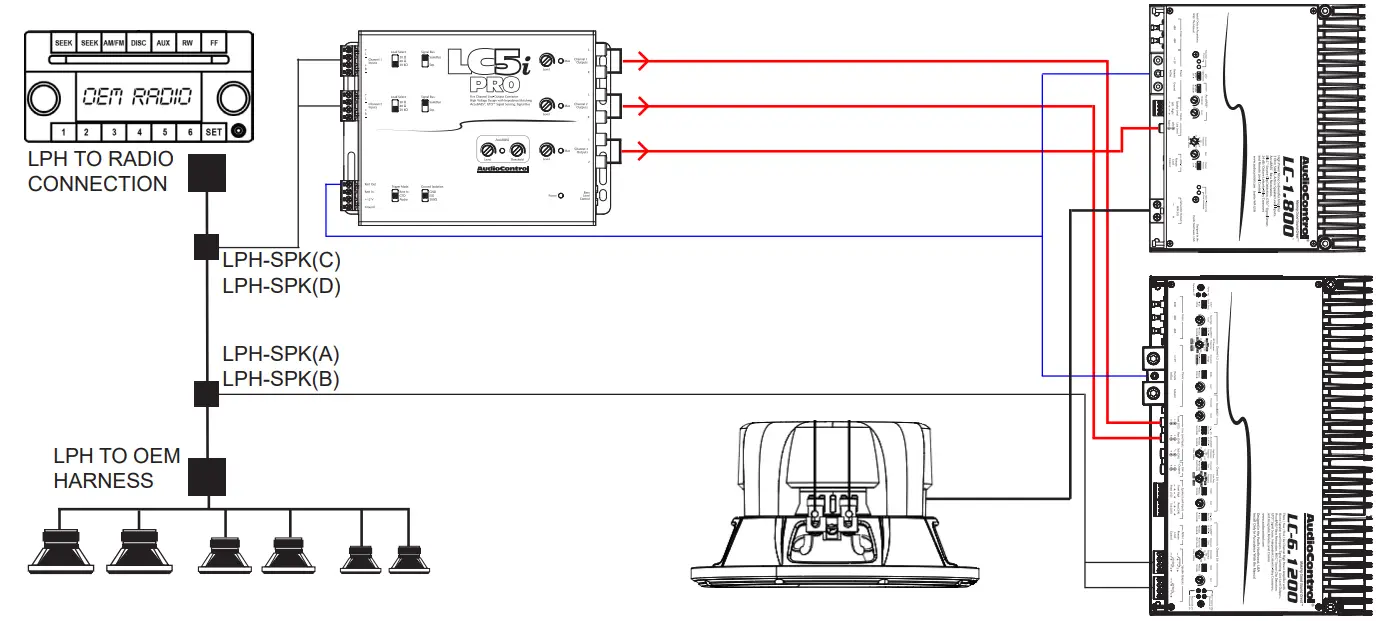

Example Installation – Multi-Channel Amplifier – LPH-SPK(A/B/C/D)

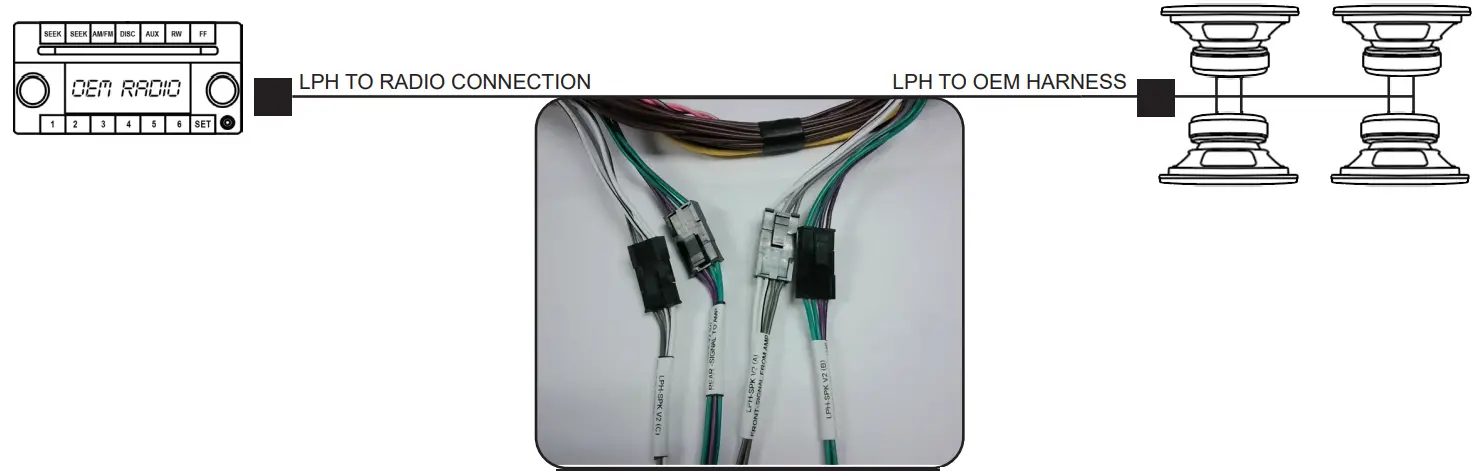

For this application you will want to split either the front and / or rear channels on the main LPH harness and insert LPH-SPK(A-D) in between. (See Photo).
Harnesses LPH-SPK(C) and LPH-SPK (D) will provide a High-Level output for various devices such as an Amplifier, DSP, or LOC that can accept a high-level input signal.
Harnesses LPH-SPK(A) and LPH-SPK(B) will allow you to run the output of your new aftermarket amplifier back through you factory wiring.
© 2021 AAMP Global.
All rights reserved.
PAC is a Power Brand of AAMP Global.
PAC-audio.com
