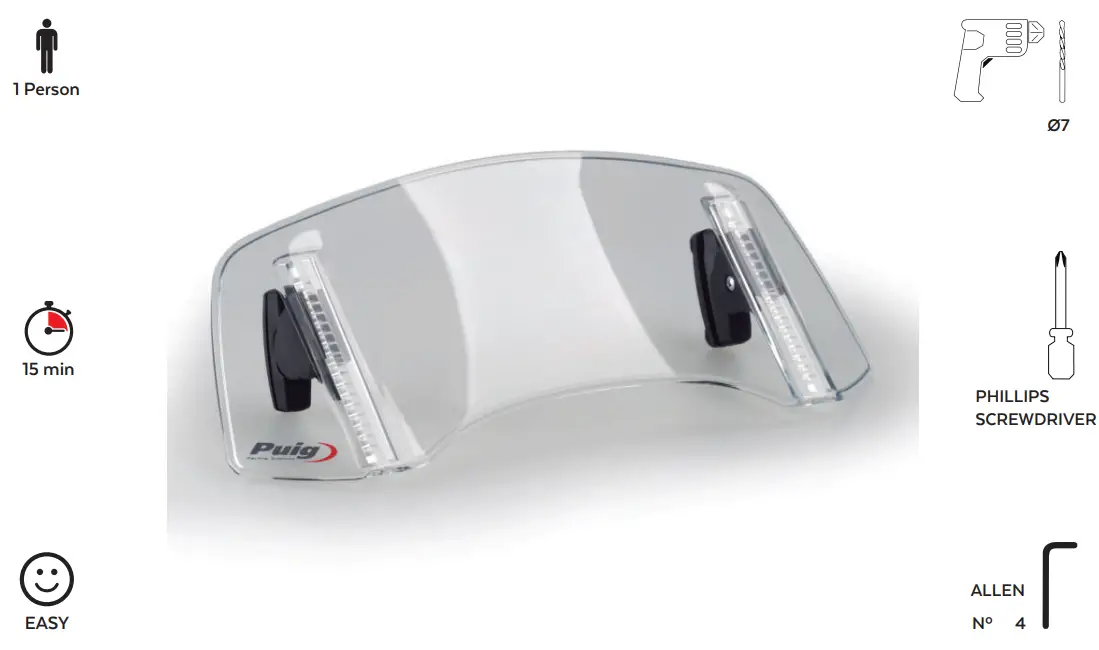

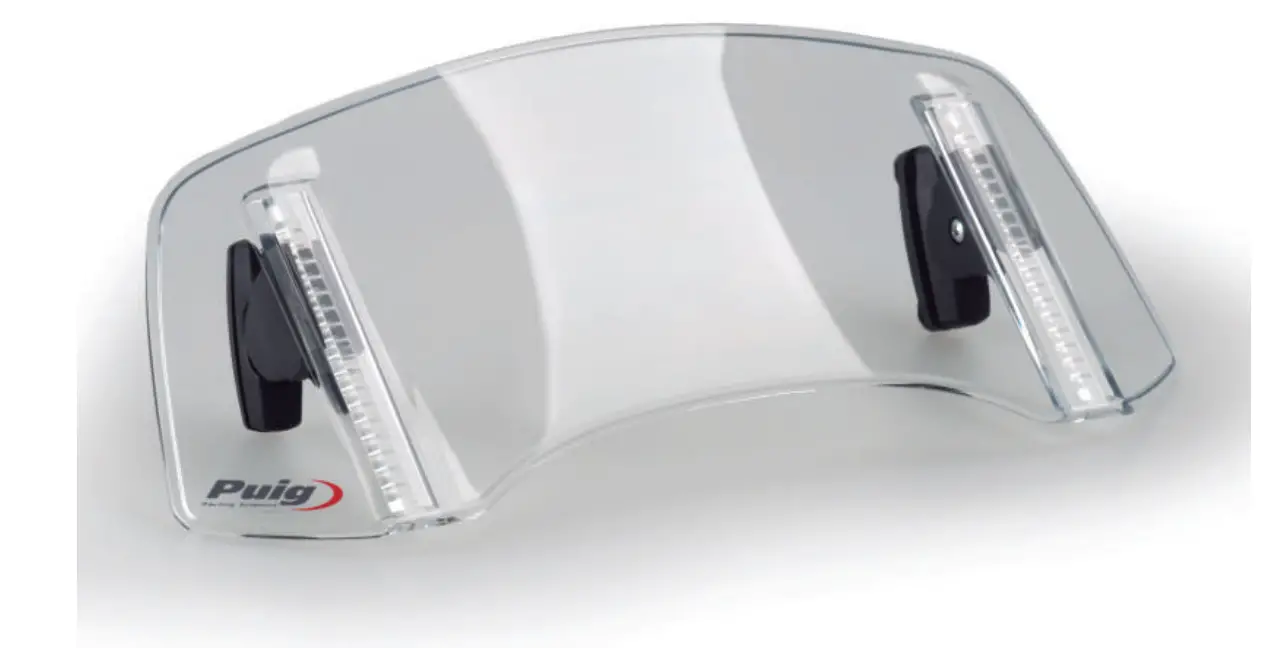

Puig 20763 2.0 Multi-Adjustable Visor
UNIVERSAL ( FIXED VERSI O N )
| ID | PART | DESCRIPTION | QTY | REF |
| 1 |  | Antiscratch policarbonate Visor | 1 | 20765H/WM3 |

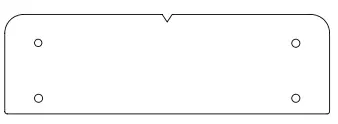

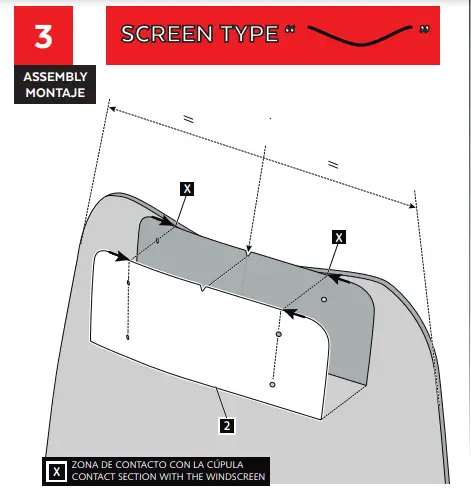

| 2 |  | Template | 1 | PLANTILLA-VISOR |

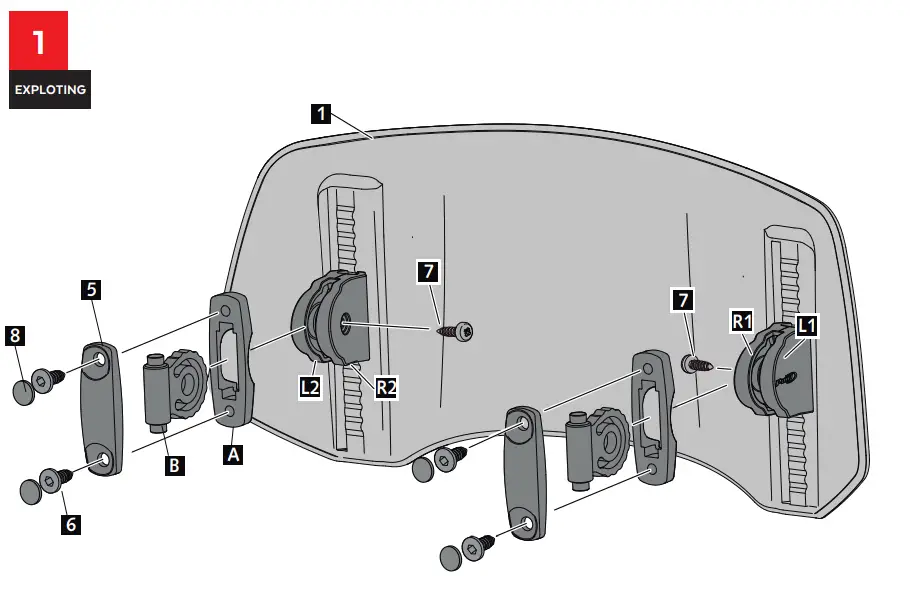

| 3 |  | Left Mechanism | 1 | See exploting page 2 |
| 4 |  | Right Mechanism | 1 | See exploting page 2 |

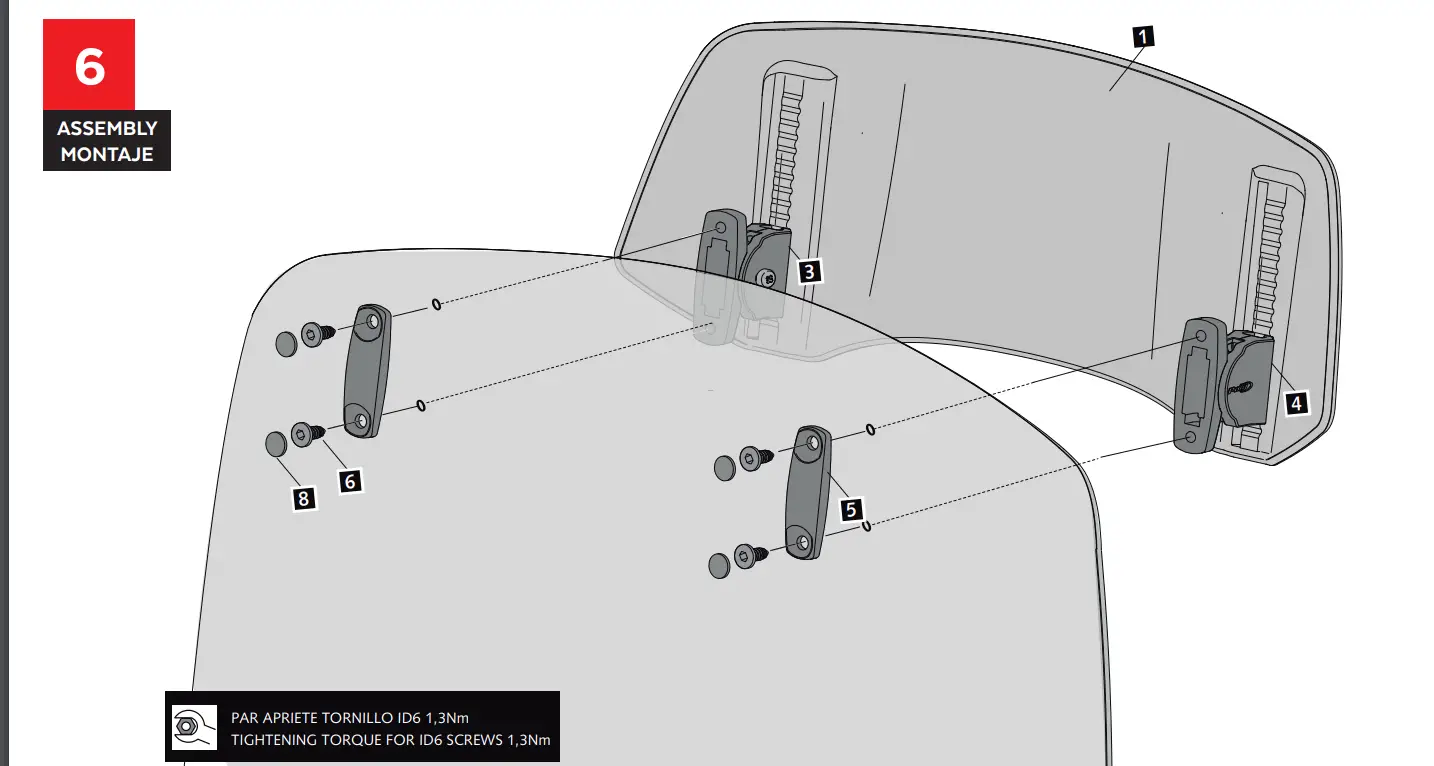

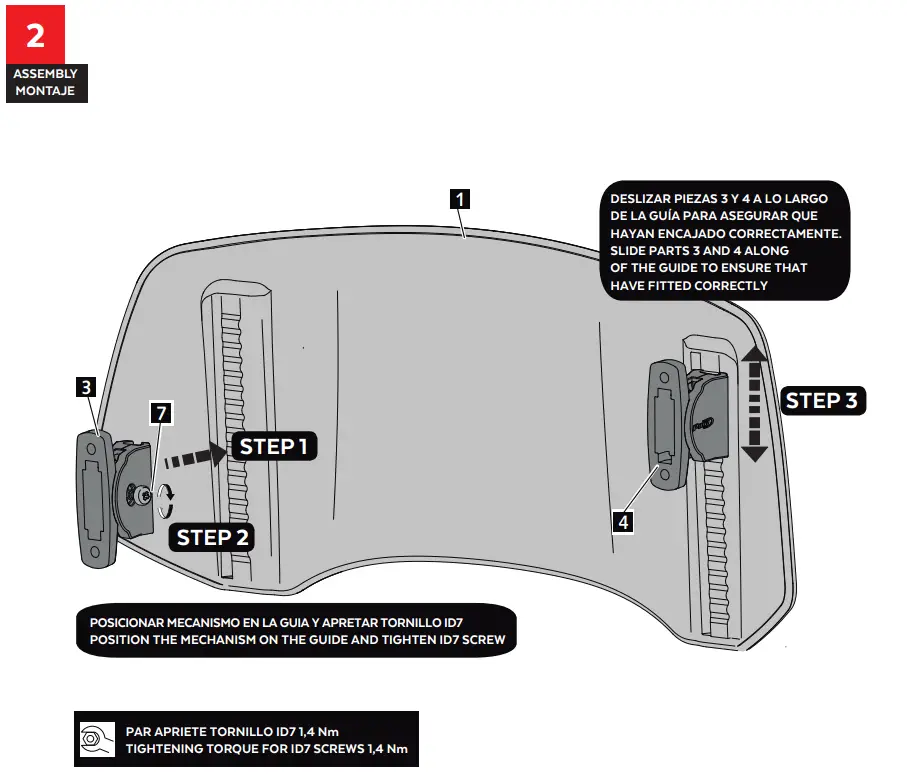

MOUNTING INSTRUCTION
| ID | PART | DESCRIPTION | QTY | REF |
| A |  | Axle part cover | 2 | TAPAEJE-VISOR– |
| B |  | Axle part | 2 | EJE-FIX-VISOR– |
| L2 |  | Logo cover 2 | 1 | TAPALAT-VISORL2 |
| R2 | Screw cover 2 | 1 | TAPALAT-VISORR2 | |
| L1 |  | Logo cover 1 | 1 | TAPALAT-VISORL1 |
| R1 | Screw cover 1 | 1 | TAPALAT-VISORR1 | |
| 5 |  | screen cover | 2 | TAPAFIX-VISOR– |
| 6 |  | S.T. 6,3 x14 Allen screw | 4 | TOZN00M60000258 |
| 7 |  | Ø3,5×9.5 DIN7981F screw | 2 | TORNI-D7981-885 |
| 8 |  | M6 Screw cap | 4 | TAPON——- 81 |
