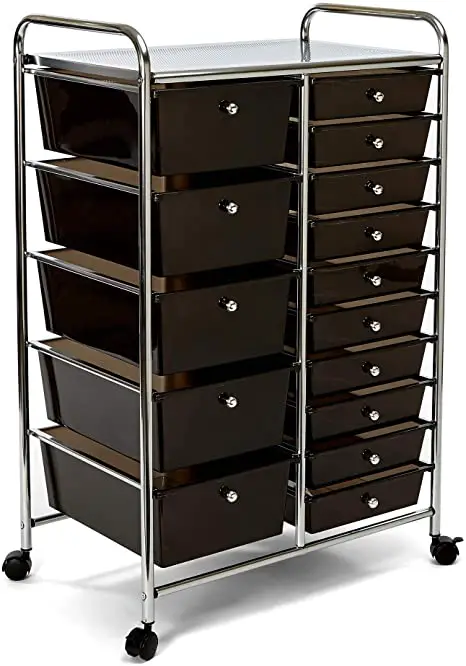

15-Drawer Organizer Cart
Model #: WEB483
Thank you for choosing Seville Classics! We hope that you enjoy your organizer cart. Please read through this user guide for parts list, assembly instructions, frequently asked questions, and contact info.

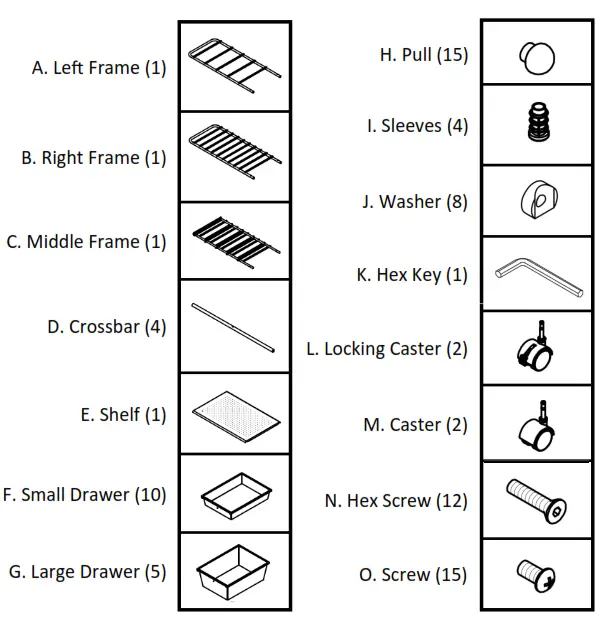

Parts List
Required Tools (not included)
Screwdriver
Please make sure you have all the parts on this list. If you’re missing parts, contact us for replacements at (800) 323-5565 or send an email to [email protected]
FAQs
Q. How big is it?
A. Unit measures 25.2″ W x 15.35″ D x 38.18″ H
Q. Can I use it without the casters?
A. No, the cart is not designed to be used without the casters.
Q. How much weight can it hold?
A. Weight capacity per drawer: 11 lbs. (5 kgs)
Weight capacity on top shelf: 16.5 lbs. (7.5 kgs)
Customer Service Information
Telephone: (800) 323-5565
Fax: (310) 533-3899
Hours: 8:30 AM – 4:30 PM (PST)
Email: [email protected]
Homepage: www.SevilleClassics.com

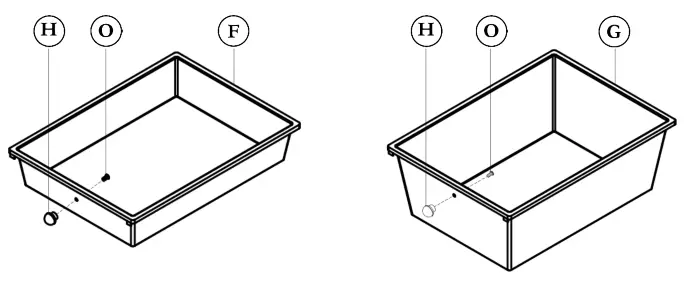

STEP 4.
Attach DRAWER PULLS (H) to DRAWERS (F,G) using SCREWS (O) and screwdriver.

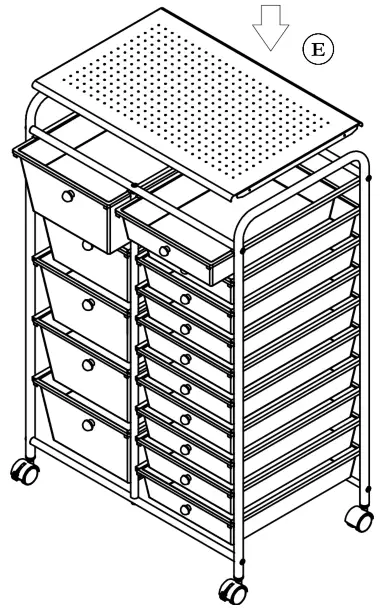

STEP 5.
Clip on SHELF (E) to crossbars. Insert DRAWERS (F,G) into guides carefully.
Assembly Instructions

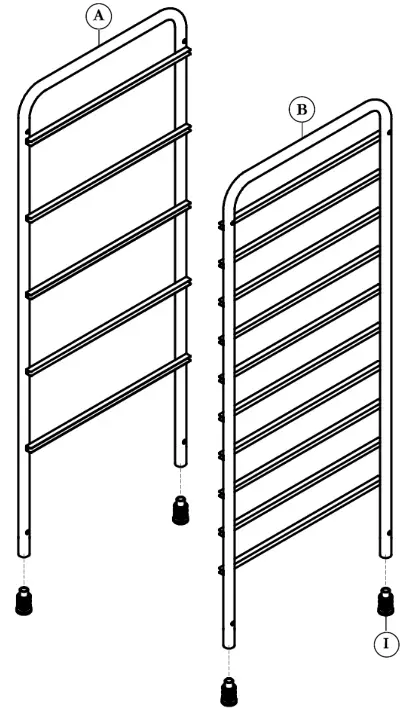

STEP 1. Insert SLEEVES (I) into bottoms of LEFT, RIGHT FRAMES (A,B).

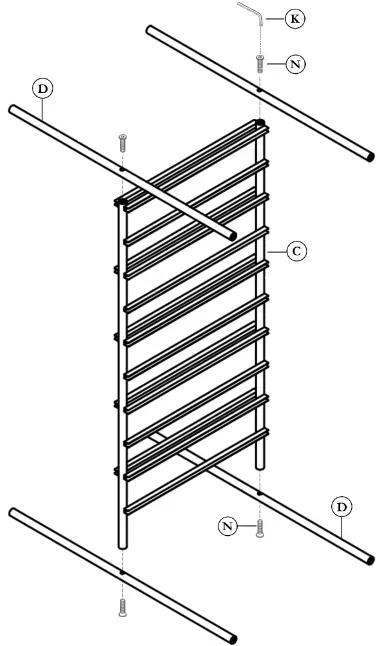

STEP 2.
Insert HEX SCREW (N) through center of CROSSBARS (D) into top and bottom ends of MIDDLE FRAME (C) poles.
Tighten with HEX KEY (K).
Repeat for all CROSSBARS (D).

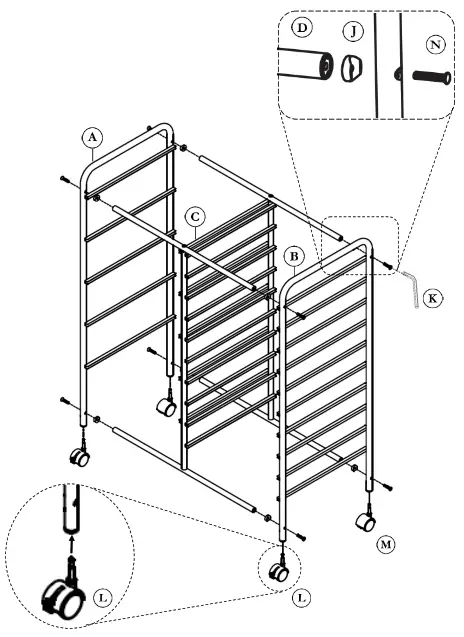

STEP 3.
Attach LEFT, RIGHT FRAMES (A,B) to CROSSBARS (D) with HEX SCREWS (N).
MAKE SURE to fit WASHERS (J) between crossbar ends and frames.
Insert flat side of washer into crossbar end. Curved side of washer MUST face frames.
Press LOCKING CASTERS (L) and CASTERS (M) into the sleeves installed in STEP 1. Tighten all HEX SCREWS (N) with HEX KEY (K).
📧
Seville Classics
