Ovela Pizzola 3 Drawer Cabinet User Guide

USER GUIDE

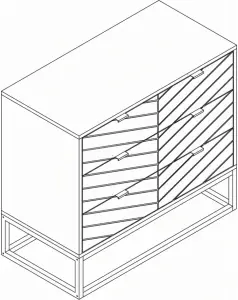

PIZZOLA 3 DRAWER CABINET

OVPIZ3DCNA, OVPIZ3DCWA

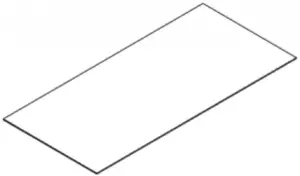

COMPONENTS

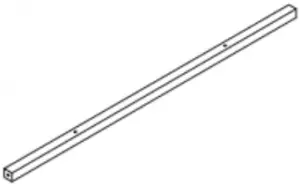

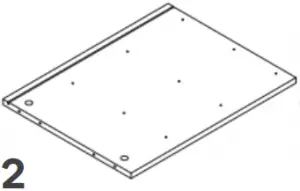

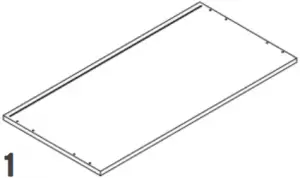

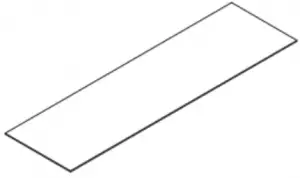

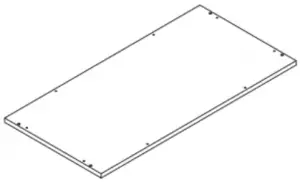

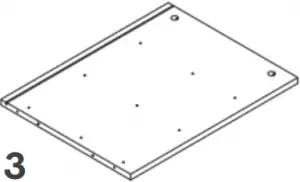

           5 (x2)                6                           7 (x2)                       8 (x2)

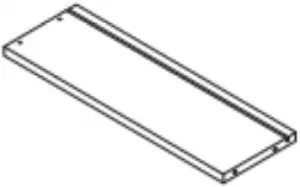

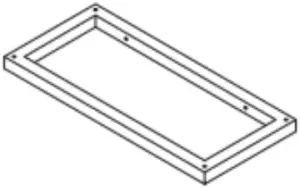

            9 (x2)                  10 (x3)                  11 (x3)                    12 (x3)

13 (x3)                           14 (x6)              15 (x3)

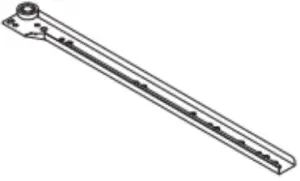

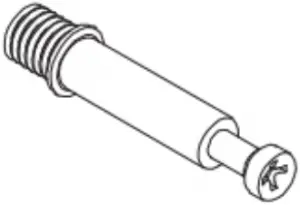

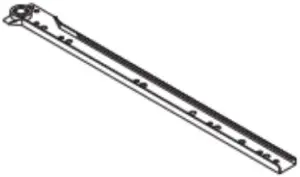

A (x3)                   B (x3)         C 3x12mm (x36)    D 6x35mm (x26)

E 15x10mm (x26) F 6x30mm (x8) G 4x30mm (x28) H 6x30mm (x16)

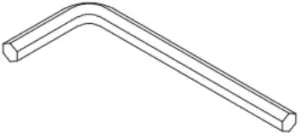

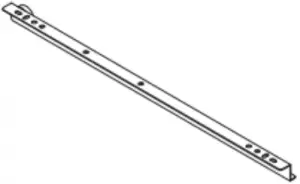

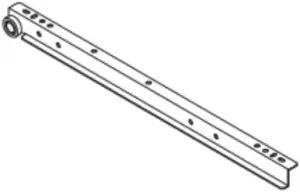

J (x1)                     K (x8)                      L (x3)                  M (x3)

N 4x12mm (x13)      O (x6)                   P 3x14mm (x8)        Q (x1)

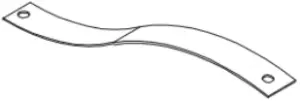

R 6x30mm (x1)              S 4x40mm (x1)

ASSEMBLY

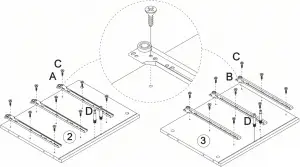

Step 1:

A (x3)         B (x3)       C (x18)     D (x4)

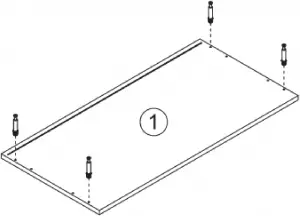

Step 2:

D (x4)

D

Step 3: Use a Phillips head screwdriver (not supplied) to secure E to D for parts 2 and 3.

E (x4)

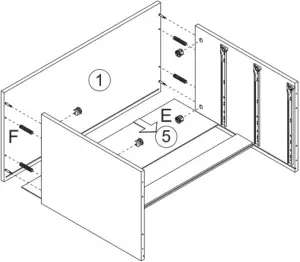

Step 4:

E (x4)    F (x4)

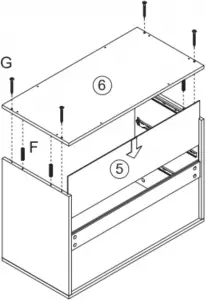

Step 5:

F (x4)            G (x4)

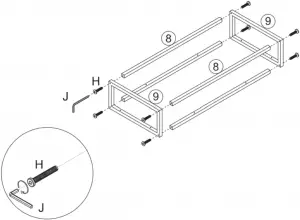

Step 6:

H (x8)           J (x1)

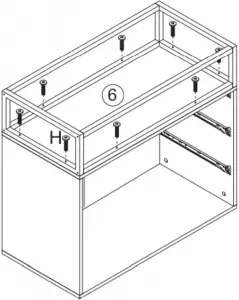

Step 7:

H (x8)         J (x1)

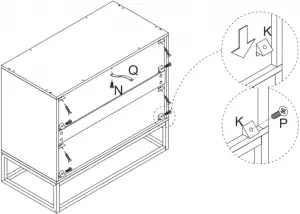

Step 8:

K (x8)    N (x1)    P (x8)     Q (x1)

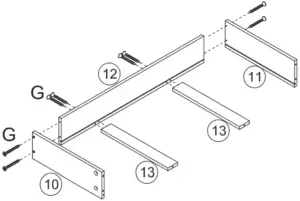

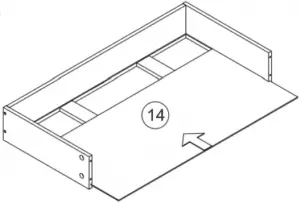

Step 9: Repeat this process three times to create three drawer assemblies.

G (x24)

x 3

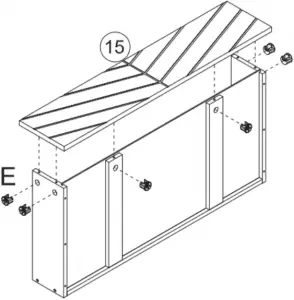

Step 10: Repeat this process for all three drawer assemblies.

D (x18)       E (x18)

D

x3

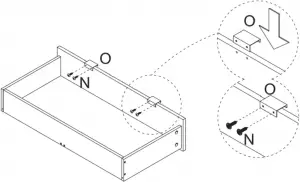

Step 11: Repeat this process for all three drawer assemblies.

O (x6)            N (x12)

x3

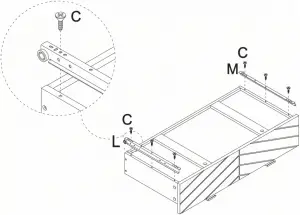

Step 12: Repeat this process for all three drawer assemblies.

C (x18)         L (x3)           M (x3)

x3

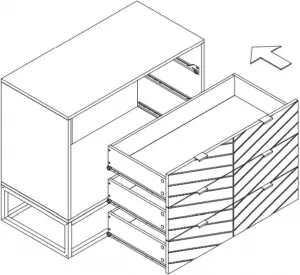

Step 13:

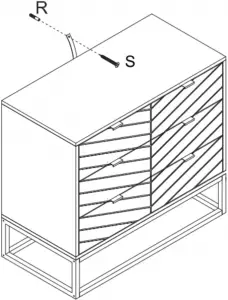

Step 14:

R (x1)       S (x1)

TOPPLING FURNITURE WARNING:

• It is strongly recommended that this product is permanently fixed to the wall.
• Please seek professional advice if you are in doubt of what fixing device to use.
• Regularly check that anchors are securely maintained.
• Stability of tall items may be affected by thick carpets or uneven floors.
• Do not place unanchored televisions on furniture.

Caution! For your safety when attaching the anchor fixings, please note the following: Check any electrical wires or plumbing inside the wall before drilling any holes (if you are unsure, please seek professional advice from a qualified tradesperson).

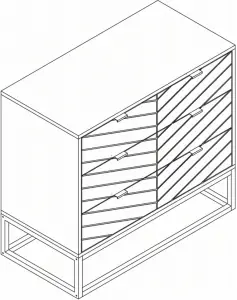

Assembly complete.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
