ovela OVALICEFCWA Alice Filing Cabinet

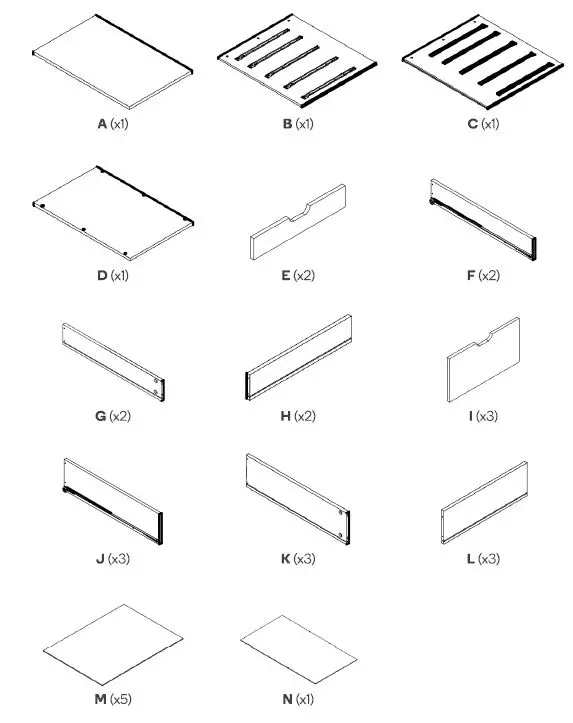

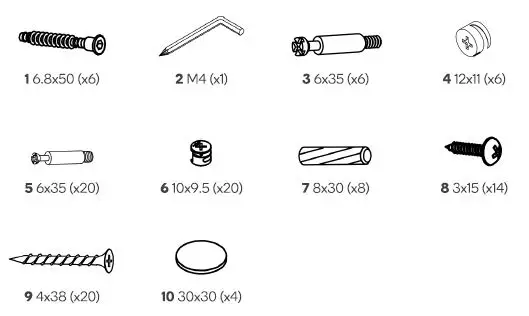

COMPONENTS
ASSEMBLY

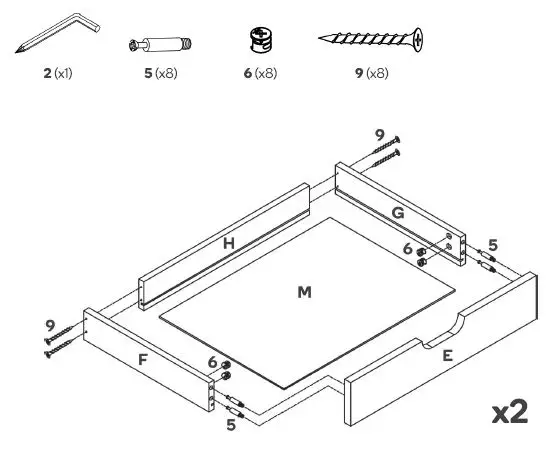

Step 1: Using theAllen key/Screwdriver (2), connect one part each of F and G to H with 9. Slide M through the grooves of F and G.
Insert 5 into F and G and secure E to parts F and G. Ensuring the arrow is pointing towards the direction that 5 is protruding from, using a Phillips screwdriver (not supplied), secure 6 to 5 on parts F and G.
Repeat the whole process to create two small drawers.

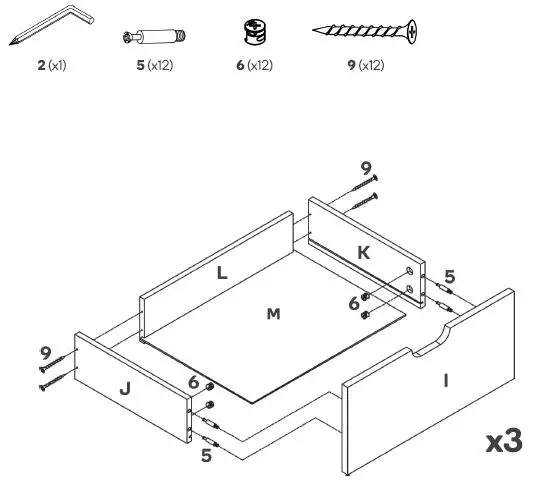

Step 2: Using the Allen key/Screwdriver (2), connect one part each of J and K to L with 9. Slide M through the grooves of J and K.
Insert 5 into J and Kand secure I to parts J and K. Ensuring the arrow is pointing towards the direction that 5 is protruding from, using a Phillips screwdriver, secure 6 to 5 on parts J andK.
Repeat the whole process two more times to create three large drawers.

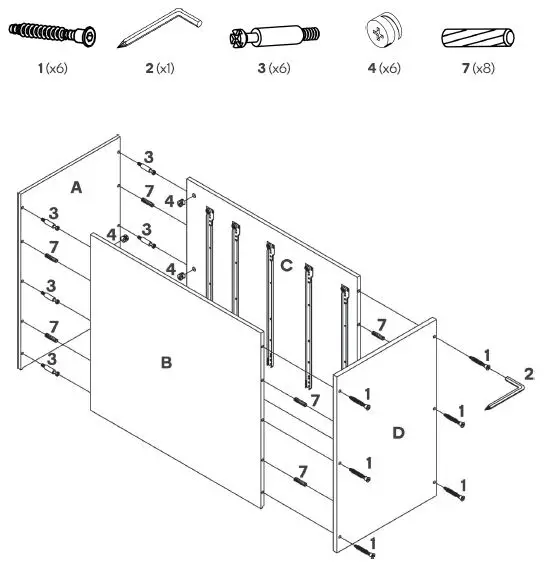

Step 3: Insert 7 into two sides of parts Band C. Using the Allen key/Screwdriver (2), attach D to parts Band C with 1.
Insert 3 into part A then connect part A to parts Band C. Ensuring the arrow is pointing towards direction that 3 is protruding from, using a Phillips screwdriver, secure 4 to 3 on parts Band C.

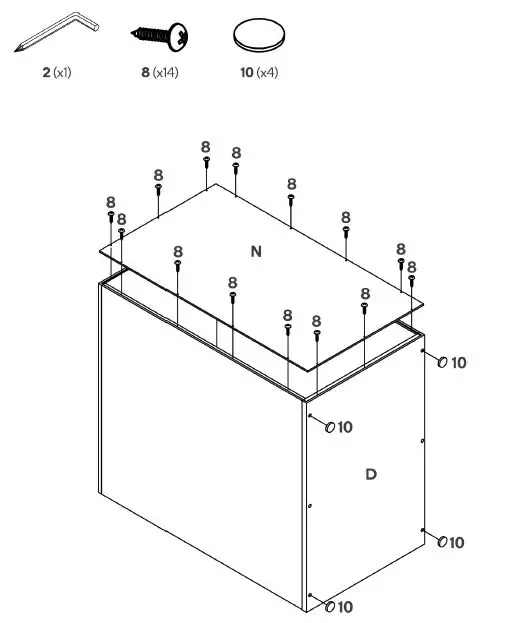

Step 4: Using the Allen key/Screwdriver (2), secure N onto the cabinet assembly with 8. Peel the adhesive off10 and stick onto the four corners of D.

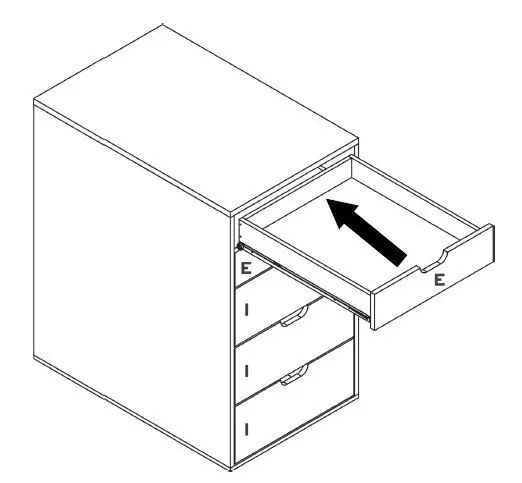

Step 5: Insert the small drawers into the top two slots of the cabinet assembly. Insert the large drawers into the bottom three slots of the cabinet assembly.
Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com k<.!Jgan.com
