Danfoss Svl Housings Brazed Versions Installation Guide

Danfoss SVL Housings Brazed Versions Installation

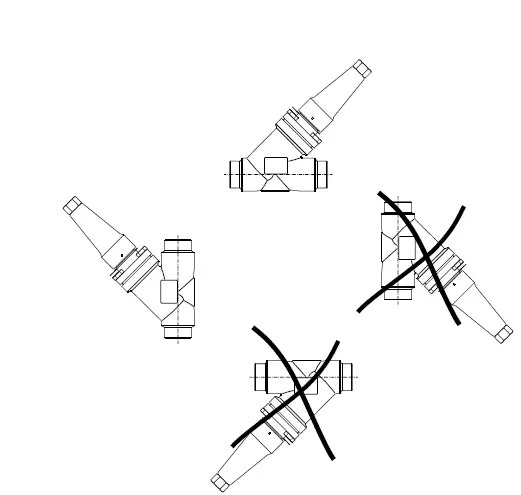

Possible orientations

Flow directions

• Recommended: 100%
• Reduced flow: 90 – 100%
• Ag40 minimum 450 – 700 °C

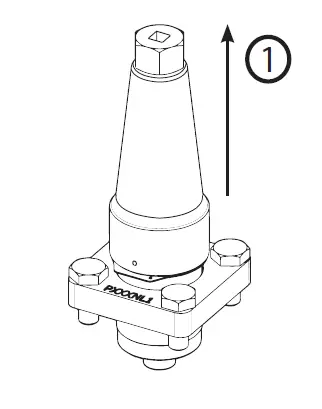

1. Remove topcover/insert
2. Clean connections with cleaning agent

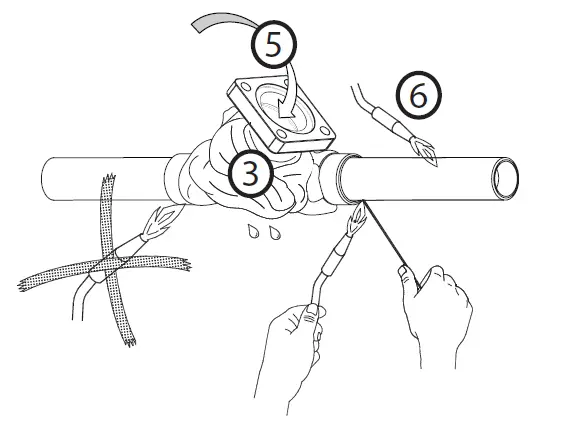

3. Wrap around wet cloth
4. Apply flux on piping ends
5. Apply inert gas internal
6. Heat up piping
7. Braze with recommended brazing material and within temperature range specified
8. Remove risidual flux

Any intormation, including, but not limited to information on selection of product, its application or use, product design, weight, dimensions, capacity or any other technical data in product manuals,
Danfoss | Climate Solutions | 2022.06 AN29733030672201-000201 | 1
