A New Language of Technology
WIRE-FREE SPEEDY
Quick Scan WL5
Wireless CMOS
Imaging Barcode Reader
3-in-1
Wireless|Bluetooth|Wired

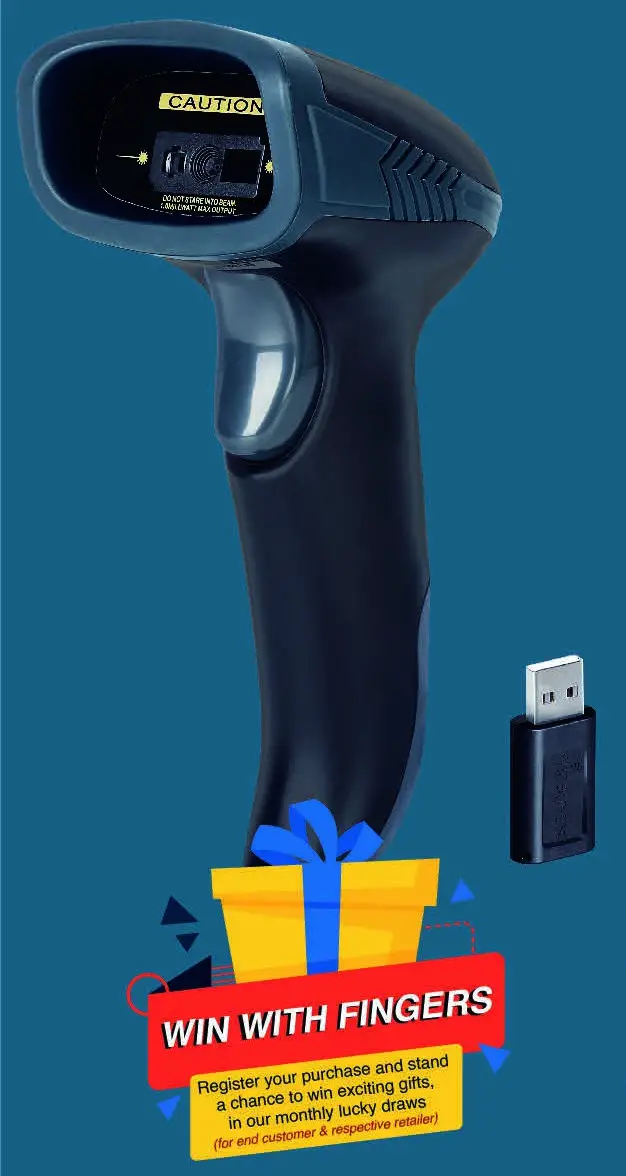

Powered by latest Quick Scan & CMOS Image Technology, FINGERS 2D-QuickScan WL5 Barcode Reader delivers superior performance that scans 1D/2D barcodes effortlessly with whopping 200 scans per second!
Reliability is its middle name and can be used as a Wired or Wirelessly (through USB Receiver or Bluetooth) depending on the need of the hour.

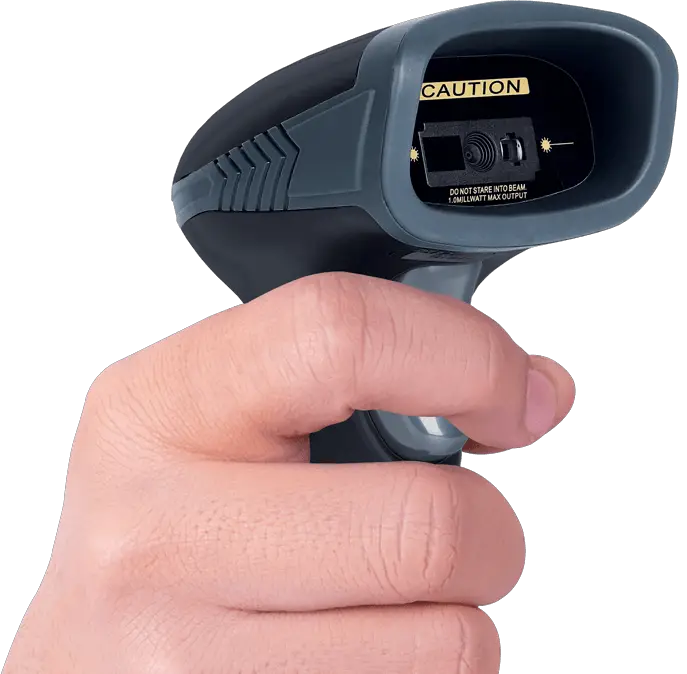

Ergonomically designed with handheld form factor, it is engineered for superior comfort and highly accurate scanning, thereby eliminating wasted seconds and improving users’ efficiency. From retail to POS to warehouse to distribution centers, these barcode scanners comes in handy and meet a wide range of scanning needs in various environments and applications.
| 1 | Wireless – 2.4 GHz (with receiver) | |
| 2 | Bluetooth | |
| 3 | Wired (with Type-C cable) |
 | Wireless 2D Imager | |
| Enabled with Quick Scan & CMOS Image Technology | ||
| Reads 2D Barcodes – Can interpret various 1D/2D codes* | ||
| Quick Plug-n-Play with USB Bluetooth Receiver | ||
| Indicators: Beeper, LED | ||
| BIG Battery: Capacity to scan up to 20,000 barcodes in single charge | ||
| Works smoothly with Bluetooth-enabled devices such as mobile phones, tablets and laptops | ||
| Wireless BT transmission distance range of 30 – 50 meters (Open Space) |
| General | Type | Wireless (BT) | Wired |
| Interface | USB Receiver | |
| In-built Memory | 4 MB | |
| Indicators | Beeper, LED | |
| Operation Mode | Trigger | |
| Barcode Type Support | 1D: EAN, UPC, Cade 39, Code 93, Code 128, UCC/EAN 128, Codabar Interleave 2 of 5, ITF-6, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 2D: OR Code, Data Matrix, PDF 417, Aztec, Maxicode, Mico QR, Hanxin Code | |
| Connection | BT Version | V4.0 |
| Frequency | 2402 MHz ~ 2480 MHz | |
| Effective Range | 30 – 50 meters (Open Space) | |
| Optical | Light Source | 617nm LED Aimer, White LED |
| Scan Rate | 200 scans/sec | |
| Resolution | 1D≥5mil, 2D≥10 mil | |
| Print Contrast Ration | 20% | |
| Depth of Field | EAN13 50-200 mm (13mil); OR 25-240 mm (20 mil); PDF417 30 – 130 mm (6.67 mil) | |
| Electrical | Input Voltage | DC 5 V +5% |
| Working Current | 280 mA | |
| Standby Current | 0 mA | |
| Stleep Mode | 26 mA | |
| Battery | Battery Type | Lithium |
| Battery Capacity | 2200 mAh | |
| Charging Type | USB Type-C cable | |
| Charging Time | About 5 hours | |
| Physical | Housing Material | ABS+PC |
| Charging cable Type | USB Type-C (1.20 meters) | |
| Dimensons | 15.4 (H) x 8.5 (W) x 6.2 (L) cm | |
| Weight | 201 grams (without receiver) | |
| Colour | Black+Grey | |
| Enviroment & Safety Conformance | Operating Temperature | 0°C – 40°C |
| Operating Humidity | 5% — 85% RH (Non-condensing) | |
| Storage Temperature | 40°C – 70°C | |
| Shock Resistance | 1.5m drops |
In the box
1N- FINGERS 2D-QuickScan WL5
1N- USB Receiver
2 N- USB Type-C Cable
1N- Quick Start Guide
1N- Brand Note
fingers.co.in
- Images shown may vary from actual product.
- Specifications, features an appearance are subject to change without notice.
- All logos, brands, trademarks and products of their respective owners.
- Product warranty is governed by warranty terms mentioned on www.fingers.co.in
- This product falls under r0waste (Management & Handiling ) Rules, 2011, Four proper disposal method, visit our website www.fingers.coin
