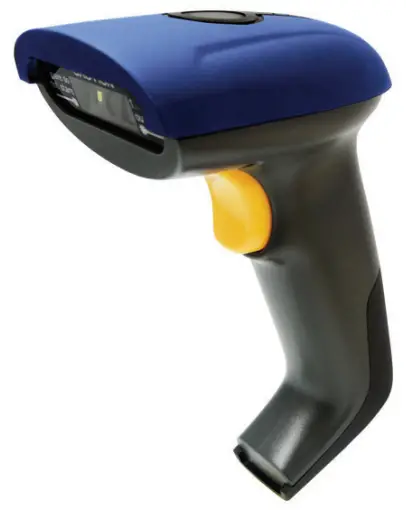

Marson Mt8220 2d Handheld Barcode Scanner User Guide (+ PDF)

2D Handheld
Barcode Scanner
Quick Guide

2D Handheld Barcode Scanner Quick Guide (Rev4) P/N: 8013-0070030

FCC WARNING STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

CANADIAN DOC STATEMENT
This digital apparatus does not exceed the Class B limits for radio noise for digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
CE MARKING AND EUROPEAN UNION COMPLIANCE
Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC.
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
ROHS STATEMENT OF COMPLIANCE
This product is compliant to Directive 2002/95/EC.
NON-MODIFICATION STATEMENT
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

WARNING AND CAUTION

Take any metals into contact with the terminals in connectors.
Use the scanner where any inflammable gases.

If the following condition occurs, immediately power off the host computer, disconnect the interface cable, and contact your nearest dealer.

Smoke, abnormal odors, or noises come from the scanner.
Drop the scanner so as to affect the operation or damage its housing.

Do not do the behavior below.

Put the scanner in places with excessively high temperatures such as exposed under direct sunlight.
Use the scanner in extremely humid areas or drastic temperature changes.
Place the scanner in oily smoke or steam environment such as a cooking range.
Be covered or wrapped up the scanner in the bad-ventilated areas such as under cloth or blanket.
Insert or drop foreign materials or water into scanning windows or vents.
Use the scanner while the hand is wet or damp.
Use the scanner with anti-slip gloves containing plasticizer and chemicals or organic solvents such as benzene, thinner, insecticide, etc to clean the housing. Otherwise, it could not result from fire and electrical shock but housing may be broken and injured.
Scratch or modify the scanner and bend, twist, pull or heat its interface cable.
Put heavy objects on the interface cable.

Do not stare at the light source from the scanning window or do not point the scanning window at other people’s eyes or eyesight may be damaged by direct exposure under the light.

Do not put the scanner on an unstable or inclined plane. The scanner may drop, creating injuries.
Once the interface cable is damaged such as exposed or broken copper wires, stop using immediately and contact your dealer. Otherwise, it could result in fire or electrical shock.

Contents hide

8 Documents / Resources

9 Related Posts

SPECIFICATIONS

Light source White LED, visible red LED
Sensor 640 x 480
Scan rate 30 frames/sec
Resolution 5mil/ 0.125mm
PCS 10%
Depth of Field 5 Mil Code39: 29 – 109mm
(Typical) 13 Mil UPC/EAN: 37 – 306mm
15 Mil QR Code: 25 – 186mm
6.67 Mil PDF417: 23 – 106mm
10 Mil DataMatrix: 14 – 108mm
Dimension L165 x W65 x H75 mm
Weight 120g
Connector USB Type A
Cable 180cm/70.87in (Interchangeable)
Interface USB HID USB VCP, PS/2 (Optional)
Indicator LED, Buzzer
Voltage 5VDC±5%
Working Current < 160mA
Standby Current < 55mA
Operating Temp. -20 to 60°C (-4°F to 140°F)
Storage Temp. -30 to 70°C (-22° F to 158°F)
Ambient Light 100,000 lux (Sunlight)
Drop Durability 1.5M
Symbologies QR Code, DataMatrix, PDF417, Aztec, and all major 1D barcodes

DIMENSIONS

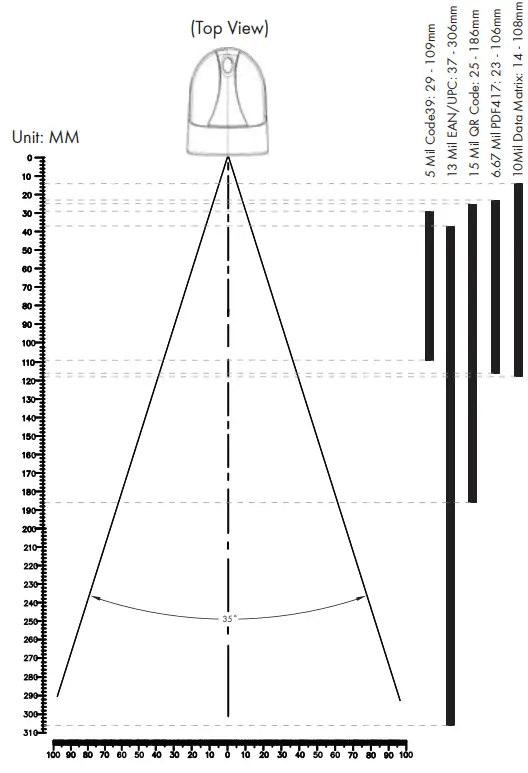

SCANNING RANGE

BEEPER INDICATION

Single Short Beep	Good read
Three beeps	Successful setup
Four beeps	Power up

LED INDICATION

Green

Good read

GETTING STARTED

The scanner works as a USB keyboard. Make sure your host device supports a USB keyboard before use.
Plug the scanner into the USB port of your host device. The scanner will emit four beeps at power-up.
The OS will automatically install a USB driver for the scanner if it is connected to your host device for the first time. Wait until the installation finishes.
Open Notepad or any application that can accept keyboard input. Try scanning some random barcodes and the barcode data will be displayed.
