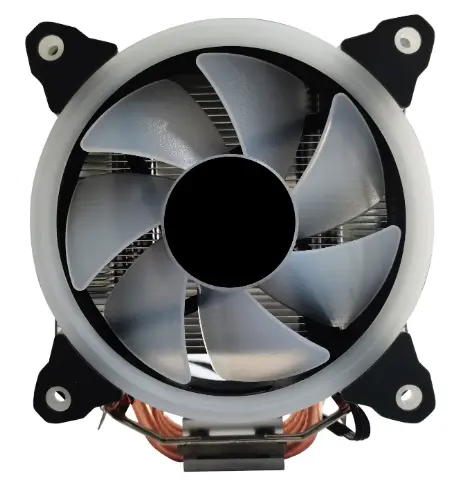

gembird CPU-HURACAN-X30 CPU Cooling Fan

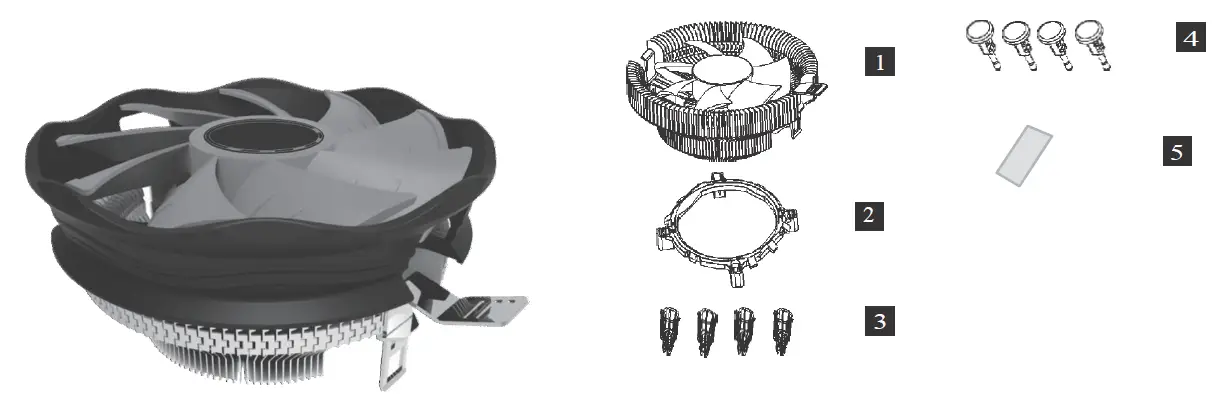

COMPONENTS
INSTALLATION GUIDE

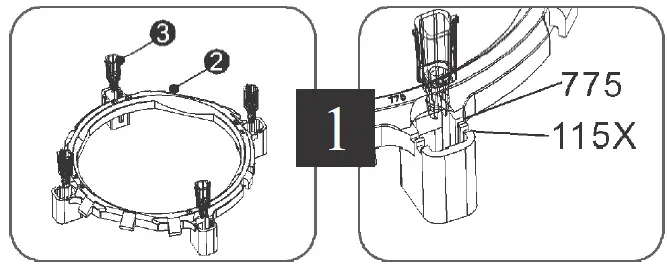

- Insert the 4 clear connectors into the appropriate platforms upports 775/1165.

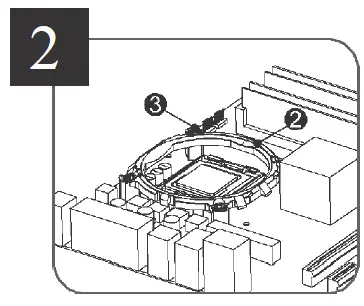

- Align the bracket with the transparent connectors inserted into the 4 holes of the motherboard and install it on the motherboard. Align the bracket with the clear connectors inserted into the 4 holes of the motherboard and mount it on the motherboard.

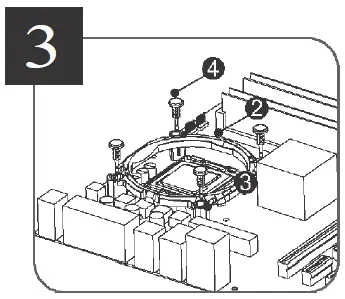

- In the prepared transparent connectors, insert the 4 black connectors and then press down.

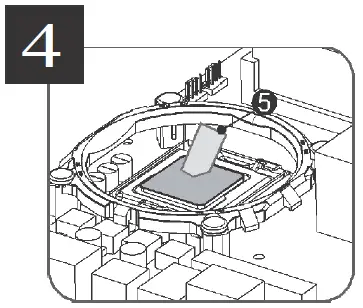

- Spread the thermal paste evenly over the processo.r

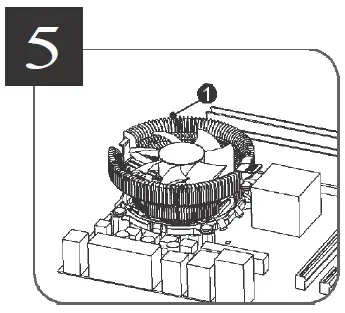

- Align the side of the heat sink clamp with the clamp point of the bracket, then press down on the clamp point of the bracket on the other side.

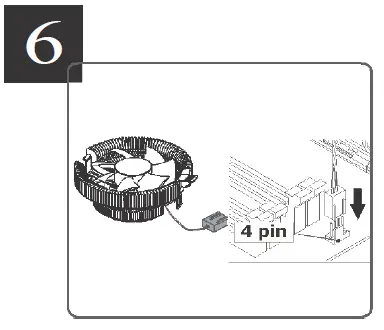

- The fan power cable should be connected to the 3-pin or 4-pin oscket of the motherboard.
Declaration of conformity
This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gmb.nl/certificates
Waste disposal: The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.
CPU-HURACAN-X30 CPU cooling fan, 12 cm, 45 W, 4 pin
