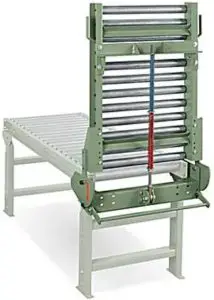

ULINE Conveyor Gates User Guide
TOOL NEEDED
- 9/16″ (14 mm) Wrench
PARTS

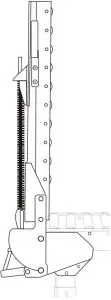

- Gate x 1

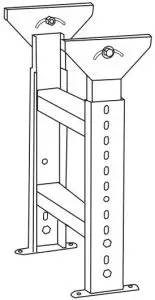

- H-Stand x 4 (not included)
- Steel Angle x 2
- Gravity Roller x 2 (not included)
- 9/16″ (14 mm) Nut x 8
- 9/16″ (14 mm) Bolt x 8
- Washer x 8
- Split Washer x 8
INSTALLATION
NOTE: At least two people are needed to install gate.

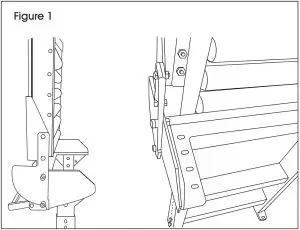

- While gate is at a 90° angle, line up bolt holes with H-stand holes. (See Figure 1)

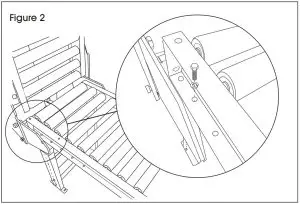

- Place gravity roller section on top of gate and line up with bolt holes in gate and H-stand. (See Figure 2)

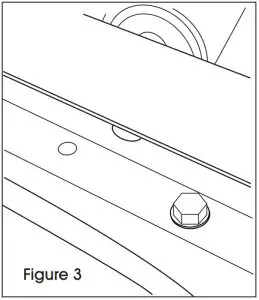

- Insert two bolts with split washers into lined-up bolt holes and hand tighten with washers and nuts to Repeat for opposite side. Once secured, use wrench to tighten.(See Figure 3)

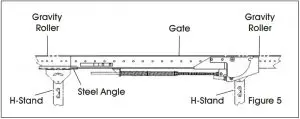

- On second gravity roller section, line up steel angle holes with H-stand. The steel angle should overhang the H-stand. Place gravity roller on top and line up bolt holes. Insert two bolts with split washers into lined-up bolt holes and hand tighten with washers and nuts to secure. Repeat for opposite side. Once secured, use wrench to tighten. (See Figures 4-5)

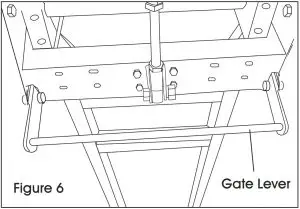

- Lift gate lever to lower gate onto steel angle. (See Figure 6)
