Industrial Level 10G Multi Giga SFP+ MiniGBIC
Transceiver, Up to 10KM, Hot-pluggable, Auto-fill back
ISFP-LR-10G-10KM

10G SFP+ transceiver	1310nm Up to 10KM
Single Mode Dual Fiber Industrial-level	LC Duplex Connector
DDM Function	ESD Protection
Hot Pluggable	-40°C~+85°C

Contents hide

5 Documents / Resources

5.1 References

6 Related Posts

Overview

The AirLive ISFP-LR-10G-10KM is a low-power, high-performance, and cost-effective single-mode Industrial level SFP+ Fiber transceiver for serial optical data communication applications up to 10Gbps and 10KM in Industrial environments. The low jitter and high sensitivity module is intended for multi-mode dual fiber and operates at a nominal wavelength of 1310nm, the higher operating temperature of -40°C ~ +85°C makes the module ideally suited for Industrial and higher temperature areas, the module is hot-pluggable.
The transceiver incorporates TX Disable control, TX-Fault, and RX_LOS monitor functions. It is a duplex LC connector transceiver designed to work on Multi-Gigabit Ethernet applications and to provide IEEE802.3ae compliant link and Class I Laser safety compliant link.
The suitable applications such as High-speed storage area networks, computer cluster cross-connect, customized high-speed data pipes, and more.

Features

10Gbps Fiber Mini GBIC SFP+ Transceiver
Single-mode SFP+ fiber
Duplex LC connector Interface
Wavelength 1310nm DFB Laser and PIN photo detector
10Gbps high speed
Distance up to 10KM

Low Power consumption < 1.0W
Hot-pluggable capability
Very low EMI
Excellent ESD protection
Compatible with SFF8472
Operating Temperature：-40°C ~ +85°C

Application

Fiber Channel Infrastructure STM-16 Optical Interface	ATM Switches and Routers SDH/SONET Switch Infrastructure
Application Environment examples
Bank AirPort Hotel Expressway	Petrochemical Industry Metro Factory

Transmitter Operating Characteristic Optical, Electrical

Transmitter
Parameter	Symbol	Min.	Typical	Max.	Unit
Centre Wavelength	λc	1290	1310	1330	nm
Sid-Mode Suppression Ratio	SMSR	35	–	–	dB
Average Output Power	Po	-5	–	+0.5	dBm
Extinction Ratio	Er	3.5			dB
Dispersion Penalty				3.2	dB
Relative Intensity Noise	RIN12OMA			-128	dB/Hz
Total jitter	Tj			215	PS
Input Differential Impendence	Zin	90	100	110	Ohm
Data Input Swing Differential	Vin	180		700	mV
TX Disable – Disable		2.0		Vcc	V
TX Disable – Enable		0		0.8	V
TX Fault – Assert		2.0		Vcc	V
TX Fault — De-Assert		0		0.8	V

Receiver Operating Characteristic Optical, Electrical

Receiver
Parameter	Symbol	Min.	Typical	Max.	Unit
Centre Wavelength	λc		1310		nm
Receiver Sensitivity	Rsen	–	–	-13	dBm
Receiver Overload	Rov			-12	dBm
Return Loss		-3			dB
LOS Assert	LOSA	-28			dBm
LOS De-Assert	LOSD			-14	dBm
LOS Hysteresis		0.5		4
Output differential impendence	Zout	–	100	–	Ohm
Data Input Swing Differential	Vout	300	–	800	mV
Rx LOS – Assert	–	2.0	–	Vcc	V
Rx LOS — De-Assert	–	0	–	0.8	V

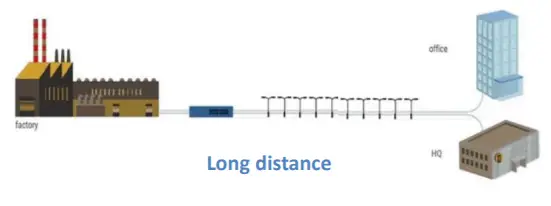

Industrial level Fiber for Long Distance up to 10Km, 10Gbps, auto- fallback

Extend the network further with the AirLive network switches and fiber modules. Use the Industrial SFP+ modules in the SFP+ ports which also
supports DDM and offers more information about the fiber connection and makes it easier to find any faults or bad connections.

Specification

Model

AirLive ISFP-LR-10G-10KM

Hardware

Power Supply Voltage
3.15V~3.45V
Typical Power Supply Voltage: 3.3V
Standard
Compliant with IEEE 802.3ae
Compliant with Digital Diagnostic SFF-8472
Compliant with IEC-60825
DDM Support
ESD Protection
Total Supply Current:
300mA
Data Rate:
103125 Mbps
Power Dissipation
Max 1.0 W
Transmitter (Electrical – Optical)
Centre Wavelength:
– Min.:1290nm
– Typical: 1310nm
– Max.: 1330nm
Average Output Power Min -5 ~ +0.5dBm
Extinction Ratio: 3.5dB
Operating Data Rate: 10Gbps
Tx Input Differential. Voltage:
– Min. 180 Mv
– Max. 700 mV
Tx Fault Output Voltage – Assert:
– Min. 2.0V
– Max. Vcc
Tx Fault Output Voltage – De-Assert:
– Min. 0V
– Max. 0.8V
Receiver -Optical, Electrical
Center Wavelength:
– Typical 1310nm
Receive Sensitivity In Average Power:
– Max. -13dBm
Los Assert: -12dB
Los De-Assert: -28dBm
Los Hysteresis
– Min. 0.5
– Max. 4
Overload: -12dBm
Data Input Swing Differential Voltage
– Min. 180mV
– Max. 700mV
