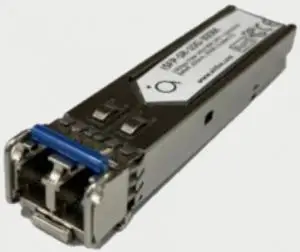

airlive Industrial Level 10G Multi Giga SFP + MiniGBIC Transceiver User Guide
Overview
The AirLive ISFP-SR-10G-300M is a low power, high performance and cost-effective single mode Industrial level SFP+ Fiber transceiver for serial optical data communication applications up to 10Gbps and 300M in Industrial environments. The low jitter and high sensitivity module is intended for multi mode dual fiber and operates at a nominal wavelength of 850nm, the higher operating temperature from -40°C ~ +85°C makes the module ideally suited for Industrial and higher temperature areas, the module is hot pluggable.
The transceiver incorporates TX Disable control, TX-Fault, and RX_LOS monitor functions. It is a duplex LC connector transceiver designed for use in Gigabit Ethernet applications and to provide IEEE802.3ae compliant link and Class I Laser safety compliant link.
The suitable applications are such as High-speed storage area networks, computer cluster cross-connect, customized high-speed data pipes, and more.
Features
- 10Gbps Fiber Mini GBIC SFP+ Transceiver
- Multi mode SFP+ fiber
- Duplex LC connector Interface
- Wavelength 850nm VCSEL Laser and PIN photo detector
- 10Gbps high speed
- Distance up to 300M
- Low Power consumption < 1.0W
- Hot-pluggable capability
- Very low EMI
- Excellent ESD protection
- IEEE802.3ae
- Operating Temperature: -40°C ~ +85°C
Application
- Fiber Channel Infrastructure
- STM-16 Optical Interface
- ATM Switches and Routers
- SDH/SONET Switch Infrastructure
Application Environment examples
- Bank
- AirPort
- Hotel
- Expressway
- Petrochemical Industry
- Metro
- Factory
Transmitter Operating Characteristic Optical, Electrical
| Transmitter | |||||
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Centre Wavelength | Xc | 840 | 850 | 860 | nm |
| Spectral width (RMS) | AA. | 0.45 | nm | ||
| Average Output Power | Po | -5 | 0 | dBm | |
| Extinction Ratio | Er | 3.0 | dB | ||
| Dispersion Penalty Relative Intensity Noise | 4. | dB dB/Hz | |||
| R I N120MA | -128 | ||||
| Total jitter | Tj | 215 | PS | ||
| Input Differential Impendence | Zin | 90 | 100 | 110 | Ohm |
| Data Input Swing Differential | Vin | 180 | 700 | mV | |
| TX Disable – Disable | 2.0 0 | Vcc | V | ||
| TX Disable – Enable | 0.8 | V | |||
| TX Fault – Assert | 2.0 | Vcc | V | ||
| TX Fault — De-Assert | 0 | 0.8 | V |
Receiver Operating Characteristic Optical, Electrical
| Receiver | |||||
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Centre Wavelength | xc | 850 | nm | ||
| Receiver Sensitivity | Rsen | -12. | dBm | ||
| Receiver Overload | Roy | -11. | dBm | ||
| Return Loss LOS Assert | 0 | dB | |||
| LOSA | 12 | dB | |||
| LOS De-Assert | LOSD | -25 | dBm | ||
| LOS Hysteresis | 0.5 | ||||
| Output differential impendence | Zout | 100 | Ohm | ||
| Data Input Swing Differential | Vout | 300 | 800 | mV | |
| Rx_LOS – Assert | 2.0 | Vcc | V | ||
| Rx_LOS — De-Assert | 0 | 0.8 | V |

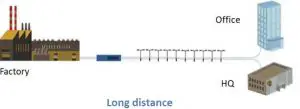

Fiber for Long Distance up to 300m
Extend the network further with the AirLive network switches and fiber modules. Use the SFP+ modules in the SFP+ ports which also supports DDM and offers more information about the fiber connection and makes it easier to find any faults or bad connections.
Specification
Model
Hardware
- Power Supply Voltage
- 3.15V~3.45V
- Typical Power Supply Voltage: 3.3V
- Standard
- Compliant with IEEE 802.3ae
- Compliant with Digital Diagnostic SFF-8472
- Compliant with IEC-60825
- DDM Support
- ESD Protection
- Total Supply Current:
- 300mA
- Data Rate
- 10 Gbps
- Power Dissipation
- Max 1.0 W
- Transmitter (Electrical – Optical)
Centre Wavelength:- Min.:840nm
- Typical: 850nm
- Max.: 860nm
- Average Output Power: -5, Max -0dBm
Extinction Ratio: Min: 3.0dB
Operating Data Rate: 10Gbps
Tx Input Differential. Voltage:- Min. 180 Mv
- Max. 700 mV
Tx Fault Output Voltage – Assert: - – Min. 2.0V
- – Max. Vcc
- Receiver -Optical, Electrical
Center Wavelength:- Typical 850nm
Receive Sensitivity In Average Power: - Max. -11.5dBm
Los Assert: 12dB
Los De-Assert: -25dBm
Los Hysteresis - Min. 0.5
- Typical 850nm
- Receiver Overload: -10.5dBm Data Input Swing Differential Voltage
- Min. 180mV
- Max. 700mV
AirLive ISFP-SX-10G-300M
Environment
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Working Humidity: 5%~95%, non-condensing
Standard package of SFP
- Package size: TBD mm(L*W*H)
- Package Weight: N.W: TBD kgs; G.W:TBD KGS
- Package content: 1 x SFP Module
Standard carton package
- Quantity: 10 pcs / 1 Blister
- Dimensions 5.5×1.3×0.8 cm
- Weight TBD kgs
Ordering Information
- Model: ISFP-SR-10G-300M
- Name: Industrial level 10Gbps Fiber Mini GBIC ISFP Transceiver, 850nm, LC connector, 300M, hotpluggable
Qualities:
Industrial Level 10G Multi Giga SFP+ MiniGBIC Transceiver, Transceiver, Up to 300M, Hot pluggable, Auto-fall back ISFP-SR-10G-300M
- 10G SFP+ transceiver
- 850nm
- Up to 300M
- Multi Mode Dual Fiber
- Industrial-level
- LC Duplex Connector
- DDM Function
- ESD Protection
- Hot Pluggable
- -40°C~+85°C
