AirLive I/SFP-MiniGBIC Transceiver User Manual

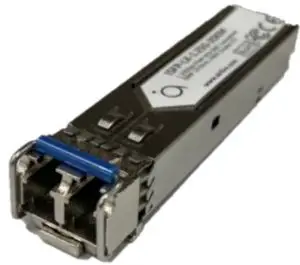

Overview

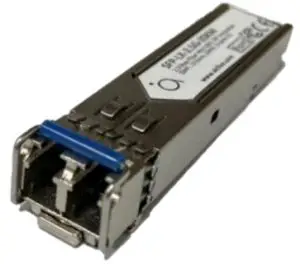

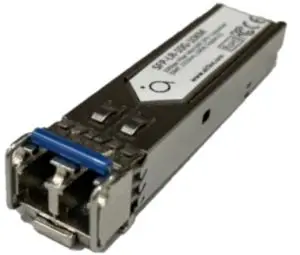

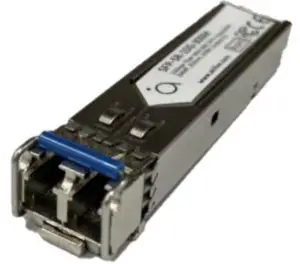

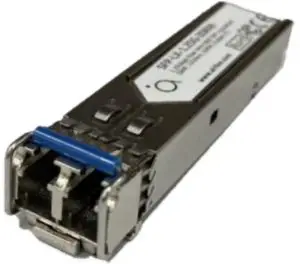

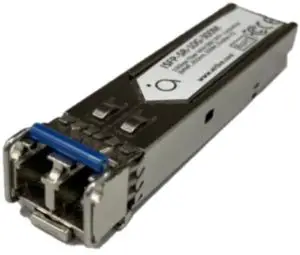

The AirLive ISFP and SPF modules are high performance and cost-effective modules for serial optical data communication applications specified for single and multi-mode ranging in speed from 1.25 Gb/s, 2.5 Gb/s to 10Gb/s. Depending on the model they are either Single mode or Multi Mode which operates at a nominal wavelength of 1310nm or 850nm. The module is a duplex LC connector transceiver designed for use in Gigabit Ethernet applications and to provide IEEE802.3z compliant link from applications and IEEE802.ae for 10Gigabit Ethernet connections.
- ISFP-LR-10G-10KM
- ISFP-LX-1.25G-20KM
- ISFP-SR-10G-300M
- SFP-LR-10G-10KM
- SFP-LX-1.25G.20KM
- SFP-LX-2.5G-20KM
- SFP-SR-10G-300M
- SFP-SX-1.25G-500M
Adding to Module to a Switch

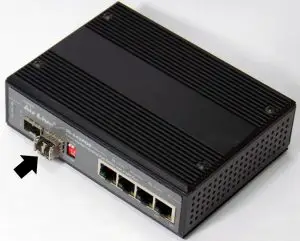

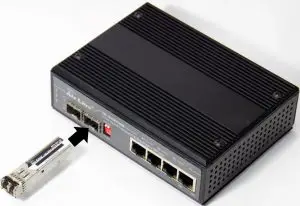

First time adding, make sure your switch has a SPF slot into which the SPF module can be placed. Slide the module straight into the SPF slot unit it clicks into place. When it does not click it means the module was not pushed inside far enough. Ones the module is inside the switch your fiber cable can be connected and its ready for use.
Specifications
 |  |  |  | |
| Model | ISFP-LR-10G-10KM | ISFP-LX-1.25G-20KM | ISFP-SR-10G-300M | SFP-LR-10G-10KM |
| Mode | Single Mode dual fiber LR | Single Mode dual fiber LX | Multi Mode dual fiber SR | Single Mode dual fiber LR |
| Wavelenght | 1310nm | 1310nm | 850nm | 1310nm |
| Speed | 10G | 1.25G | 10G | 10G |
| Distance | 10KM | 20KM | 300M | 10KM |
| DDM Function | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | 0°C to +70°C |
 |  |  |  | |
| Model | SFP-LX-1.25G.20KM | SFP-LX-2.5G-20KM | SFP-SR-10G-300M | SFP-SX-1.25G-500M |
| Mode | Single Mode dual fiber LX | Single Mode dual fiber LX | Multi Mode dual fiber SR | Multi Mode dual fiber SX |
| Wavelenght | 1310nm | 1310nm | 850nm | 850nm |
| Speed | 1.25G | 2.5G | 10G | 1.25G |
| Distance | 20KM | 20KM | 300M | 500M |
| DDM Function | Yes | Yes | Yes | Yes |
| Operating Temperature | 0°C to +70°C | 0°C to +70°C | 0°C to +70°C | 0°C to +70°C |
Copyright & Disclaimer
No part of this publication may be reproduced in any form or by any means, whether electronic, mechanical, photocopying, or recording without the written consent of AirLive Technology Corp.
AirLive Technology Corp has made the best effort to ensure the accuracy of the information in this user’s guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice.
All Trademarks are properties of their respective holders.
Disposal
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
For more detailed specifications please see the datasheet of each seperated module. The datasheets can been found online on www.airlive.com
Specifications are subject to change and improvement without notice.
