Laxihub BellCam Wire-free Battery Powered Video Doorbell User Guide
Compatible with Amazon Alexa & Google Assistant

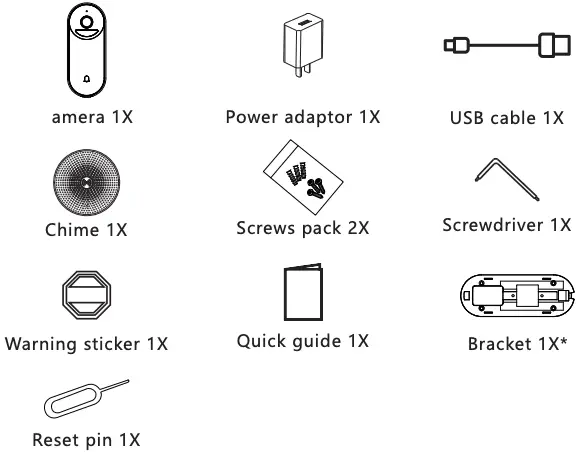

Packing list

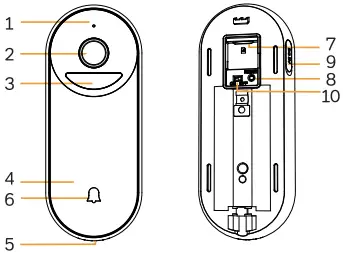

Product description
- Microphone
- Lens
- PIR
- Doorbell button
- Speaker
- LED indicator
- SD card slot
- Reset
- DC5V USB
- Device ON/OFF
- Speaker
- LED indicator
- Power interface
- Reset
Notice
To reset the device, press and hold the reset button for 5s.
The camera beeps when the operation is complete.
LED indicator of camera:
| Flashing red light (slow) | Wait for network config |
| Flashing red light (fast) | Connecting the network |
| Fixed red light | Network is malfunctional |
| Fixed blue light | Camera is working correctly |
LED indicator of chime:
| Flashing blue light | Wait for pairing |
| Fixed blue light | Succeed to pair |
Installation

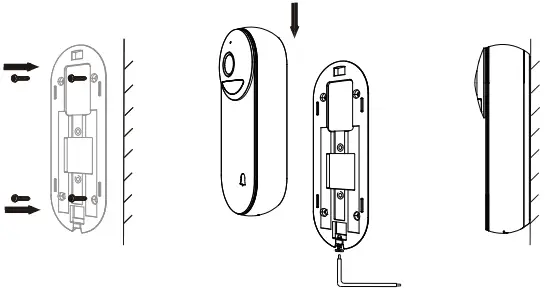

Installation with screws
- Fix the bracket to the wall with the mounting screws.
- Install the camera in the bracket and lock it with the screw.
Product configuration
Step 1 Turn on your camera.
Step 2 Connect your smartphone to the Wi-Fi network.
Step 3 Download Arenti app from the App Store or Google Play depending on your device.
Step 4 Launch the App and sign up for the first use.
Step 5 Follow the on-screen instructions to add your camera.
For more information, scan the QR code.
Notice
If you have multiple cameras, please follow step 5 again to add devices one by one.
To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
Chime Pairing

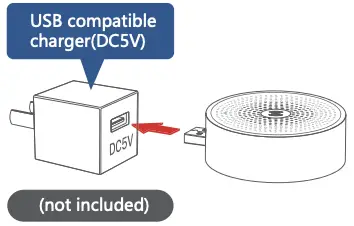

Step 1 Power on your chime and doorbeell.
Step 2 Enter the setting page of your doorbell added, go into “Basic Function > Wireless Chime”.

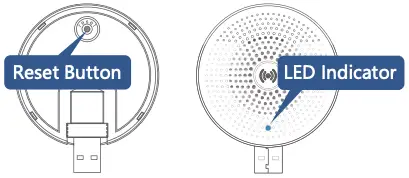

Step 3 Click the “RESET” button of chime, the blue light blinks and enter the configuration mode.
Step 4 Press “Chime Pairing” button, the device will be connected about 2s.
Step 5 Select the ringtone, adjust the volume.
Step 6 Complete the configuration, the blue light is on.
Specifications
| Sensor type | 1/2.9″ CMOS |
| Min. brightness | Color [email protected] |
| Black and white [email protected] | |
| Resolution | 2 Mega pixels |
| Lens | 3.2 mm F2.0 |
| Shutter | 1/15-1/10,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 5 meters |
| FOV | 130° |
| Video compression | H.264 |
| Bit rate | 32Kbps – 2Mbps |
| Max resolution | 1920 x 1080 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 256GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP, DNS |
| WiFi standard | IEEE802.11b/g/n/ac |
| Frequency | 2.4 GHz; 5 GHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20℃~50℃ |
| Power | DC5V,1A |
| Consumption | 4.5W MAX |
| Size(mm) | 56 x 40 x 135 |
| Battery | 6700mAh |
| Standby consumption | 600µA (average) |
| Work consumption | 192mA (IR off) |
| Standby time | 10 months |
| Working time | 3 months (10 times wake up per day) |
| PIR Detection Rangle | 7m (Max.) |
| PIR Detection Angle | 100° |
Legal notice
Support
Symbols
Direct current (DC)
Don’t throw batteries or out of order products with the household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collect of garbage proposed by your city.
Hereby, Laxihub, declares that the radio equipment type ‘BellCam’ is in compliance with the Directive 2014/53/EU The full test of the EU declaration of conformity is available at the following Internet address: www.laxihub.com
