BELLCAME
QUICK GUIDE
Wire-free Battery Powered Video Doorbell
Compatible with Amazon Alexa & Google Assistant
Quick start guide
- Packing list
- Product description
- Installation
- Product configuration
- Legal notice

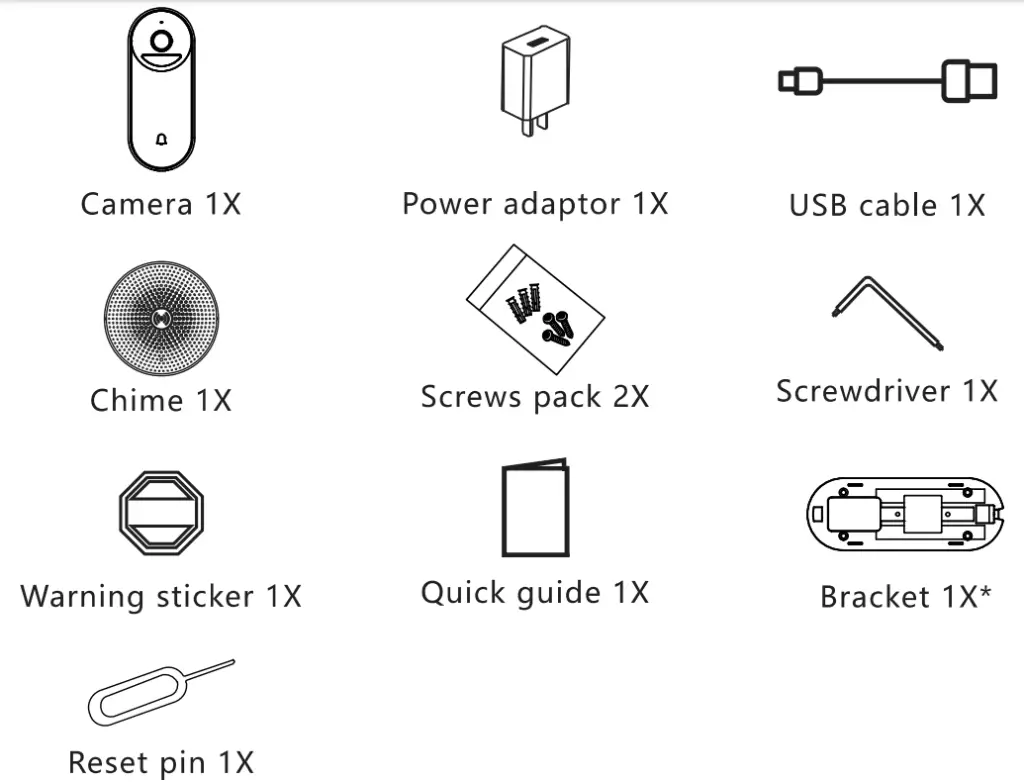

Packing list

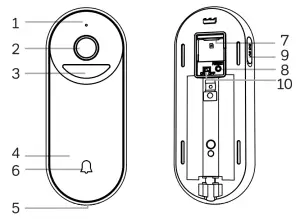

Product description
| 1. Microphone 2. Lens 3. PIR 4. Doorbell button 5. Speaker | 6. LED indicator 7. SD card slot 8. Reset 9. DCSV USB 10. Device ON/OFF |

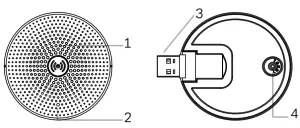

- Speaker
- LED indicator
- Power interface
- Reset
Notice To reset the device, press and hold the reset button for 5s. The camera beeps when the operation is complete.
LED indicator of the camera:
| Flashing red light (slow) | Wait for network config |
| Flashing red light (fast) | Connecting the network |
| Fixed red light | Network is malfunctional |
| Fixed blue light | The camera is working correctly |
LED indicator of the camera:
| Flashing blue light | Wait for pairing |
| Fixed blue light | Succeed to pair |
INSTALLATION

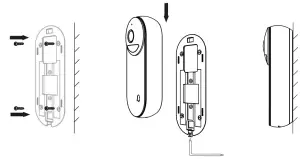

INSTALLATION WITH SCREWS
1. Fix the bracket to the wall with the mounting screws.
2. Install the camera in the bracket and lock it with the screw.
Product configuration
Step 1 Turn on your camera.
Step 2 Connect your smartphone to the Wi-Fi network.
Step 3 Download the Arenti app from the App Store or Google Play depending on your device.
Step 4 Launch the App and sign up for the first use.
Step 5 Follow the on-screen instructions to add your camera.
For more information, scan the QR code.
Notice If you have multiple cameras, please follow step 5 again to add devices one by one. To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.

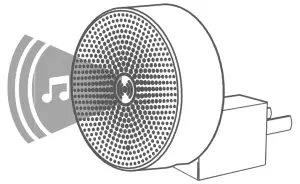

Chime Pairing
Step 1 Power on your chime and doorbells.
Step 2 Enter the setting page of your doorbell added, go into “Basic Function > Wireless Chime”.
Step 3 Click the “RESET” button of chime, the blue light blinks, and enter the configuration mode.
Step 4 Press the “Chime Pairing” button, the device will be connected about 2s. Step 5 Select the ringtone, adjust the volume.
Step 6 Complete the configuration, the blue light is on.
Specifications
| Sensor type | 1/2.9° CMOS |
| Min. brightness | Color [email protected] |
| Black and white 0.01 [email protected] | |
| Resolution | 2 Megapixels |
| Lens | 3.2 mm F2.0 |
| Shutter | 1/15-1/10,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 5 meters |
| FOX | 130° |
| Video compression | H.264 |
| Bit rate | 32Kbps – 2Mbps |
| Max resolution | 1920 x 1080 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 256GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP, DNS |
| WiFi standard | IEEE802.11b/g/n |
| Frequency | 2.4 GHz; |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20°C-50°C |
| Power | DC5V,1A |
| Consumption | 4.5W MAX |
| Size(mm) | 56 x 40 x 135 |
| Battery | 5200mAh |
| Standby consumption | 6001.LA (average) |
| Work consumption | 192mA (IR off) |
| Standby time | 10 months |
| Working time | 3 months (10 times wake up per day) |
| PIR Detection Range | 7m (Max.) |
| PIR Detection Angle | 100° |
Legal notice
Support
www.laxihub.com
Symbols
Direct current (DC)
Don’t throw batteries or out-of-order products with household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collection of garbage proposed by your city.
Hereby, Laxihub, declares that the radio equipment type ‘Bellamy’ is in compliance with the Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following Internet address: www.laxihub.com
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part IS of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and. if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to winch the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antennas) used for this transmitter must be installed to provide a separation distance of at least 20 an from all persons and must not be co-located Of operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement
This device complies with Part IS of the FCC Rules. Operation Is subject to the following two conditions (I) this device may not cane harmful Interference, and (2) this device must accept Pay interference reamed, including interference that may cause undesired operation.
Caution! Any changes or modifications not expressed & approved by the party responsible for compliance could void the user’s authority to operate the equipment.
© 2021 Laxihub. All rights reserved. All trade names are registered trademarks of respective companies Apple, the Apple logo, iPhone are trademarks of Apple Inc. registered in the U.S. and other countries. Google, the Google logo, Android are trademarks of Google Inc. App Store is a service mark of Apple Inc. Google Play is a service mark of Google Inc.
