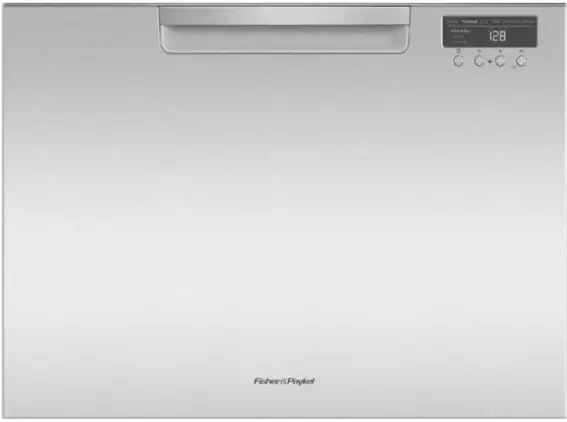

FISHER PAYKEL DD60SCTHX9 FP BI Single DishDrawer Dishwasher Tall User Manual

Contents hide

1 INTRODUCTION

2 FRONT PANELS/CONTROLS

3 CABINET ASSEMBLY

4 LID & LINK ASSEMBLY

5 TUB & COMPONENTS

6 BASKETS & RACKS

7 INSTALLATION COMPONENTS

8 Documents / Resources

8.1 References

9 Related Posts

INTRODUCTION

BRAND	VOLTAGE	MODEL	PRODUCT CODE
Fisher & Paykel	220/240 VAC 50Hz	DD60SCTHX9 FP BI	82349-A

MODELS
The models covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.

KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.

NI	As a part reference, indicates the part is not illustrated on the diagram.
NOT USED	As a part number, indicates the diagram part reference is not used in this manual.
NS	As a part number, indicates the part is not servicable.

FRONT PANELS/CONTROLS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	512019	KIT MODULE DISPLAY DD60C9
	Includes	MOD DISP 525 PH9 CLSC X 1
	Includes 511861	RIVET SNAP NYLON GREY X 3
2	510779	WEDGE HOUSING UI DD PH9
3	524608	CONTROL PANEL ESD SHIELD 608V
4	524875	HARNESS UI ONE PH8
5	511252	BUTTON ASSY DD PH9
6	513232	DOOR ASSY UPPER DD60SCTX9 V2 (SP)
	Includes	DOOR UPPER DD60SCTX9 N BR X 1
	Includes	HANDLE BODY DD PH9 GREY X 1
	Includes 511152	SCREW M3-5X10 CSK PN ZP BLK X 4
	Includes 510932	GRIP HANDLE DD PH9 X 1
	Includes 510785	SCREW M4X8 WAFER PH ZP YLW X 4
	Includes 511854	KIT ASSY TOPCAP AL DD PH9 X 1
	Includes 550193	RETAINING RING E18 X 4
	Includes	LENS UI GREY DD60SC PH9 X 1
	Includes 511861	RIVET SNAP NYLON GREY X 3
7	511152P	SCREW M3-5X10 CSK BLK (PKT 10)
8	510785P	SCREW M4X8 WAFER YLW (PKT 10)
9	511861P	RIVET SNAP NYLON GREY (PKT10)
10	550193P	RETAINING RING E18 (PKT 10)
11	518735P	PIN DOOR PH9 EXTENDED SP X2
12	532490	SEAL DOOR DD609 V2
13	511854	KIT ASSY TOPCAP AL DD PH9
14	510932	GRIP HANDLE DD PH9
15	510871	BRACE HANDLE DD
16	511405P	SCREW ST 8X12 HILO ZP (PKT 10)
17	511237	REAR PANEL DD609 UPR TALL
18	529122	BRACKET INT SHIELD LH ROHS
19	529123	BRACKET INT SHIELD RH ROHS
20	556655P	SCREW ST 8X5/16 NP (PKT 10)
NI	511234	INSUL DOOR DD609 UPR TALL
NI	511241	INSUL DOOR DD609 UPR

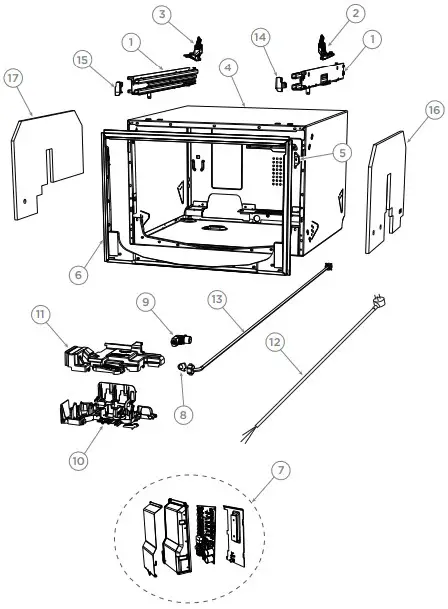

CABINET ASSEMBLY

REFERENCE	PART NUMBER	PART DESCRIPTION
1	524116P	KIT BRACKET SLIDE RH & LH ASSY
	Includes	BRACKET SLIDE RH ASSY X 1
	Includes	BRACKET SLIDE LH ASSY X 1
	Includes 556607	SCREW MC M5X10 TAPTITE X 6
	Includes	INSTR SHT SLIDE BRACKET SPARE KIT
NI	556607P	SCREW MC M5X10 TAPTITE (PKT 10)
2	522584	LATCH ASSY RH DD 606
3	522585	LATCH ASSY LH DD 606
4	512010	KIT REPLACE CHASSIS DD60ST9
	Includes 525968	MOUNT LINK TOP
	Includes	CHASSIS SINGLE TALL ASSY GALV
	Includes	SHT INSTR REPLACE CHASSIS PH8
	Includes	INSTALL TAB TTA
	Includes	INSTALL TAB TTB
	Includes	TRIM DD60DT6 COMOULD
	Includes 524568	3 DEGREE PRISM
5	524568	3 DEGREE PRISM
6	522994	KIT TRIMSEAL DD60ST
	Includes 522179	TRIM DDTALL COMOULD
	Includes 524568	3 DEGREE PRISM
	Includes	CORNER PLUG TRIM DD60T6 TALL
7	518481P	KIT MC 525 PH9 230V SGL W SP
8	525466	CLAMP HOSE HERBIE TYPE E
9	529827	VALVE INLET SINGLE 605
10	524559	HOUSING CHASSIS MODULE DD608
11	524666	COVER CHASSIS MODULE 608
12	510955	FLEX MAINS GB PH8
NI	532017	TERM STRIP SADDLE NIPL
NI	556607P	SCREW MC M5X10 TAPTITE (PKT 10)
13	527021	HOSE INLET ASSY EU
14	524783	CLIP TUB RELEASE RH MID GREY
15	524782	CLIP TUB RELEASE LH MID GREY
16	522443	INSULATION CHASSIS TOP TALL
17	522444	INSULATION CHASSIS SGL TALL

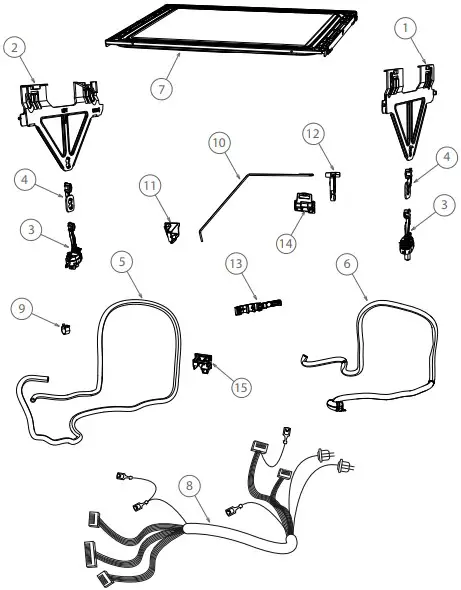

LID & LINK ASSEMBLY

REFERENCE	PART NUMBER	PART DESCRIPTION
1	529969	LID YOKE RIGHT
2	529970	LID YOKE LEFT
3	522085	KIT LID ACTUATORS 605 (PKT 2)
4	522296P	KIT ADAPTOR LID YOKE TALL TUB (PKT2)
5	510856	KIT DD FILL HOSE LOWER SPARE
6	510852	KIT DD DRAIN HOSE SPARE
	Includes	O RING CUFF SOCKET UL REC
	Includes	HOSE DRAIN UPPER ASSY 605
	Includes	FLAP VALVE DRAIN 605
NI	525798	KIT DRAIN HOSE EXTENSION 3.6M
	Includes	DRAIN HOSE EXTENSION (2)
	Includes 525482	CLIP WIRE DRAIN (4)
	Includes	DRAIN HOSE JOINER (2)
NI	527394	KIT DRAIN HOSE JOINER
	Includes 525482	CLIP WIRE DRAIN (2)
	Includes	DRAIN HOSE JOINER
7	529964P	LID ASSY 605
8	510854	KIT DD HARNESS LOWER 608 SPARE
9	528674	CLAMP HOSE TYPE 12232-17-4
10	524497	ROD LINK SUPPORT 608
11	528101	BRACKET LINK SUPPORT
12	524541	CLIP LINK SUPPORT 608
13	524543	CLIP LINK CHASSIS SIDE
14	524522	CLIP LINK TUB RIB
15	524478	MOUNT LINK CHASSIS 608

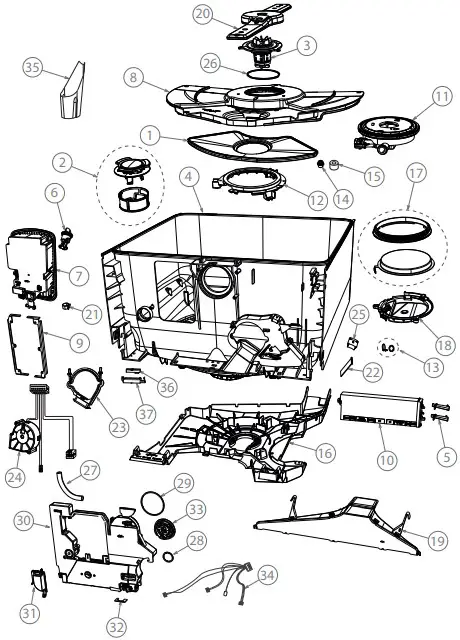

TUB & COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	524467	FP O MOULDED 608 TYPE 16
2	510921	KIT DRAIN/MICROFILTER ASYS 608
	Includes 510129	DRAIN FILTER ASSY 608
	Includes 510658	MICRO FILTER ASSY 608 TYPE 11
3	518712P	ROTOR ASSY DD609.5
4	512614P	KIT TUB TALL W/ASSY DD60H9 V2
5	524569	3 DEGREE LIGHTPIPE PH8
6	524837	BUNG ASSY DISP R/AID MID GREY
7	524887	KIT DISPENSER MID GREY (SP)
	Includes	DISPENSER DISHDRWR MID GREY
	Includes 526789	BRACKET DISPENSER SHORT X 2
NI	556155P	SCREW M3.5X14 PANTX K35 (PKT 10)
8	514134	PUMP CAP ASSY 609
9	526789	BRACKET DISPENSER SHORT
10	518491P	KIT WASH CTRL P9 W EU GB DK
NI	556155P	SCREW M3.5X14 PANTX K35 (PKT 10)
11	518937	KIT MOTOR ASSY DD609.5
	Includes	MHOUSING ASSY DD609.5
	Includes	MOTOR HOUSING SEAL
	Includes 525940	O RING CUFF SOCKET UL REC
	Includes 522178	O RING 208 DRAIN INLET
	Includes 529194	FLAP VALVE DRAIN 605
12	524536	MOTOR LOCKING RING
NI	556155P	SCREW M3.5X14 PANTX K35 (PKT 10)
13	522150	KIT FLAP VALVE/O RING 605 (PKT 2)
	Includes	FLAP VALVE DRAIN 605 (2)
	Includes	O RING CUFF SOCKET UL REC (2)
14	421169	GROMMET 4MM THERMISTOR
NI	510669	HARNESS THERMISTOR LDY EPCOS
15	510572	SPACER THERMISTOR 608
16	524428	COVER TUB BASE 608
NI	556155P	SCREW M3.5X14 PANTX K35 (PKT 10)

REFERENCE	PART NUMBER	PART DESCRIPTION
17	514230	KIT ELEMENT & SEAL 609 230V
	Includes	ELEMENT SEAL 608
	Includes	ELEMENT 608 KAWAI 230V
18	514184	KIT ELEMENT COVER 609 ASSY
19	522578	EXIT DUCT ASSY
20	515617	SPRAY ARM ASSY DD6010
21	528674	CLAMP HOSE TYPE 12232-17-4
22	528063	FLAP VALVE FAN HOUSING 605
23	518855	ISOLATION DRYING FAN PH9.5
24	515747	HARNESS RINSEAID FAN DET DIV
25	528064	RETAINER FLAP FAN HOUSING 605
26	510727	O RING 152 SILICONE 40 608
27	522404	HOSE FILL CO-EX SOFTENER
28	526718	O RING OVERFLOW SOFTENER
29	526717	O RING SALT TANK
30	524886	KIT WATER SOFTENER ASSY (SP) MID GREY
	Includes	WATER SOFTENER ASSY MID GREY
	Includes	DIVERTER VALVE SOFTENER ASSY
	Includes	BRINE PUMP ASSY
	Includes 526718	O RING OVERFLOW SOFTENER
	Includes 526717	O RING SALT TANK
	Includes 524842	BUNG SOFTENER ASSY MID GREY
	Includes 528606P	SALT SENSE SMD 525 PH3.5 ROHS
	Includes 556155	SCREW M3.5X14 PANTX WN1412KL35 (4)
	Includes 522765	STRAINER SOFTENER ASSY
	Includes	O RING STRAINER SOFTENER
	Includes	INSTRUCTION SHEET SOFTENER
	Includes	O RING STRAINER SOFTENER
	Includes	INSTRUCTION SHEET SOFTENER
NI	556155P	SCREW M3.5X14 PANTX K35 (PKT 10)

REFERENCE	PART NUMBER	PART DESCRIPTION
31	522765	KIT STRAINER SOFTENER ASSY
	Includes	STRAINER SOFTENER ASSY
	Includes	INSTR SHT STRAINER SOFTENER
32	528606P	SALT SENS 525 P3.5 ROHS SVC
33	524842	BUNG SOFTENER ASSY MID GREY
34	529867	HARNESS WATERSOFTENER 605
35	526835	CONTAINER SALT FILLING
36	563774P	MOD WIFI GEA3 LITE SVC
37	518016	DD BRACKET WIFI
NI	515527	HARNESS WIFI DD6010

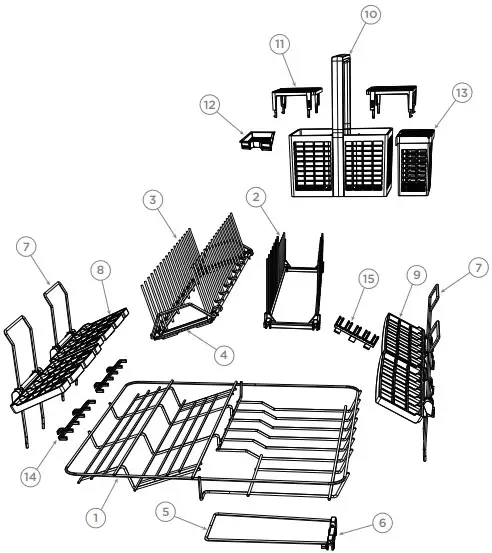

BASKETS & RACKS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	595598	BASE RACK ASSY DD60C PH9V2 CTD
2	512817	CROCK INSERT FD DD60C PH9
	Includes	COMB RHS MP 7PS CTD X 1
	Includes	COMB LHS MP 7PS CTD X 1
	Includes	CLIP FOLDDOWN DD609 X 2
3	523649	CROCK INS PA 60 ASSY
	Includes	COMB PA FIXED 60 CTD
	Includes	COMB PA MOVING 60 CTD
	Includes	CLIP PA FRONT 60
	Includes	CLIP PA BACK 60
4	524147	KIT CLIP FRONT/BACK PA
	Includes	CLIP PA FRONT 60
	Includes	CLIP PA BACK 60
5	510076	WIRE TRAPDOOR 608 LOOP CTD
6	510026	CLIP TRAPDOOR 608
7	522682	WIRE SUPPORT CUP RACK TALL
8	524179	RACK CUP LH DD60 100M ASSY
9	524180	RACK CUP RH DD60 80MM ASSY
10	511870	BASKET CUTLERY 60 ASSY MID-GY
11	511874	INSERT ST C BASKET 60 MID-GREY
12	511872	INSERT TABLET 60 MID-GREY
13	511865	CONTAINER C BASKET ASSY MID-GY
14	522691P	SUPPORT GLASS CLIPON (PKT 2)
15	523326	DD KNIFE CLIP COMBINED

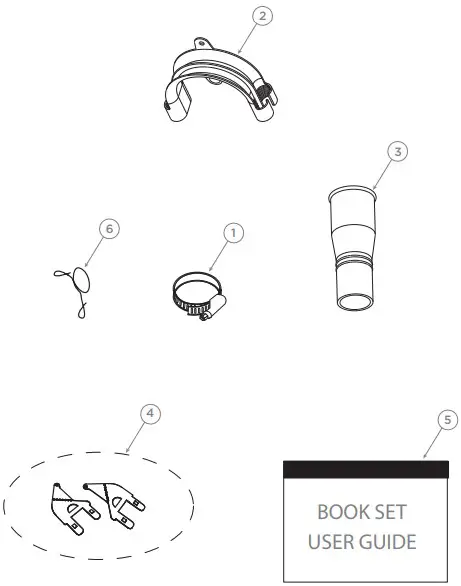

INSTALLATION COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	528690	CLAMP HOSE DIA 32-14
2	525477	SUPPORT DRAIN HOSE
3	525460	DRAIN SPIGOT CONNECTOR SINGLE
4	523007	KIT INSTALL TAB DISHDRAWER
	Includes	TAB TOP (2)
	Includes	INSTALL TAB TTA (2)
	Includes	INSTALL TAB TTB (2)
	Includes	SCREW WS 8X5/8TWINFST MTSPH ZP (6)
5	592849	BKST UG DD60 PH9 DC SC AABISG
	Includes	BK UG DD60 PH9 DC SC AABISG
	Includes	BOOK SERVICE & WARR’TY FP/EL
6	525482P	CLIP WIRE DRAIN (PKT 2)
NI	522995	KIT INSTALL DBL/SGL PH5/PH6
	Includes 525477	SUPPORT DRAIN HOSE
	Includes 525482	CLIP WIRE DRAIN (2)
	Includes 525067	DRAIN SPIGOT CONNECTOR DOUBLE
	Includes 525460	DRAIN SPIGOT CONNECTOR SINGLE
	Includes 528690	CLAMP HOSE DIA 32-14
	Includes	SCREW WS 8X5/8 TWIN FAST (7)
	Includes 526797	TAB TOP (2)
	Includes	FOOT TOOL 605
	Includes	FOOT TOOL 45MM 605
	Includes	INSTALL TAB TTA (2)
	Includes	INSTALL TAB TTB (2)
	Includes	CORNER PLUG TRIM DDTALL (4)
	Includes 527208	TAPE UNDERBENCH CONDENSATION
NI	527208	TAPE UNDERBENCH CONDENSATION
NI	592326	BK IG DD60SD SC SA 9 NZAUUKIE
