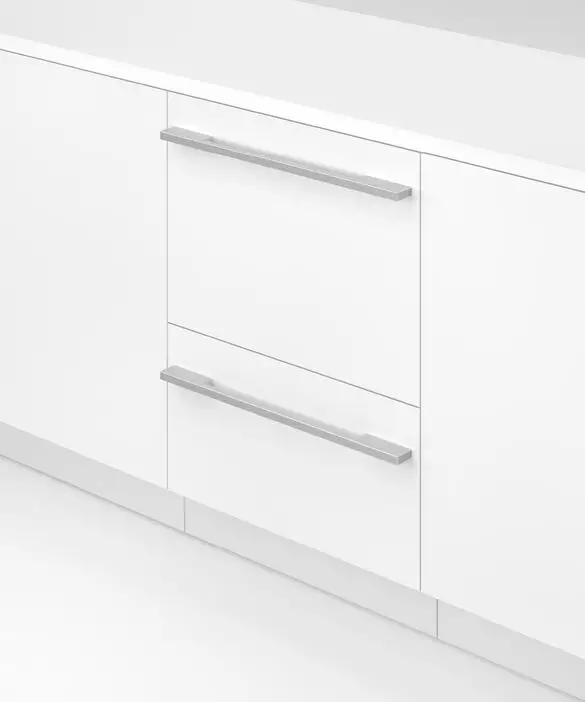

FISHER PAYKEL DD60STX6HI1 FP BI Integrated Single DishDrawer Dishwasher
INTRODUCTION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE |
| Fisher & Paykel | 220/240 VAC 50Hz | DD60STX6HI1 FP BI | 82174-A |
MODELS
The model covered by this manual is listed on the front cover. The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual. |
| NS | As a part number, indicates the part is not servicable. |
- toll free: 08000 886 605
- fax: 08000 886 606
- email: [email protected]
- web: www.fisherpaykel.com
- tel: 1800 625 174
- fax: 1800 635 012
- email: [email protected]
- web: www.fisherpaykel.com

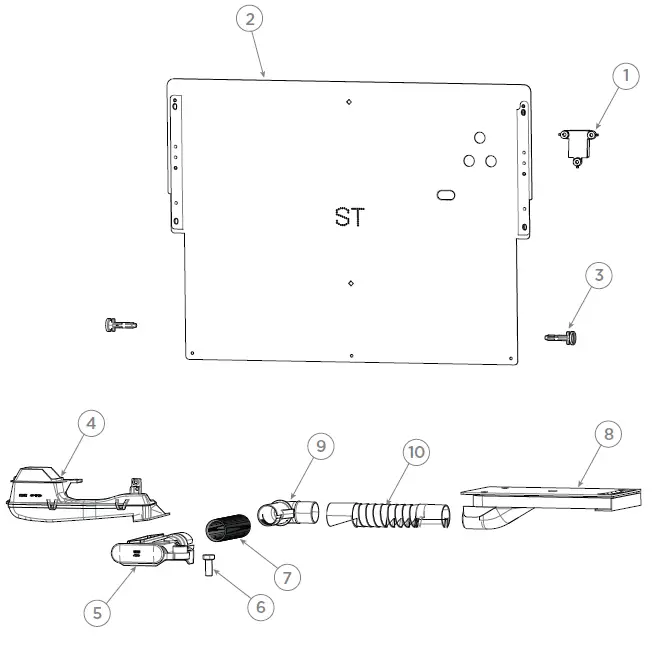

FRONT PANELS/CONTROLS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 512054P | MOD KNOCK SENSOR 525 P9 SP |
| NI | 528782P | SCREW WS 8X5/8 TWINFST (PKT10) |
| 2 | 512843 | KIT SHIELD INT UPR DS609T |
| 3 | 515471 | PIN DOOR DD6010 |
| 4 | 511886 | DUCT TUB ASSY 609 |
| Includes | DUCT TOP | |
| Includes | DUCT BTM | |
| NI | 556155P | SCREW M3.5X14 PANTX K35 (PKT10) |
| NI | 534140 | WASHER M4 FLAT SS |
| 5 | 511889 | MANIFOLD CHASSIS ASSY 609 |
| Includes | MANIFOLD SEAL | |
| Includes | MANIFOLD CAP | |
| Includes | BODY MANIFOLD | |
| 6 | 523972 | BOLT HEX M8X20 ZN |
| NI | 524084 | WASHER FLAT M8 ZNPL |
| 7 | 523523 | HOSE VENT CHASSIS |
| 8 | 523526 | DUCT EXIT ASSY |
| Includes | DUCT EXIT BOTTOM | |
| Includes | DUCT EXIT TOP | |
| Includes | SCREW M3-5X16 X 4 | |
| 9 | 523515 | ELBOW VENT |
| 10 | 523689 | HOSE ASSY INSULATED |

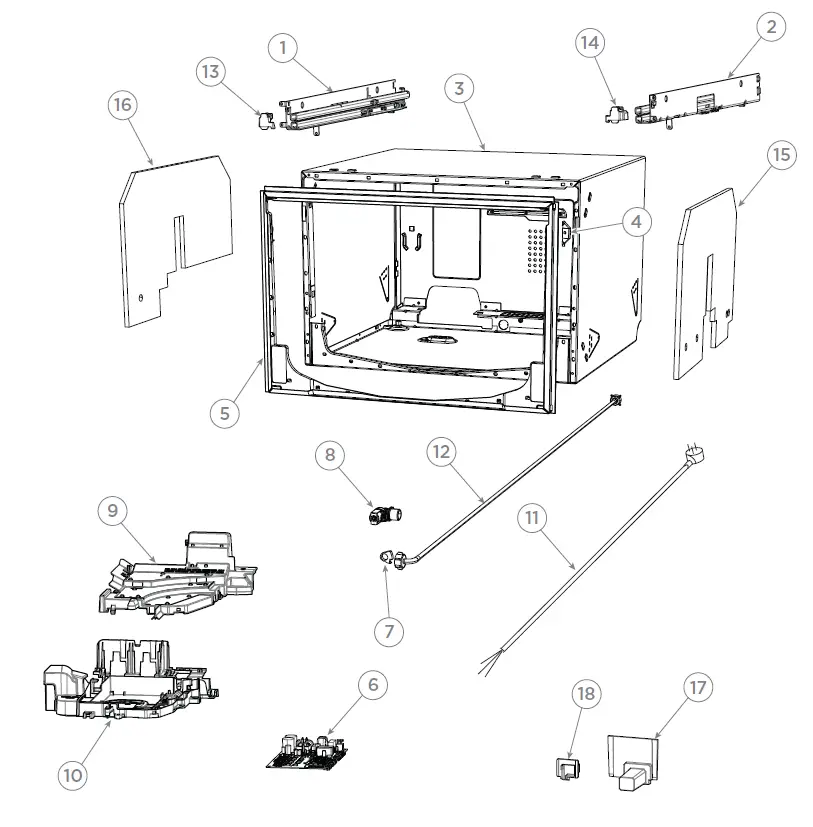

CABINET COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 515110 | SLIDE ASSY LH DD6010 |
| 2 | 515111 | SLIDE ASSY RH DD6010 |
| NI | 556607P | SCREW MC M5X10 TAPTITE (PKT 10) |
| 3 | 518623 | KIT REPLACE CHASSIS DS6010 SP |
| Includes 525968 | MOUNT LINK TOP | |
| Includes | CHASSIS ASSY DD6010 | |
| Includes | SHT INSTR REPLACE CHASSIS PH10 | |
| Includes | INSTALL TAB TTA | |
| Includes | INSTALL TAB TTB | |
| Includes | TRIM UPPER COMOULD TT ASSY | |
| Includes 524568 | 3 DEGREE PRISM (2) | |
| 4 | 524568 | 3 DEGREE PRISM |
| 5 | 522994 | KIT TRIMSEAL DD60ST |
| Includes 524568 | 3 DEGREE PRISM | |
| Includes | CORNER PLUG TRIM DD60T6 TALL | |
| 6 | 518588 | KIT MC 525 PH10 230V SGL SP |
| 7 | 525466 | CLAMP HOSE HERBIE TYPE E |
| 8 | 529827 | VALVE INLET SINGLE 605 |
| 9 | 518384 | KIT HOUSING C. MODULE DD6010 |
| Includes | SEAL HEATSINK DD6010 | |
| 10 | 515584 | COVER MC ASSY DD6010 AA |
| 11 | 516116 | FLEX MAINS DD6010 GB |
| NI | 556607P | SCREW MC M5X10 TAPTITE (PKT 10) |
| 12 | 527021 | HOSE INLET ASSY EU |
| 13 | 515491 | CLIP TUB RELEASE RH DD6010 |
| 14 | 515492 | CLIP TUB RELEASE LH DD6010 |
| 15 | 522443 | INSULATION CHASSIS TOP TALL |
| 16 | 522444 | INSULATION CHASSIS SGL TALL |
| 17 | 518031 | COMMS CONNECTOR HOUSING PH10 |
| 18 | 518032 | COMMS CONNECTOR COVER PH10 |
| NI | 516199 | HARNESS COMMS CONNECTOR PH10 |

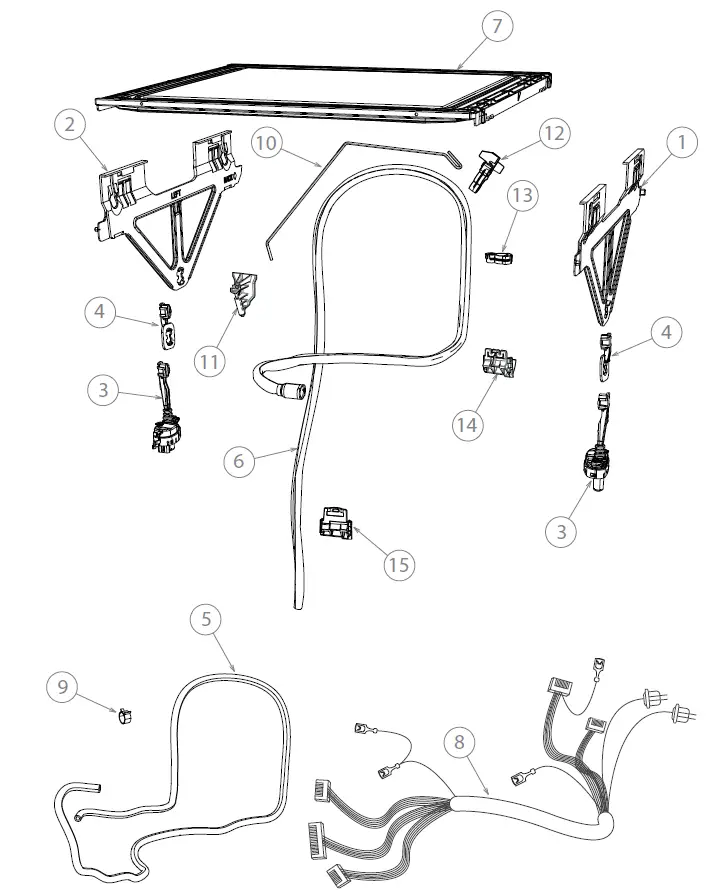

LID & LINK COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 529969 | LID YOKE RIGHT |
| 2 | 529970 | LID YOKE LEFT |
| 3 | 522085 | KIT LID ACTUATORS 605 (PKT 2) |
| 4 | 522296P | KIT ADAPTOR LID YOKE TALL TUB (PKT 2) |
| 5 | 518414 | KIT DD FILL HOSE UPPER PH10 |
| 6 | 518415 | KIT DD DRAIN HOSE UP SPARE P10 |
| Includes | O RING CUFF SOCKET UL REC | |
| Includes | HOSE DRAIN UPR ASSY SPARE PH10 | |
| Includes | FLAP VALVE DRAIN 605 | |
| NI | 525798 | KIT DRAIN HOSE EXTENSION 3.6M |
| Includes | DRAIN HOSE EXTENSION (2) | |
| Includes 525482 | CLIP WIRE DRAIN (4) | |
| Includes | DRAIN HOSE JOINER (2) | |
| NI | 527394 | KIT DRAIN HOSE JOINER |
| Includes 525482 | CLIP WIRE DRAIN (2) | |
| Includes | DRAIN HOSE JOINER | |
| 7 | 529964P | LID ASSY 605 |
| 8 | 518417 | KIT DD HARNESS UPPER PH10 |
| 9 | 528674 | CLAMP HOSE TYPE 12232-17-4 |
| 10 | 514642 | ROD LINK SUPPORT 6010 |
| 11 | 514643 | BRACKET LINK SUPPORT DD6010 |
| 12 | 524541 | CLIP LINK SUPPORT 608 |
| 13 | 524543 | CLIP LINK CHASSIS SIDE |
| 14 | 514914 | CLIP LINK TUB RIB DD6010 |
| 15 | 524478 | MOUNT LINK CHASSIS 608 |
| NI | 515367 | HARNESS UPPER LID VALVE DD6010 |

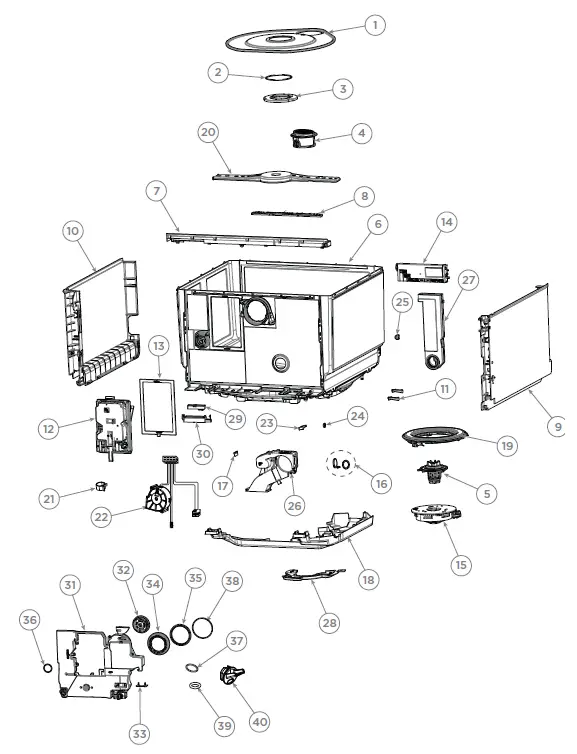

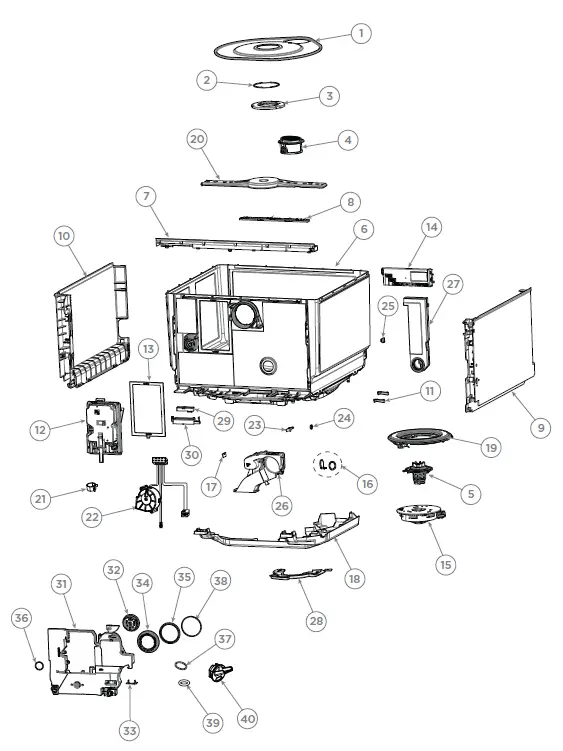

TUB COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 515915 | FP SS ROLL UNLD DD6010 |
| 2 | 515609 | FILTER PLATE O-RING DD6010 |
| 3 | 515589 | FILTER PLATE LOCKNUT DD6010 |
| 4 | 515564 | FILTER DD6010 |
| Includes | FILTER MICRO OVERMOULD DD6010 | |
| Includes | FILTER DRAIN WELDED DD6010 | |
| 5 | 514875P | KIT ROTOR ASSY DD6010 SP |
| 6 | 518428 | KIT TUB SS TALL SGL DD6010 |
| NI | 611811P | SCREW ST 8X1/2 PAN SS (PKT10) |
| 7 | 518567 | KIT USER INTERFACE DD6010 |
| 8 | 514985P | PCBA UI FLANGE DD PH10 |
| 9 | 515179 | TUB SIDE SUPPORT RH DD60T10 |
| 10 | 515180 | TUB SIDE SUPPORT LH DD60T10 |
| 11 | 524569 | 3 DEGREE LIGHTPIPE PH8 |
| 12 | 518565 | KIT DISPENSER PH10 (SP) |
| Includes | DISPENSER DD6010 | |
| 13 | 514887 | DISPENSER TUB ADAPTER DD6010 |
| NI | 556155P | SCREW M3.5X14 PANTX K35 (PKT 10) |
| 14 | 518594 | KIT WASH CTRL PH10 EU GB DK |
| NI | 556155P | SCREW M3.5X14 PANTX K35 (PKT 10) |
| 15 | 514876P | KIT STATOR ASSY DD6010 SP |
| Includes | ELEMENT INNER SEAL DD6010 | |
| NI | 556155P | SCREW M3.5X14 PANTX K35 (PKT 10) |
| 16 | 522150 | KIT FLAP VALVE/O RING 605 (PKT 2) |
| Includes | FLAP VALVE DRAIN 605 (2) | |
| Includes | O RING CUFF SOCKET UL REC (2) | |
| 17 | 515252 | FLAP VALVE FAN HOUSING DD6010 |
| 18 | 515473 | COVER TUB BASE DD6010 |
| NI | 556155P | SCREW M3.5X14 PANTX K35 (PKT 10) |
| 19 | 514688P | KIT ELEMENT 6010 KAWAI 230V SP |
| Includes | ELEMENT OUTER SEAL DD6010 | |
| Includes | ELEMENT INNER SEAL DD6010 | |
| Includes | ELEMENT 6010 KAWAI 230V |
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 20 | 515617 | SPRAYARM VALUE ASSY DD6010 |
| 21 | 528674 | CLAMP HOSE TYPE 12232-17-4 |
| 22 | 513149 | HARNESS DISPEN FAN 270MA P9 |
| 23 | 528064 | RETAINER FLAP FAN HOUSING 605 |
| NI | 611811P | SCREW ST 8X1/2 PAN SS (PKT10) |
| 24 | 515734 | WASHER CUP M5 |
| 25 | 515255 | BUSH SIDE SUPPORT |
| 26 | 518599P | SS FAN KIT ASSY SI DD6010 |
| Includes | SS FAN HOUSING ASSY DD6010 | |
| Includes | RUBBER NUT FAN DD6010 | |
| Includes | SCREW M3X40 CSK | |
| Includes | FLAP VALVE FAN HOUSING DD6010 | |
| Includes | GATE DRYFAN PH10.PRT | |
| Includes | VENTING CAP SEAL DD6010 | |
| Includes | CAP VENTING | |
| Includes | RETAINER FLAP FAN HOUSING 605 | |
| 27 | 514604 | SS REAR VENT ASSY DD6010 |
| Includes | VENT REAR BOTTOM DD6010 | |
| Includes | VENT REAR TOP DD6010 | |
| 28 | 515573 | ELEMENT MOTOR WIRE COVER DD601 |
| NI | 515370 | HARNESS TURBIDITY DD6010 |
| NI | 515972 | HARNESS HALL SENSOR DD6010 |
| 29 | 563774P | MOD WIFI GEA3 LITE SVC |
| 30 | 518016 | DD BRACKET WIFI |
| NI | 515527 | HARNESS WIFI DD6010 |
| 31 | 516266 | KIT WATER SOFTENER DD6010 SP |
| Includes | WATER SOFTENER DD6010 | |
| Includes 526718 | O RING OVERFLOW SOFTENER | |
| Includes 526717 | O RING SALT TANK | |
| Includes 556155P | SCREW ST M3.5X14 K35 PAN TX ZP | |
| Includes 515585 | HOSE EXTENSION WATER SOFTENER | |
| Includes 522351 | O RING STRAINER SOFTENER | |
| Includes 515680 | BUNG SALT SOFTENER DD6010 |
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| Includes 516103 | PCB SALT LEVEL 6010 | |
| 32 | 515680 | BUNG SALT SOFTENER DD6010 |
| 33 | 516103 | PCB SALT LEVEL 6010 |
| NI | 515746 | HARNESS WATER SOFTENER DD6010 |
| NI | 516139 | HOSE FILL CO-EX SOFTENER 6010 |
| 34 | 514957 | WS BUNG RING DD6010 |
| 35 | 514959 | WS BUNG RING SEAL DD6010 |
| 36 | 514960 | WS OVERFLOW RING SEAL DD6010 |
| 37 | 526718 | O RING OVERFLOW SOFTENER |
| 38 | 526717 | O RING SALT TANK |
| NI | 515585 | HOSE EXTENSION WATER SOFTENER |
| 39 | 522351 | O RING STRAINER SOFTENER |
| 40 | 515719 | FUNNEL SALT FILLING |

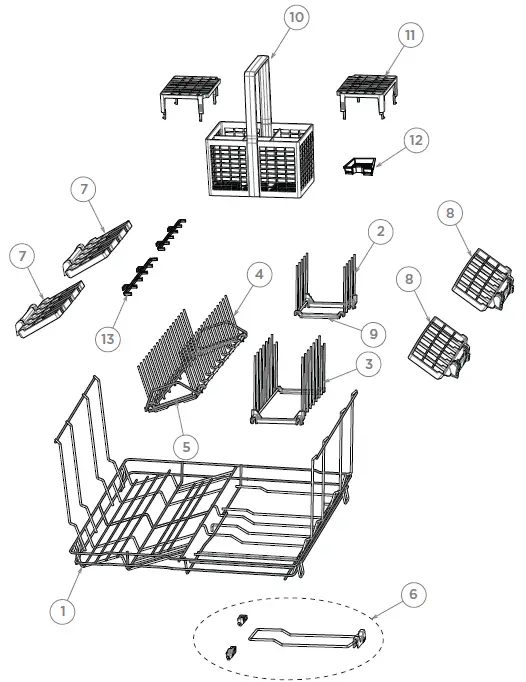

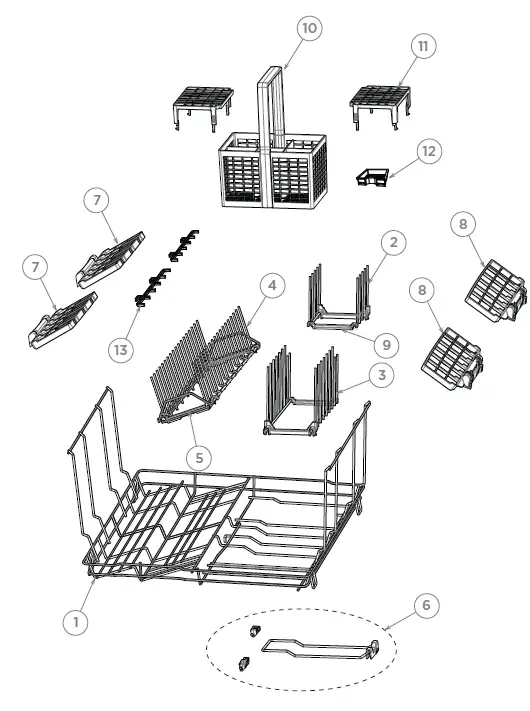

BASKET & RACK COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 515815 | BASERACK ASSY DD6010S7T CTD (TALL) |
| 2 | 515183 | MAIN COMB RR ASSY DD6010 |
| Includes | COMBS MAIN RR LH 7PS CTD | |
| Includes | COMBS MAIN RR RH 7PS CTD | |
| Includes | CLIP FOLDDOWN DD609 | |
| Includes | CLIP FNT FOLDDOWN 94 | |
| 3 | 515189 | MAIN COMB RF ASSY DD6010 |
| Includes | COMBS MAIN RR LH 7PS CTD | |
| Includes | COMBS MAIN RR RH 7PS CTD | |
| Includes | CLIP FOLDDOWN DD609 | |
| Includes | CLIP FNT FOLDDOWN 94 | |
| 4 | 518147 | CROCK INS PA 60 ASSY DD6010 |
| Includes | COMB PA FIXED DD6010 CTD | |
| Includes | COMB PA MOVING 60 CTD | |
| Includes | CLIP PA FRONT 60 | |
| Includes | CLIP PA BACK 60 | |
| 5 | 524147 | KIT CLIP FRONT/BACK PA |
| Includes | CLIP PA FRONT 60 | |
| Includes | CLIP PA BACK 60 | |
| 6 | 515169 | TRAPDOOR ASSY KIT DD6010 |
| Includes | TRAPDOOR REAR CLIP DD6010 | |
| Includes | TRAPDOOR WIRE LOOP CTD | |
| Includes | CLIP TRAP DOOR FIX FRONT 6010 | |
| Includes | CLIP TRAP DOOR FIX BACK 6010 | |
| 7 | 515173 | RACK CUP LH DD60 ASSY PH10 |
| 8 | 524180 | RACK CUP RH DD60 80MM ASSY |
| Includes | CLIP CUPRACK SEMIFLEXI | |
| Includes | CUPRACK SEMIFLEXI 80MM | |
| NI | 522694P | KIT CLIP SEMIFLEX (PKT 4) |
| 9 | 518649 | KIT CLIP FOLDDOWN PH10 |
| Includes | CLIP FOLDDOWN DD609 | |
| Includes | CLIP FNT FOLDDOWN 94 |
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 10 | 511870 | BASKET CUTLERY 60 ASSY MID-GY |
| 11 | 511874 | INSERT ST C BASKET 60 MID-GREY |
| 12 | 511872 | INSERT TABLET 60 MID-GREY |
| 13 | 522691 | SUPPORT GLASS CLIPON |

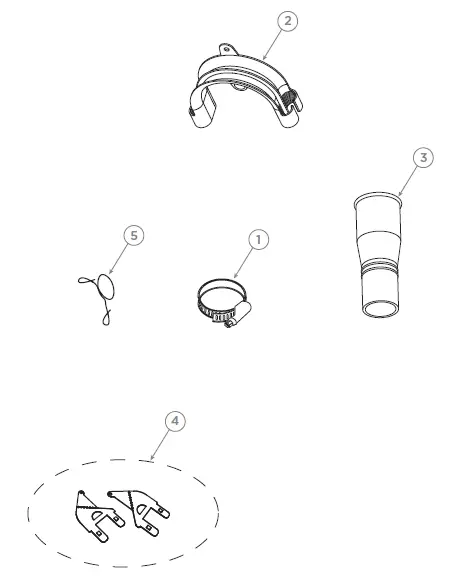

INSTALLATION COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 528690 | CLAMP HOSE DIA 32-14 |
| 2 | 525477 | SUPPORT DRAIN HOSE |
| 3 | 525460 | DRAIN SPIGOT CONNECTOR SINGLE |
| 4 | 523007 | KIT INSTALL TAB DISHDRAWER |
| Includes | TAB TOP (2) | |
| Includes | INSTALL TAB TTA (2) | |
| Includes | INSTALL TAB TTB (2) | |
| Includes | SCREW WS 8X5/8TWINFST MTSPH ZP (6) | |
| 5 | 525482P | CLIP WIRE DRAIN (PKT 2) |
| NI | 522995 | KIT INSTALL DBL/SGL PH5/PH6 |
| Includes 525477 | SUPPORT DRAIN HOSE | |
| Includes 525482 | CLIP WIRE DRAIN (2) | |
| Includes 525067 | DRAIN SPIGOT CONNECTOR DOUBLE | |
| Includes 525460 | DRAIN SPIGOT CONNECTOR SINGLE | |
| Includes 528690 | CLAMP HOSE DIA 32-14 | |
| Includes | SCREW WS 8X5/8 TWIN FAST (7) | |
| Includes 526797 | TAB TOP (2) | |
| Includes | FOOT TOOL 605 | |
| Includes | FOOT TOOL 45MM 605 | |
| Includes | INSTALL TAB TTA (2) | |
| Includes | INSTALL TAB TTB (2) | |
| Includes | CORNER PLUG TRIM DDTALL (4) | |
| Includes 527208 | TAPE UNDERBENCH CONDENSATION | |
| NI | 527208 | TAPE UNDERBENCH CONDENSATION |
| NI | 524085 | KIT BRACKET CAVITY PH7 |
| NI | 592382 | BK UG DD60 TX NZ AU BI |
| NI | 592364 | BK IG DD60STXI NZ AU BI |
| NI | 590256 | BOOK SERVICE & WARR’TY FP/EL |
