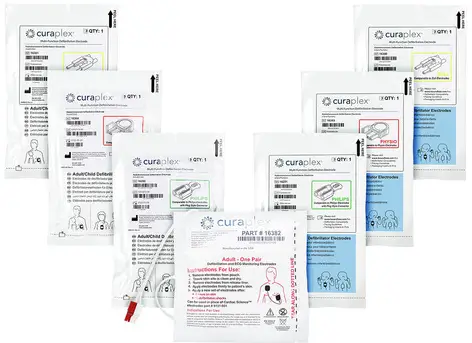

curaplex Defibrillator Pads

Be ready when your next cardiac emergency demands it. Designed to offer you superior quality, flexibility and value, Curaplex® offers defibrillator pads for most of today’s leading AEDs and Monitor/Defibrillator brands.
Simply locate your device(s) or current defibrillator pads on the following page and use the reference guide to find the Curaplex® defibrillator pads to meet your needs.

ORDERING INFORMATION

ORDERING INFORMATION
16240	Adult, Leads Out, Zoll
16242	Adult, Leads Out, Physio Control
16244	Adult, Leads Out, Philips
16382	Adult, Leads Out, Cardiac Science
16381	Adult, Leads In, Zoll
16384	Adult, Leads In, Physio Control
16250	Adult, Leads In, Philips
16251	Pediatric, Leads In, Philips
16380	Pediatric, Leads In, Zoll
16383	Pediatric, Leads In, Physio Control

Radiotransparent and radio translucent “one-pad system” enables pads to remain with the patient as they move through various care environments
Features a 60-inch lead wire
Polymer adhesive gels provide outstanding contact while offering uniform current distribution and more effective defibrillation and pacing
No latex was used in the manufacturing of this product
Easy-to-read instructions, cautions and warnings are located on the packaging exterior
Color-coded packaging matches accessories to the defibrillator manufacturer
Easy open peel pouch and tear notch packaging
Three-year shelf life

Defibrillator & Electrode Compatibility

Defibrillator Brand	Defibrillator Model	Curaplex® Compatible Electrode Part Numbers	Description
Philips Medical	XLT HeartStart XL MRX MRX ALS HP Codemaster XL (Plug Style Connector)	16244 – Adult Leads Out Electrode	Adult, multifunction, radiolucent, leads out wires, pace/defibrillation, monitoring electrodes w/ Philips connectors, latex free, 60 inch lead wire and 3 year shelf life, box (10 pair)
		16250 – Adult Electrode	Adult, multifunction, radiolucent, pace/defibrillation, monitoring electrodes w/ Philips connectors, latex free, Peel Pouch, 60 inch lead wire and 3 year shelf life, box (10 pair)
		16251 – Pediatric Electrode	Pediatric, multifunction, radiolucent, pace/defibrillation, monitoring electrodes w/ Philips connectors, latex free, Peel Pouch, 60 inch lead wire and 3 year shelf life, box (10 pair)
	HeartStart Forerunner HeartStart FR2+	16250 – Adult Electrode	Adult, multifunction, radiolucent, pace/defibrillation, monitoring electrodes w/ Philips connectors, latex free, Peel Pouch, 60 inch lead wire and 3 year shelf life, box (10 pair)
	HeartStart FR3/FRX	NA	Curaplex® defibrillation electrodes are NOT compatible with these Philips devices
Physio-Control	LP-9P LP-10C LP-12 LP-15 LP-20	16242 – Adult Leads Out Electrode	Adult, multifunction, radiolucent, leads out wires, pace/defibrillation, monitoring electrodes w/ Physio connectors, latex free, 60 inch lead wire and 3 year shelf life, box (10 pair)
		16384 – Adult Electrode	Adult, multifunction, radiolucent, pace/defibrillation, monitoring electrodes w/ Physio connectors, latex free, Peel Pouch, 60 inch lead wire and 3 year shelf life, box (10 pair)
		16383 – Pediatric Electrode	Pediatric, multifunction, radiolucent, pace/defibrillation, monitoring electrodes w/ Physio connectors, latex free, Peel Pouch, 60 inch lead wire and 3 year shelf life, box (10 pair)
	LP-500 LP-500 DPS LP-1000	16242 – Adult Leads Out Electrode	Adult, multifunction, radiolucent, leads out wires, pace/defibrillation, monitoring electrodes w/ Physio connectors, latex free, 60 inch lead wire and 3 year shelf life, box (10 pair)
	LP-500 LP-500 DPS LP-1000	16384 – Adult Electrode	Adult, multifunction, radiolucent, pace/defibrillation, monitoring electrodes w/ Physio connectors, latex free, Peel Pouch, 60 inch lead wire and 3 year shelf life, box (10 pair)
Zoll Medical	M-Series R-Series E-Series X-Series	16240 – Adult Leads Out Electrode	Adult, multifunction, radiolucent, leads out wires, pace/defibrillation, monitoring electrodes w/ Zoll connector, latex free, 60 inch lead wire and 3 year shelf life, box (10 pair)
		16381 – Adult Electrode	Adult, multifunction, radiolucent, pace/defibrillation, monitoring electrodes w/ Zoll connector, latex free, Peel Pouch, 60 inch lead wire and 3 year shelf life, box (10 pair)
		16380 – Pediatric Electrode	Pediatric, multifunction, radiolucent, pace/defibrillation, monitoring electrodes w/ Zoll connector, latex free, Peel Pouch, 60 inch lead wire and 3 year shelf life, box (10 pair)
	Zoll AED PLUS	NA	Curaplex® defibrillation electrodes are NOT compatible with this Zoll device
Cardiac Science	PowerHeart AED G3 Plus PowerHeart AED G3 Pro	16382 – Adult Leads Out Electrode	Adult, multifunction, radiolucent, leads out wires w/ Cardiac Science™ connector, 48” lead wire, 30 month shelf life, latex free, box (10 pair)
