ASTE FINLAND AVO Standard 170-60 AVO Series Coolboard

Congratulations on the purchase of your new Aste premium product!
At Aste we develop products with complete devotion to quality and ease of use. That’s our passion. To obtain the best results, we advise you to read this user manual* carefully. Even though this product has been designed according to the highest standards, it is important to use and maintain your appliance correctly. On behalf of the Aste-team

SAFETY INSTRUCTIONS

Please read this operating and maintenance manual carefully. We suggest to keep the guide into your possession during the entire life cycle of the product.
After delivery, immediately check the appliance for possible transport damage and make sure it works properly. All safety devices must be present and functional before operating the appliance.
Do not leave children without supervision. Ensure that they do not play with the appliance. In the case of appliances provided with locks, the key must be kept at a site where children cannot have access to it to avoid unintentional locking.

INSTALLATION AND USE

The appliance always has to be transported and displayed vertically.

The appliance is designed for inside use only.

The surroundings should not transcend the following conditions (based on a standard environment):

• 25°C temperature
• 60% humidity
• 0,2 m/s air speed

Keep a minimum distance of 10 cm between the appliance and neighbouring surfaces (walls, roof, furniture etc.).

Keep clear of obstructions all ventilation openings in the appliance enclosure or for built-in structure.

Before connecting the device, check:

• The power rating (on the type plate)
• The relevant local electrical safety regulations

Do not use an extension cord to connect the appliance to the electrical circuit.

Make sure that power cable and plug are undamaged before connecting the appliance. The damaged cable can only be replaced with a cable identical to the original part.

After delivery, keep the appliance in a warm ambient temperature for 2 hours before starting it.

Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in the appliance. The user is solely responsible for damages to properties or products, or injuries to persons resulting from careless and improper use of the appliance.
Do not expose the appliance into direct sunlight. Do not heat the appliance to more than 70°C.

Only authorised service specialists may perform work on the electrical and refrigeration systems. If this is not observed, all warranty and liability claims become invalid.
Damaging the refrigerant circuit can lead to severe injuries. Do not damage the refrigerant circuit!

WHEN OUT OF USE
Make sure that the appliance is thoroughly cleaned and dried. Proper cleaning prevents corrosion and mold formation.

Appliances out of use may be dangerous for children, therefore position the appliance in such manner that no person can get locked up.

When disconnecting the appliance from the power supply, always take hold of the plug. Do not pull the cable.

PUTTING INTO OPERATION

INSTALLATION

Never move the appliance by grasping the edge of the glass sides.
Position the device where it is protected from sunlight and other heat sources, since operation may be disturbed if the ambient temperature exceeds +25°C.

• The appliance should not be operated in rooms where the temperature drops below +10°C since this disrupts the lubrication of the compressor.
  Leave at least 10 cm space between the appliance’s side walls/roof/back and neighbouring surfaces such as other devices, walls, furniture and ceiling to provide free air flow behind the device to enable proper operation.
  If the furnishing of the room allows positioning only close to the heat source the following minimum clearances must be kept:
• Put a 0.5-1 cm thick insulation board between two devices if they are 3 cm or less apart.
• Min. 30 cm from oil or coal-fired ovens.
  IMPORTANT!
  If the humidity is above 60%, condensation may occur on the glass.

ELECTRICAL CONNECTION
The appliance may be connected to 220-240 V, 50 Hz mains via properly mounted grounded socket. Check if the voltage meets the local voltage and make sure that the connecting cable isn’t stuck anywhere.
A fuse/circuit breaker of 10 A is required for the operation of the appliance.

• • If the connection cable is damaged or it has to be extended, the job must be done by a qualified electrician to avoid dangerous situations.
    Do not use an extension cord! The appliance must be positioned in a way that the main plug is easily accessible.

USE OF THE APPLIANCE

STARTING UP

IMPORTANT!
All packaging materials are recyclable/energy waste.

1. Clean the appliance with detergent before switching it on, dry it with a soft, clean cloth and let it ventilate for a while.
   It is advised to keep the appliance in an upright position for at least
2. hours after transport before using it.
3. It is advised to switch on the appliance and check its operation before positioning it at the final place.
4. Place the shelves on the shelf holders.
5. It is advised to switch on the appliance and check its operation before positioning it at the final place. Connect the plug into the socket.
6. Leave the appliance connected in an empty state for 2 hours to check the functioning before adding goods for the first time. Do not load food to be chilled before the temperature display reads +6°C.

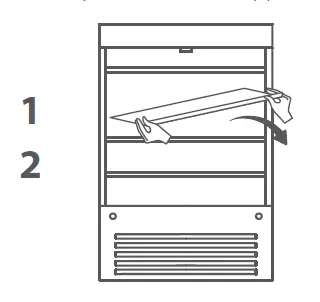

SHELF INSTALLATION

IMPORTANT!
Wear safety gloves during the installation.

1. Attach shelf supports to shelf rails at the desired height.
2. Slide the shelf into the appliance and mount it on supports.
3. Make sure the shelf stays stable on its supports.

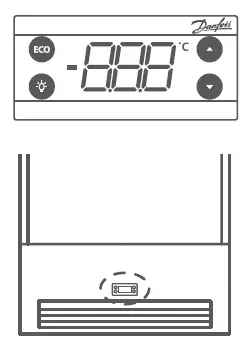

DIGITAL CONTROLLER

HINT!
The digital temperature controller is located behind the ventilation grating.

Select the desired target temperature by pressing or Turn lights ON/OFF by pressing Press and hold for 3 seconds to switch ON or turn OFF the appliance.
Start defrosting by pressing and holding for 3 seconds. Thawing is fully automatic. It is recommended to defrost and clean the appliance every 6 months (see chapter 4. Cleaning and Maintenance).

WARNING!
Do not use mechanical devices or other means to accelerate the defrost-ing process, other than those recommended by the current user manual.

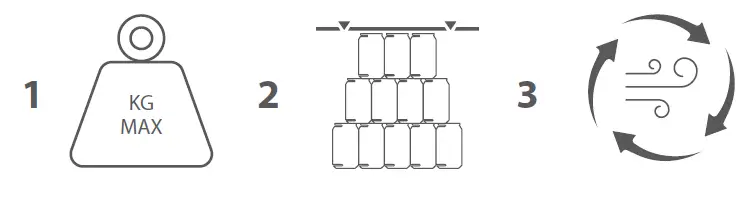

FILLING
To achieve optimal cooling, it is advised to fill up the appliance when it is less frequently used.

1. Check the maximum load.
2. Do not overload the device with products.
3. Be careful not to block air circulation.

ENERGY SAVING TIPS
Do not place the appliance in direct sunlight, HVAC outlets or near heat-producing appliances (like ovens, boilers and heaters). The appliance reaches its top efficiency when it works 24/7, do not switch it off during the night.
Keep your appliance clean and well maintained: dust on the condenser or any unsolved problem can cause increased energy consumption. Fill the appliance according to the prescribed instructions to allow energy-efficient operation.
Wipe goods dry before placing them in the appliance. This cuts down on moisture build-up inside the appliance. Turn off the interior lighting of the appliance for the night. Maintain and clean the appliance in a proper way. If the condenser coil is not cleaned at least 2 times per year, the efficiency of the appliance will decrease significantly. Use the ECO frame provided with ECO models to increase the efficiency of the appliance.

IMPORTANT!

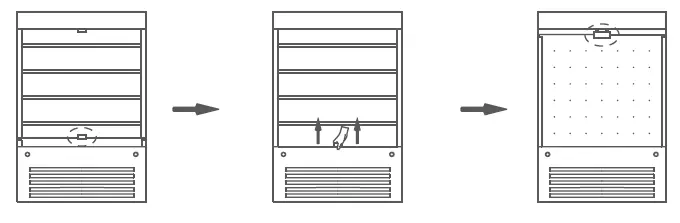

Use the night curtain during the night to save more energy.

IMPORTANT!
Once the appliance is switched off, or in case the power is cut off, wait for at least 5 minutes before plugging in again to avoid damaging the compressor or cooling system of the appliance.

You can upgrade your appliance with ECO frame. To do so please contact the seller, your local service partner or get in touch with our after-sales service: +358 (0)29 7020 0150 or via e-mail: [email protected]

CLEANING AND MAINTENANCE

IMPORTANT!
Lack of maintenance will cause the appliance to break down.

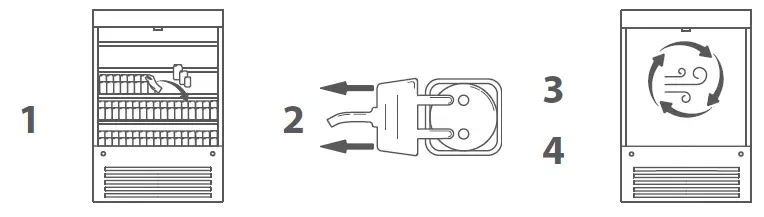

PREPARATION

1. Remove or relocate appliance’s contents.
2. Disconnect the appliance from the mains.
3. Open the night curtain to allow free air circulation.
4. Let the appliance defrost for 12 hours. CLEAN INSIDE/OUTSIDE

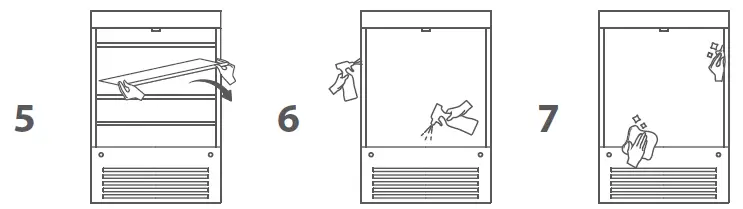

   IMPORTANT!
   Do not clean the appliance with high-pressure or steam cleaners.
5. Remove shelves to reach all surfaces.
6. Clean the inside and outside of the appliance with water and non-aggressive detergent.
7. Dry previously cleaned surfaces with a soft, clean and dry cloth.IMPORTANT!
   Wear safety gloves to avoid the danger of injury during cleaning.
   CLEAN CONDENSER
   IMPORTANT!
   Only the ventilation grating to the condenser may be opened. Only a trained specialist may open other covers of the appliance.

8. Unscrew two knobs holding the ventilation grating.
9. Remove the ventilation grating.
10. The condenser must be cleaned at least 2 times a year with a brush or vacuum cleaner. Make sure that the fins are not damaged or bent.

RE-INSTALL

1. Install ventilation grating and shelves back.
2. Connect the appliance to the main circuit.
3. Switch on the appliance.
4. Put contents back in after 1 hour.
   TAKING THE APPLIANCE OUT OF SERVICE
   Empty the appliance’s contents and pull out the power plug.
   Make sure that the appliance is thoroughly cleaned and dried. Thus mould formation and corrosion are prevented.
   The appliance out of use may be dangerous for children, therefore position the appliance in such manner that no person can get locked up.
   IMPORTANT!
   Secure loose parts of the appliance before moving it to the storage.

TROUBLESHOOTING

In case the malfunction is not caused by any of the above-mentioned factors or persists over a long period of time or in order to order spare parts*, please contact the seller, your local service partner or get in touch with our after-sales service:
+358 (0)29 7020 0150 or via e-mail: [email protected]
The minimum period during which spare parts, necessary for the repair of the appliance is 8 years after placing the last unit of the model on the market

TECHNICAL SPECIFICATIONS

You can find the detailed explanation of product classification according to applicable standard using the link: www.astecoolers.com/products

ENVIRONMENTAL POLICY & RECYCLING

Environmental awareness is key throughout the complete life cycle of our products: from designing to producing it to finally recycling it.
We keep a close eye on the economical and effective use of new environmentally friendly materials in our products and production. Our target is to minimise the use of non-renewable natural resources.
We are convinced that sustainable production is the only correct way of working with respect for our customers, consumers and our planet today and in the future.
We strongly advise you to visit www.astecoolers.com/products to
check the optimal storing temperatures for food and beverages. Incorrect temperature setting may result in spoilage and food waste.

DISPOSING OF THE APPLIANCE

WARNING!
The thermal insulation material is EPP.

The appliance contains some reusable materials and should be disposed of properly — not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws. Please check your obligations in accordance with the national WEEE* provisions and the local WEEE disposal partner. Ensure that the piping is not damaged in the process.
Both insulating material and the coolant of the appliance bought by you are environment-friendly materials, which do not damage the ozone layer around the globe in any form.
Waste Electrical and Electronic Equipment Directive
The warranty terminates upon:

• outside & wrong usage
• not following the instructions
• negligence of maintenance

The minimum duration of the warranty is 12 months. For more information, please contact the seller, your local service partner or get in touch with our after-sales service:
+358 (0)29 7020 0150 or via e-mail: [email protected]

DETAILED PRODUCT INFORMATION

Detailed product information is available from the European product database (EPREL).

1. Use the QR code on the rating plate to find the product information from EPREL.
2. You can also access the EPREL using the link: https://eprel.ec.europa.eu/
3. You will be asked to enter the model ID. You can find the model ID on the rating plate.

HINT!
You can find product specifications, hints, recommendations, product cards and other helpful information from www.astecoolers.com
