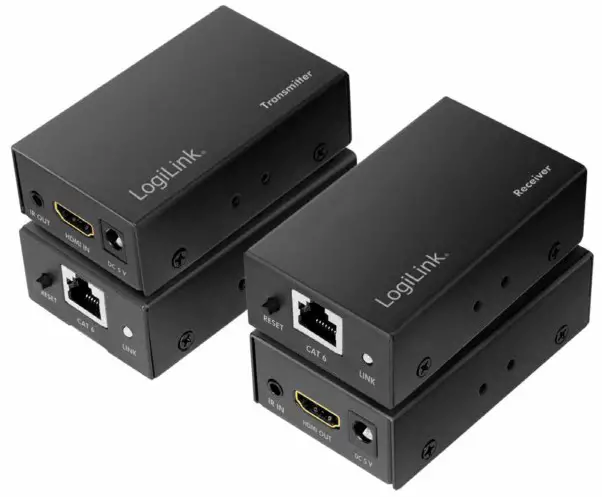

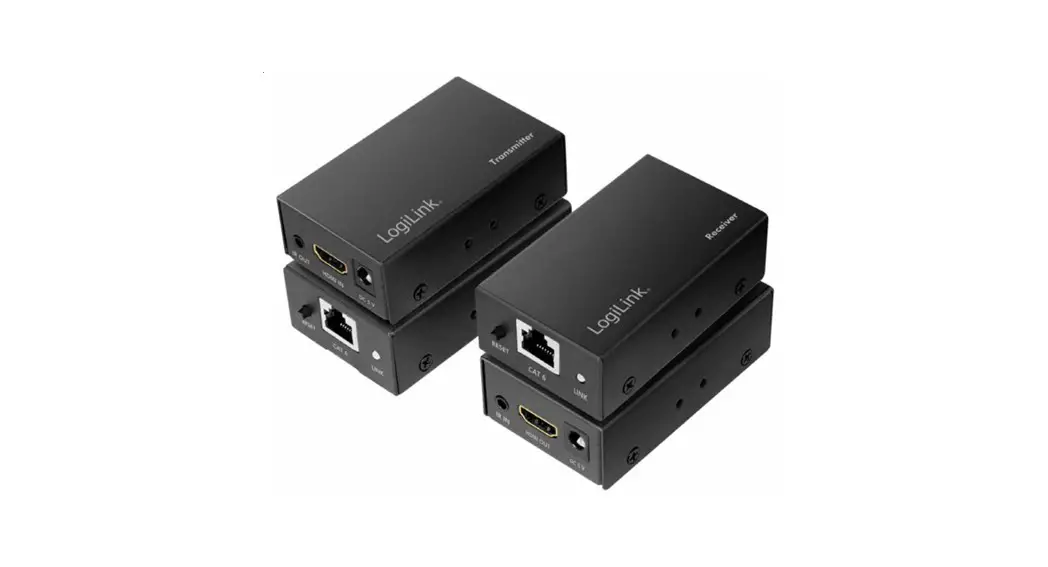

HDMITM Extender Set Over Network Cable
1080p/60 Hz, Extend up to 60 m
Art. No.: HD0023
Allows you to extend HDMI video and audio signals by up to 60 m over a networking cable; with supports resolution up to 1080p/60 Hz. Also, it works to extend IR signals from remote controls of the video source. Perfect for controlling your video source from your video destination.
Features:
- Supports 1080p@60 Hz up to 60 m over a single Cat. 6/7/8 cable
- Bandwidth: 2.25 Gbps/225 MHz per channel
- Supports deep color 8 bit/10 bit per channel (24 bit/30 bit all channels)
- Compatible with HDCP 1.3
- Supports Full 3D, DDC (Display Data Channel) and CEC (Consumer Electronics Control)
- Supports uncompressed audio such as LPCM 7.1
- Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
- Features IR return which enables you to control the video source from your video destination
- Power Over Cable

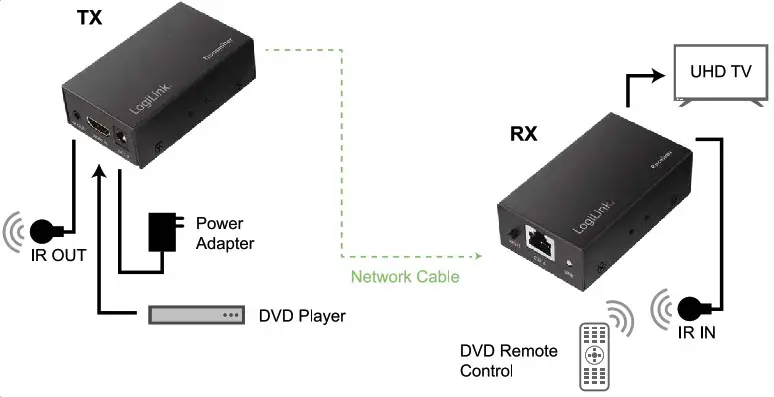

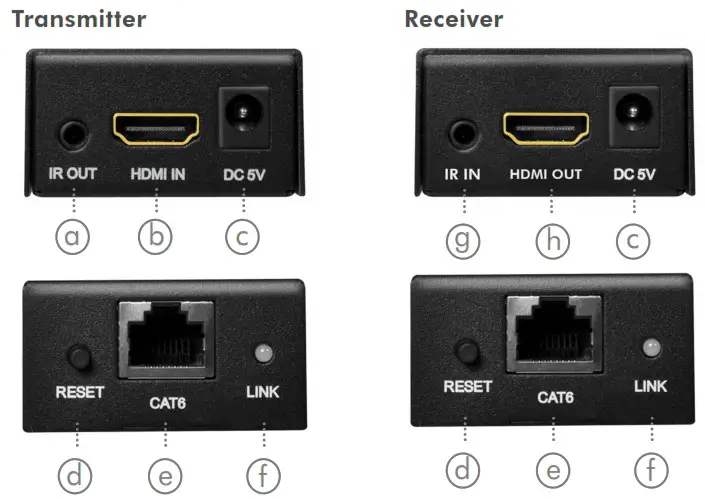

| a IR Out: IR signal output port b HDMI In: connect to HDMI source device c Connect to DC 5 V Power Supply d Reset (equalizer): automatically to adjust the signal to match the cable length | e Ethernet Ports: Connects transmitter (TX) to receiver (RX) via network cable f Link LED Indicator g IR In: IR signal input port h HDMI Out: connect to HDMI display device |
Specifications:
| Item | Parameter |
| Product Name | E-Traveler Device |
| Model Number | ET202011 |
| Dimension | 210mmX155mmX26mm |
| Weight | 405g+/-5% |
| Screen | 7.5 inch, 640(H)*384(V) pixel, Black & White |
| Battery | 6000mAh |
| Wireless | WiFi 2.4GHz |
| Transmitter (TX) Interface | 1x HDMI-A female, 1x RJ45 |
| Receiver (RX) Interface | 1x HDMI-A female, 1x RJ45 |
| HDMI Version | 1.3 |
| HDCP Version | 1.3 |
| Working Distance | 60 m |
| Output Resolution | 480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz |
| Video Bandwith | 2,25Gbps/225MHz |
| CEC (Consumer Electronics Contro) | Yes |
| DDC (Display Data Channel) | Yes |
| Chassis Material | Metal |
| 3D Supporting | Yes |
| LED Indicator | Yes |
| IR Support | Yes |
| POC (Power Over Cable) | Yes |
| Power Consumption | 5 W |
| Power Supply | 5 V/1 A |
| Uncompressed Audio | L P C M 7.1 |
| Compressed Audio | DTS, Dolby Digital, DTS-HD Master Audio™, Dolby TrueHD |
| Networking Cable | Cat 5e/6/7/8 |
| Operating Temperature | 0˚C–70˚C |
| Operating Humidity | 10%–85% RH (no condensation) |
| Storage Temperature | -10˚C–80˚C |
| Storage Humidity | 5%–90% RH (no condensation) |
| Dimensions | 8,1×4,8×2,6 cm |
| Weight | 0,25 kg |
Specification of External Power Supply:
| Input Voltage | 100–240 V, 50/60 Hz 0,2 A max. |
| Output Power | 5 V/1 A, 5 W |
| DC Plug | 5,5×2,1 mm |
| Dimensions | 51x35x59 mm |
| Cable Length | 1,2 m |
| Weight | 0,07 kg |
Package Contents:
- 1x HDMI Extender Set
- 1x IR TX Cable
- 1x IR RX Cable
- 4x Mounting Ears
- 1x Power Adapters 5 V/1 A
- 1x User Manual
Package Information:
- Packing Dimension: 190x145x60 mm
- Packing Weight: 0,47 kg
- Carton Dimension: 505x235x340 mm
- Carton Q`ty: 15 pcs
- Carton Weight: 7,5 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
