ME 3 Headset Microphone
User Guide

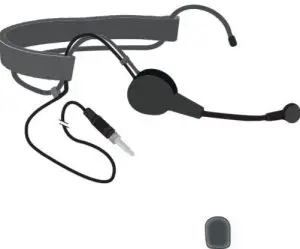

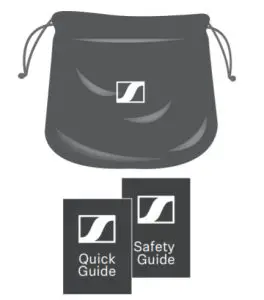

In the box
 |  |

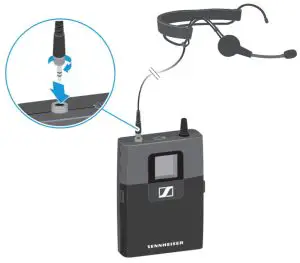

Setup

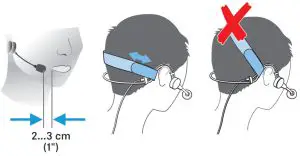

Wearing the microphone

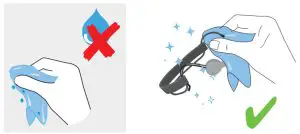

Cleaning

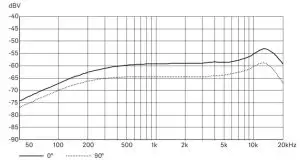

Frequency response
Specifications
| Transducer principle | pre-polarized condenser microphone |
| Pick-up pattern | cardioid |
| Sensitivity in free field (1 kHz) | 1.6 mV/Pa |
| Max. SPL at 1 kHz | 150 dB |
| Frequency response | 50 to 18,000 Hz |
| Connector | 3.5 mm jack |
| Cable length | approx. 1.60 m |
| Supply voltage | 10 V |
| Weight | approx. 60 g |

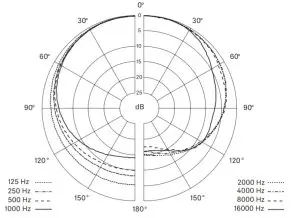

Polar pattern
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Publ. 10/21, 587437/A02
