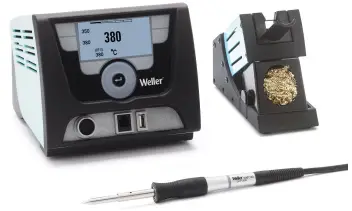

Weller WX1010N 200W 1-Channel Soldering Station
KEY FEATURES
- High Powered Digital Soldering Stations
- Capacitive glass touch screen is chemical and temperature resistant
- Turn and click wheel with enter key and finger guide is intuitive to use
- Multi-language menu , ready for automation using RS232 Serial I/O commands
- Large graphic LCD display can be viewed from all angles
- Acts as a benchtop controller for the WHP 1000 / WHP 3000 hot plates
- Acts as a benchtop controller for the Zero Smog 4V / 6V Filtration units
- Multi-purpose USB port for parameter configuration and DATA LOGGING
- Compatible with all WX series soldering pencils
TECHNICAL DATA
| Dimensions L x W x H | 6.6 x 5.9 x 5.1 in |
| Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Back of Device |
| ESD Safe | Yes |
| Interface | 1x USB, 2x RS232, 1x Switching Output |
| Number of Channels | 1 |
| Power | 200 W |
| Temperature Accuracy °C | ± 9 °C |
| Temperature Accuracy °F | ± 17 °F |
| Temperature Range (Depends on Tool) | 199 – 998°F |
| Temperature Range °C | 93 – 537 °C |
| Temperature Range °F | 199 – 998 °F |
| Temperature Stability °C | ±2 °C |
| Temperature Stability °F | ±4 °F |
| Tip Type | WX WXMT-MS XTB |
| UPC | 037103304773 |
| USB | USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
