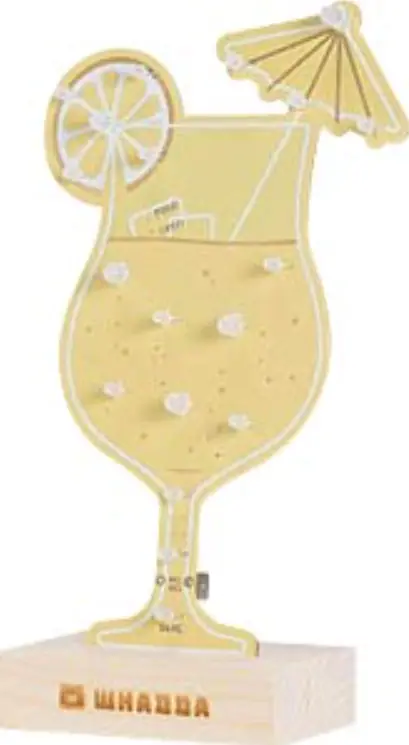

velleman WSXL105 Soldering Kit
Soldering

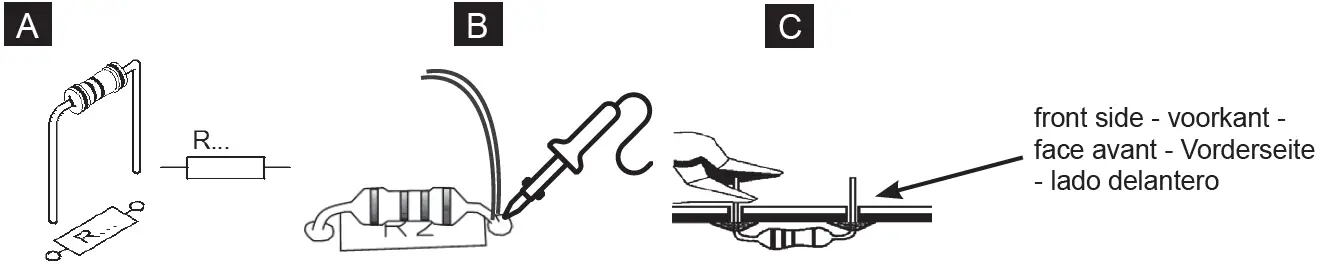

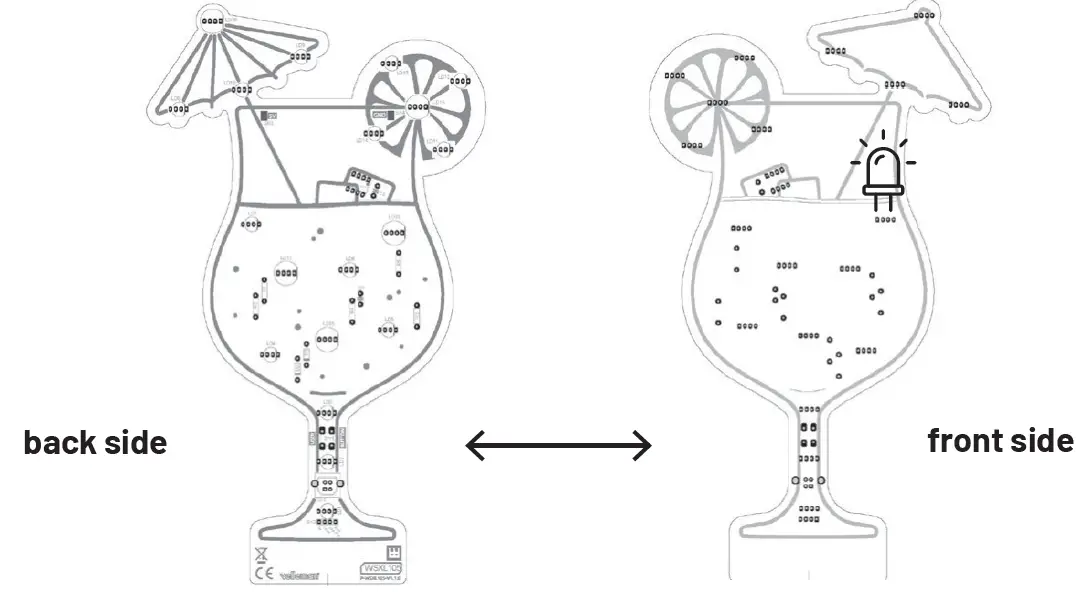

Follow the tutorial and learn how to solder on:

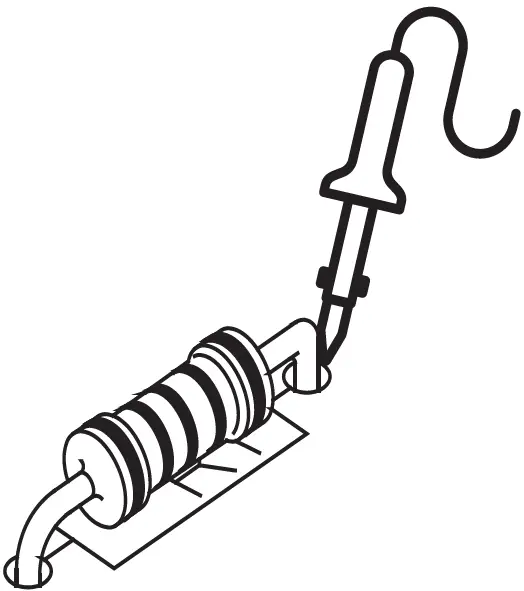

Resistor
- R1, R2: 68 ohm
blue, grey, black - R3: 470 ohm
yellow, purple, brown - R4: 10K
brown, black, orange - R5: 1K5
brown, green, red

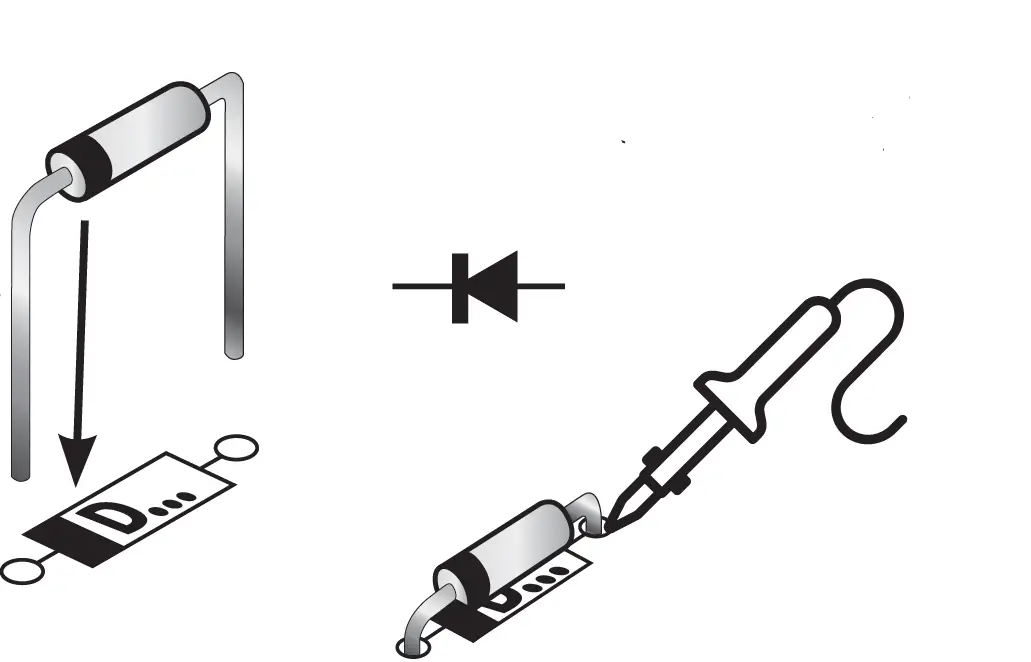

Zener diodes
Watch the polarity!
- D1, D2: 3,6 V – 500 mW

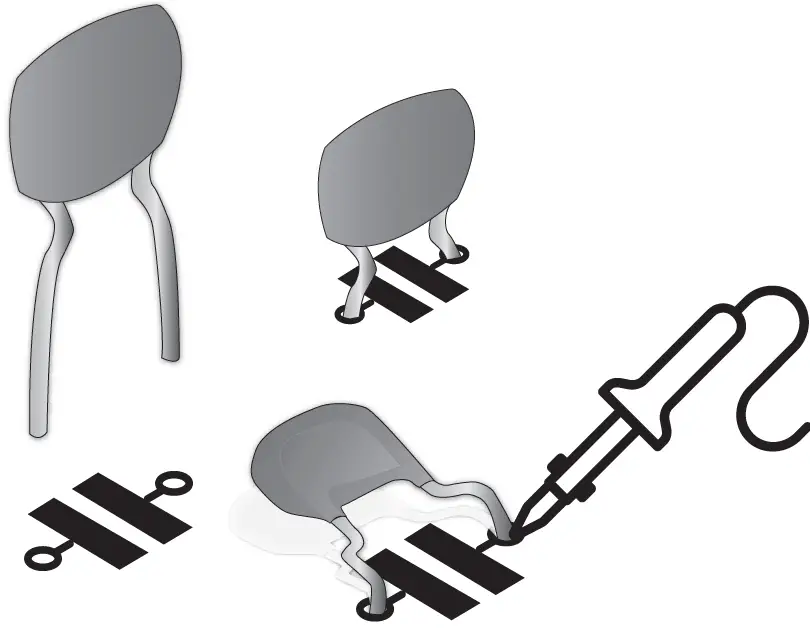

Capacitors
- C1, C2: 100nF

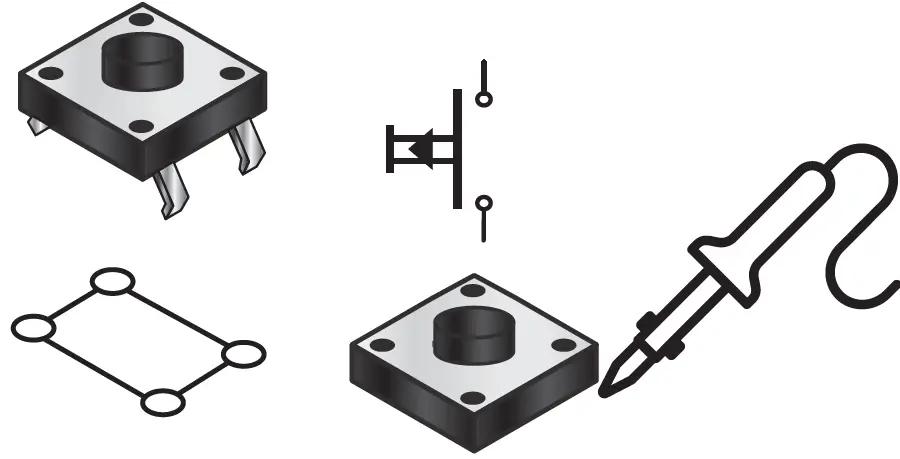

Button
- SW1

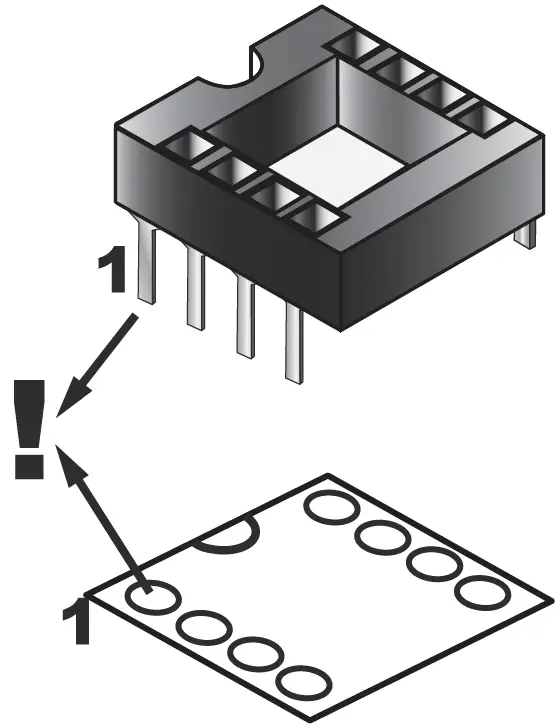

IC socket
Watch the notch!
- U1 – 8 pins

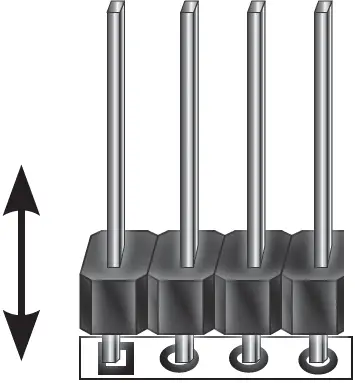

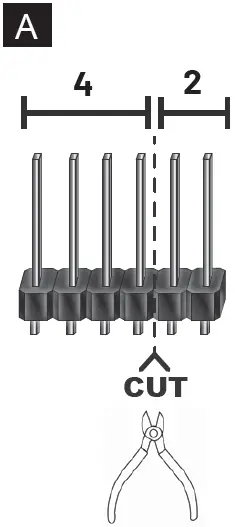

Pin header
- SK2

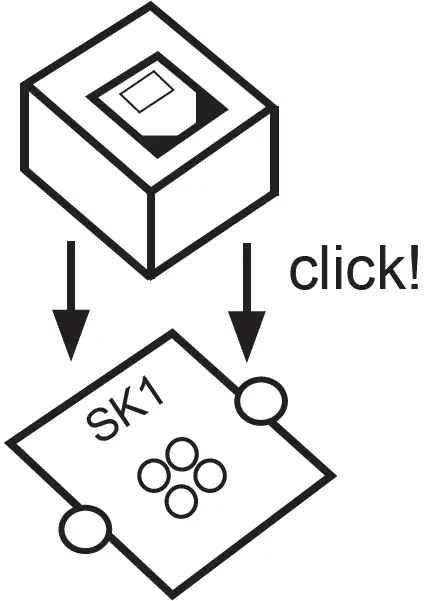

USB connector
- SK1

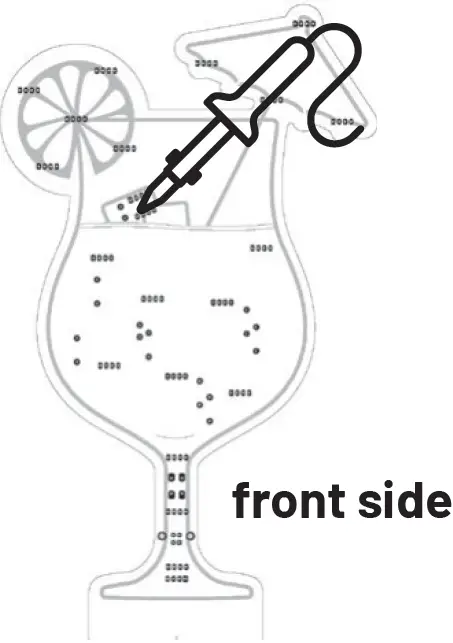

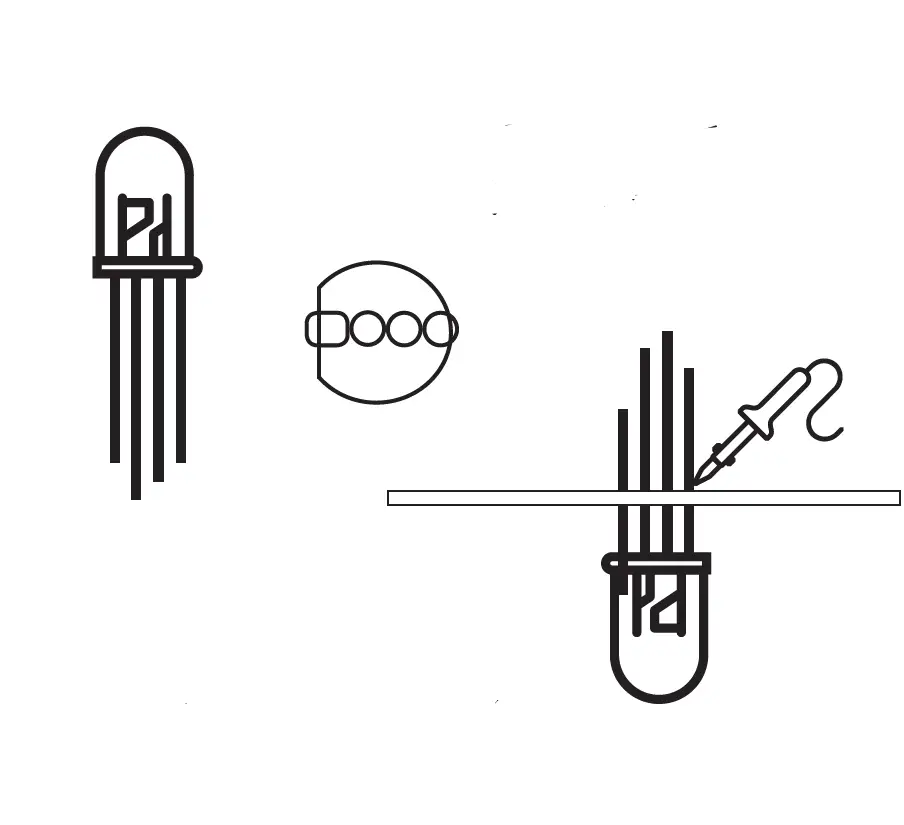

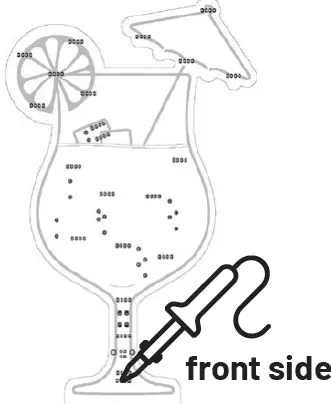

LEDs
Watch the polarity !
- LD1 … LD16: diffused RGB LED – 5 mm
- LD17 … LD21: diffused RGB LED – 8 mm
IC
- U1 – ATtiny 85 pre-programmed

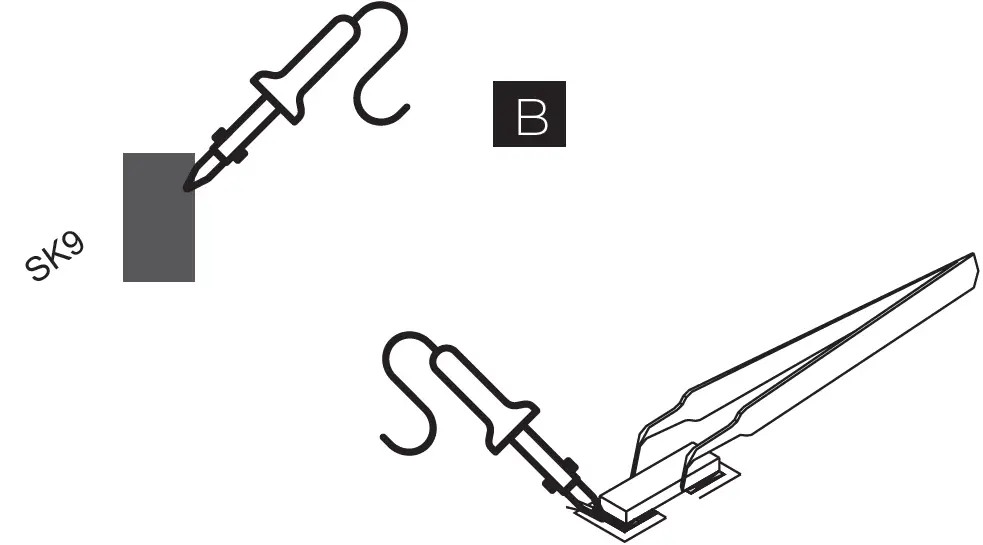

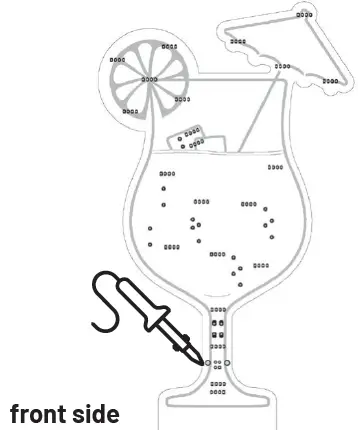

Hooks (optional)
- pre-solder
- SK9 & SK10
