HWSL220 Electronic Candle Soldering Kit
User Manual
HWSL220 Electronic Candle Soldering Kit
START

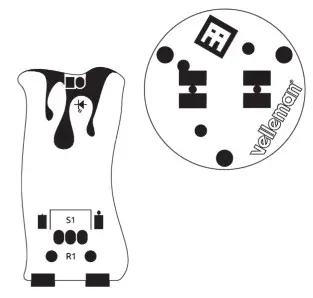

component side

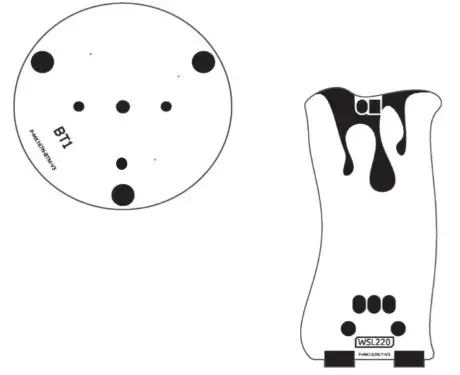

solder side + battery holder side

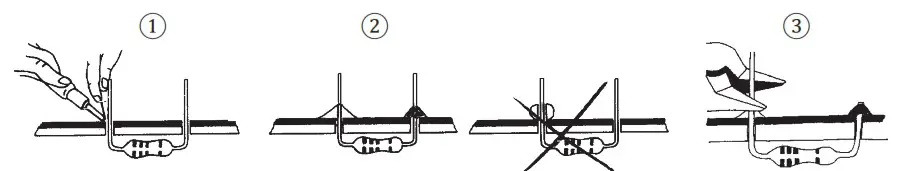

Soldering
component side

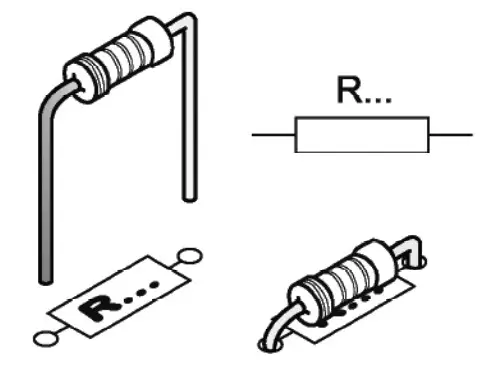

Resistor
◊ R1: 100 ohm (brown, black, brown)

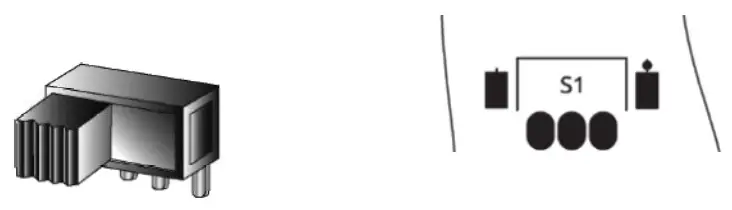

SWITCH
◊ S1: slide switch

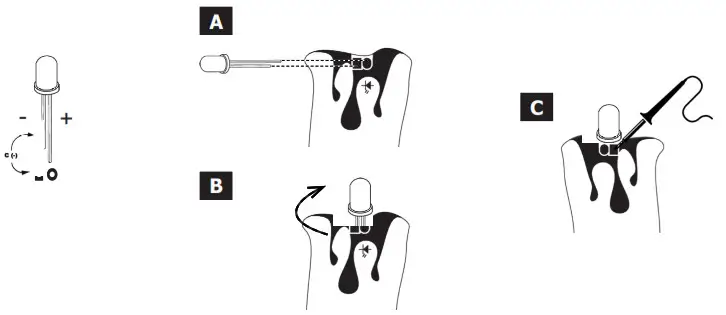

LED
Watch the polarity !
◊ D1: special candle LED 5mm
PINS

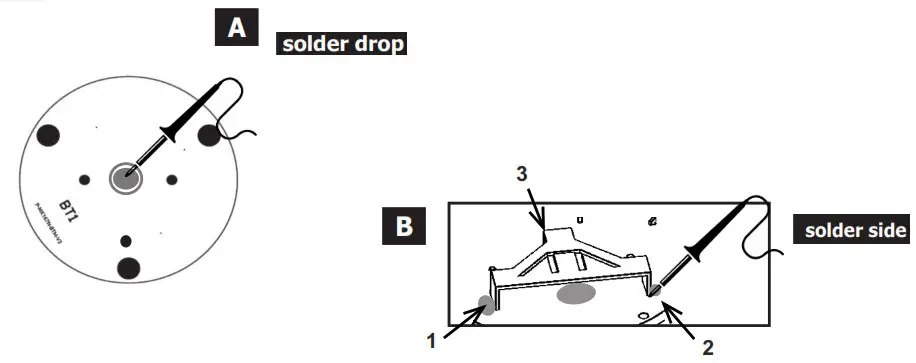

BATTERY HOLDER

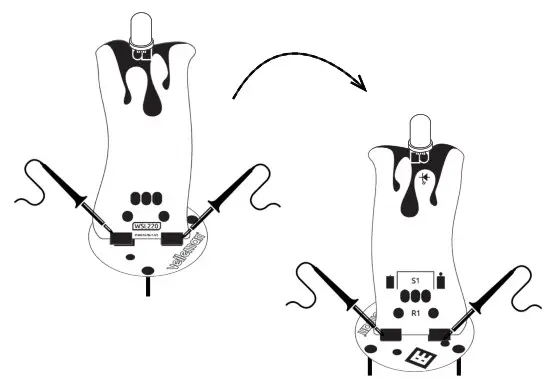

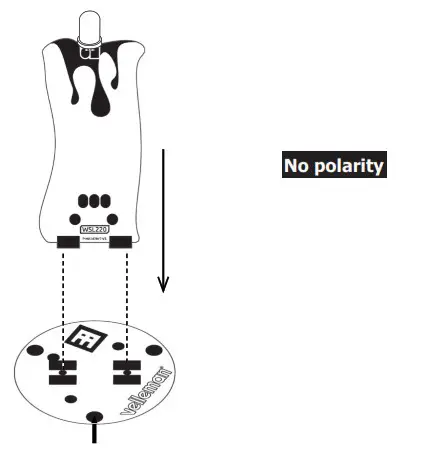

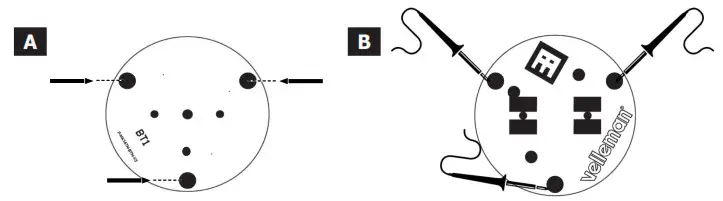

CONNECT PCBs
