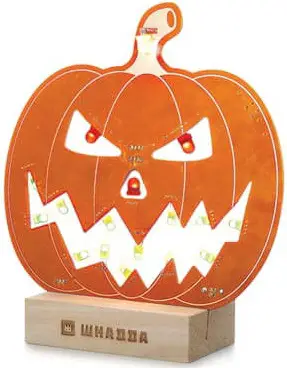

velleman WSXL108 Pumpkin XL Soldering Kit Instruction Manual
Soldering
Follow the tutorial and learn how to solder on:

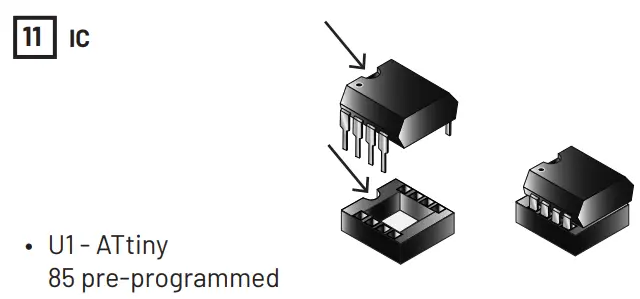

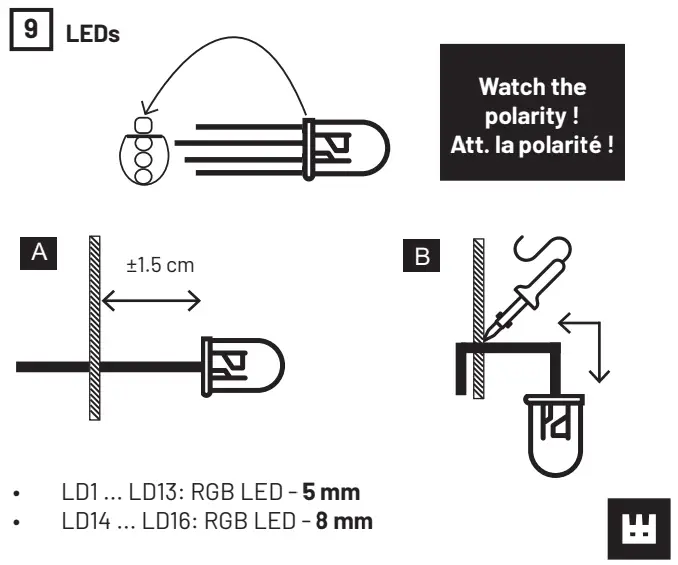

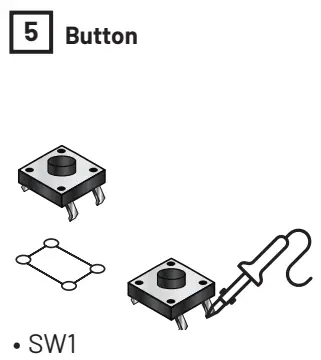

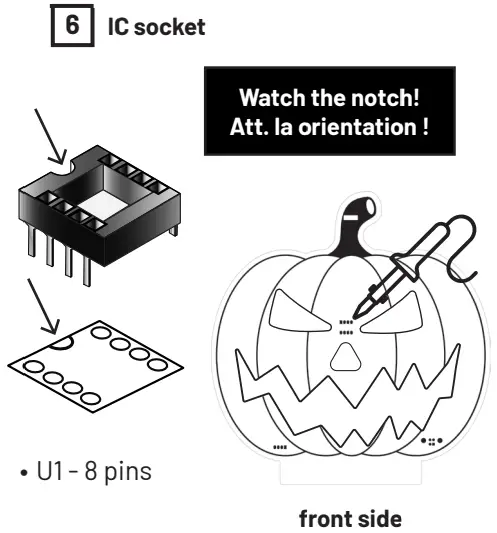

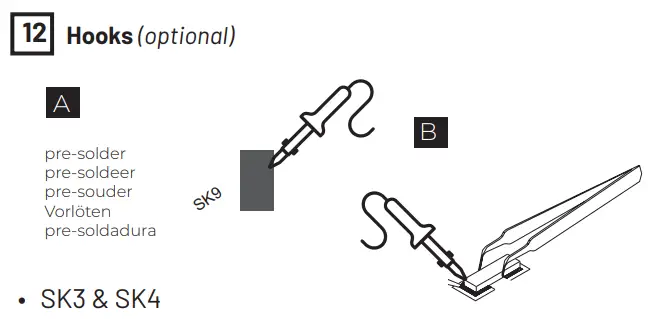

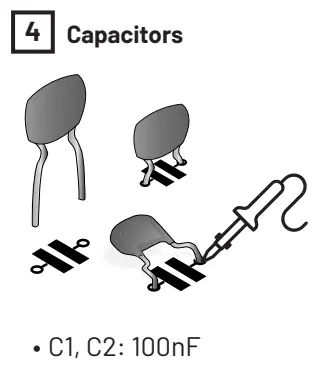

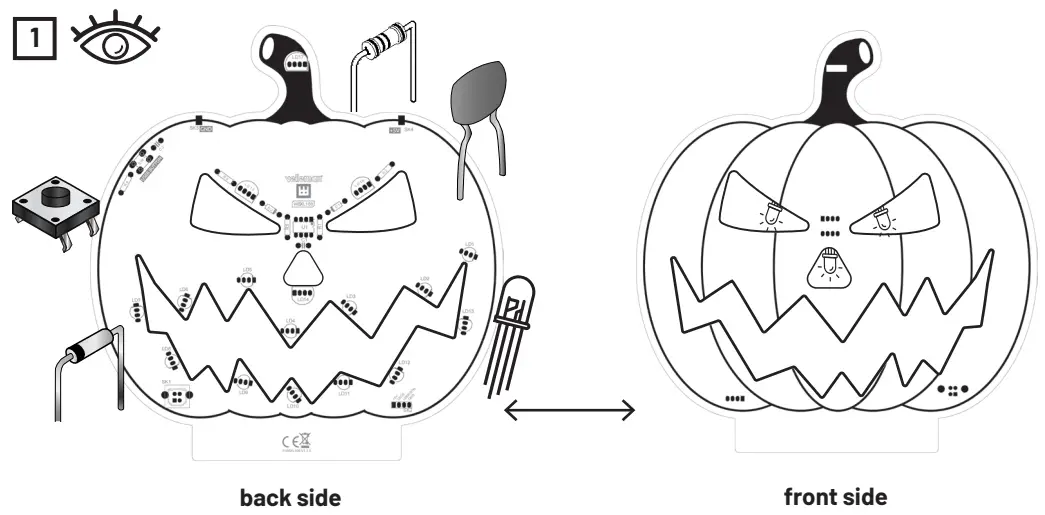

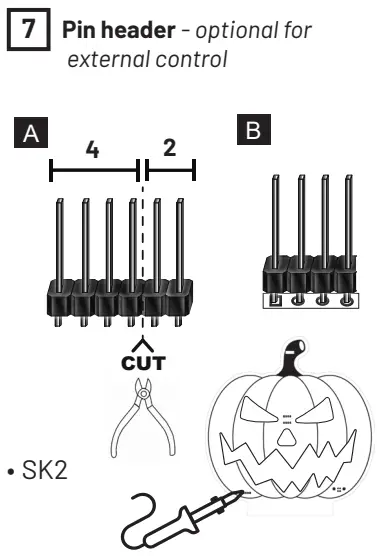

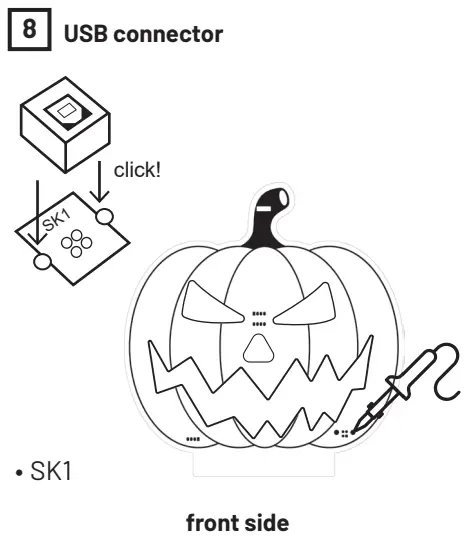

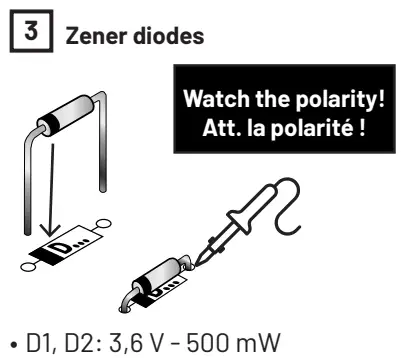

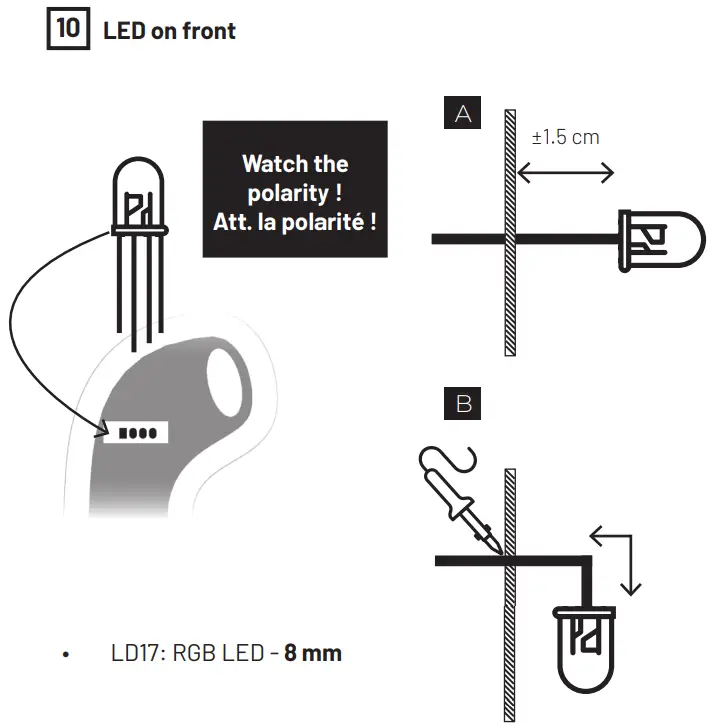

Assembly Instructions

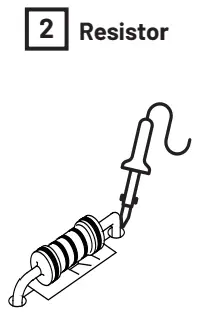

- R1: 1K5 ohm
brown, green, red - R2, R3: 68 ohm blue, grey, black
- R4: 10K
brown, black, orange – bruin - R5: 470 ohm
yellow, purple, brown
TO ALL RESIDENTS OF THE EUROPEAN UNION
Important environmental information about this product
This symbol on this unit or the package, indicates that disposal of this unit after its lifecycle could harm the environment. Do not dispose the unit as unsorted municipal waste; it should be disposed by a specialized company for recycling. This unit should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If any doubt contact your local authorities about waste disposal rules.
Learn how to solder with Whadda! Tutorial
