VTSS5U Low-Cost Soldering Station
Instruction Manual
VTSS5U Low-Cost Soldering Station

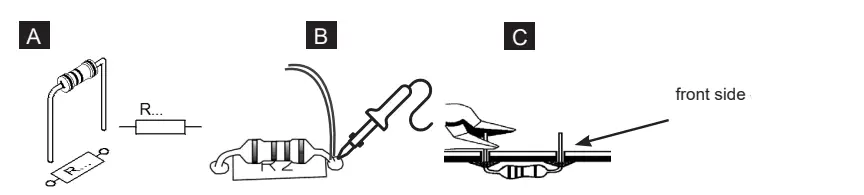

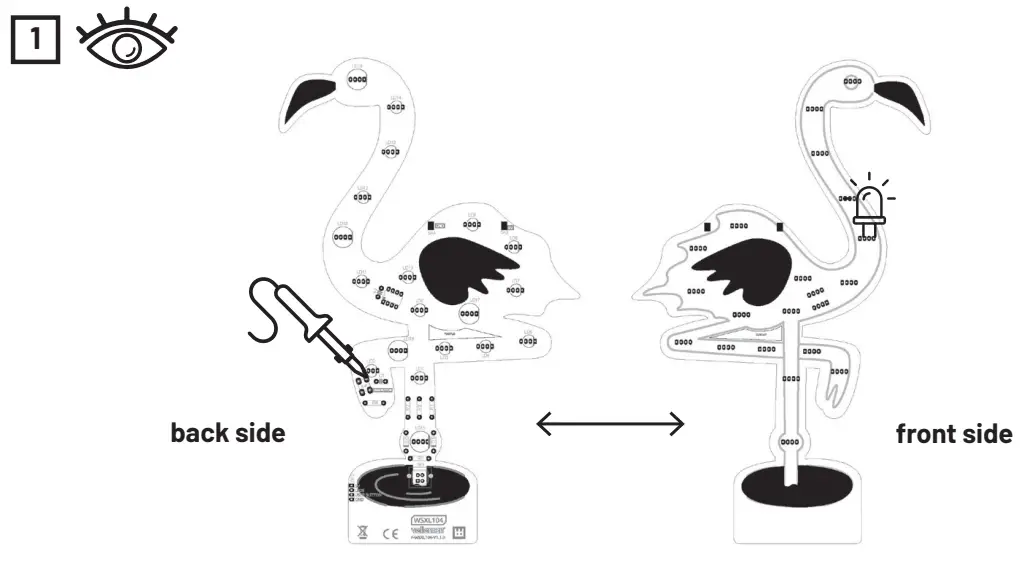

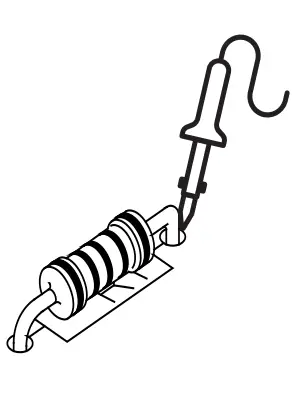

Resistor
| • R1, R2: 68 ohm | blue, grey, black |
| • R3: 470 ohm | yellow, purple, brown |
| • R4: 10K | brown, black, orange |
| • R5: 1K5 | brown, green, red |

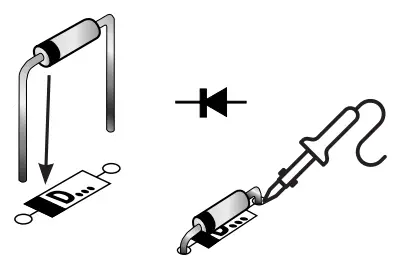

Zener diodes
Watch the polarity!
- D1, D2: 3,6 V – 500 mW

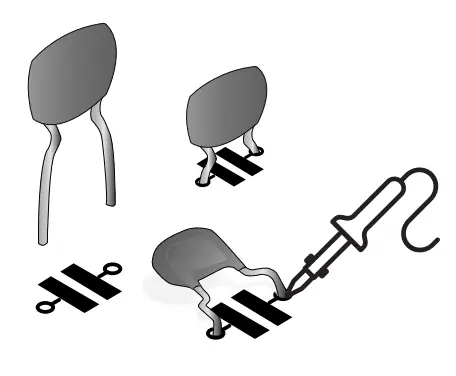

Capacitors
- C1, C2: 100nF

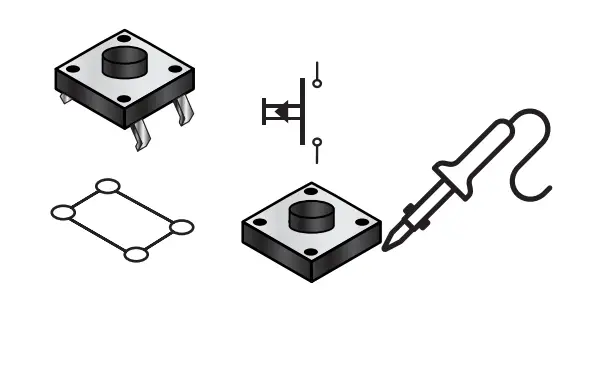

Button
- SW1
WSXL104-06052022

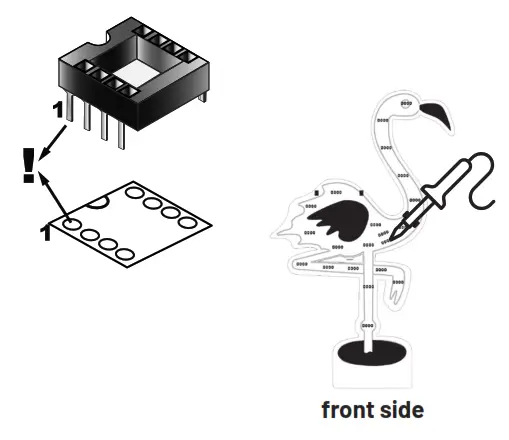

IC socket
Watch the notch!
- U1 – 8 pins

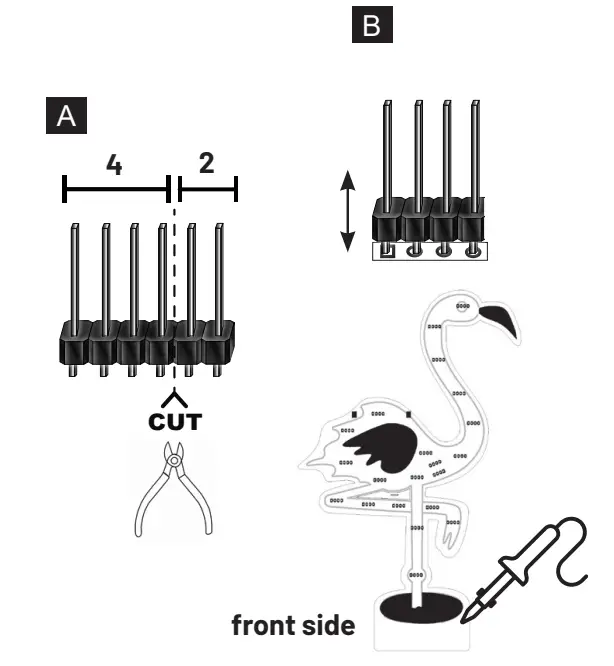

Pin header
- SK2

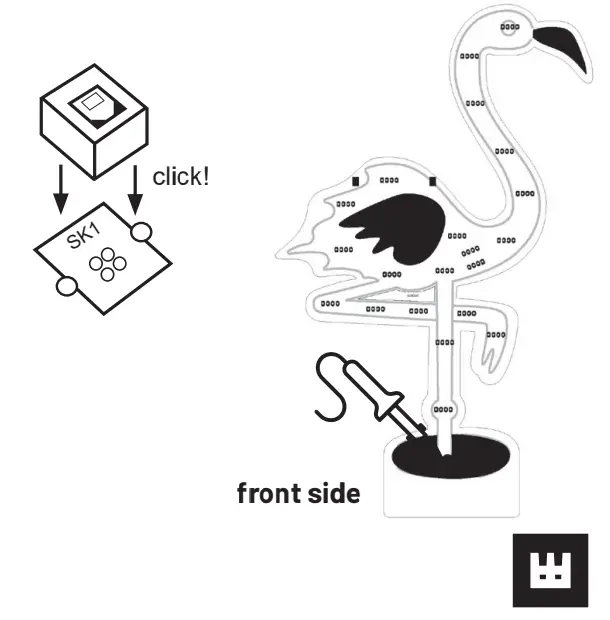

USB connector
- SK1

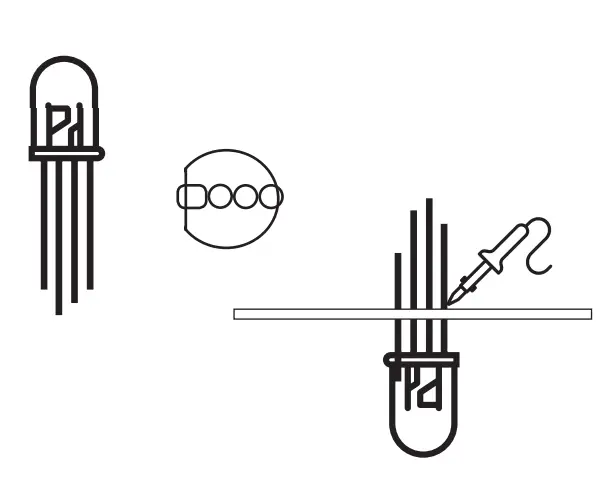

LEDs
Watch the polarity !
- LD1 … LD14: diffused RGB LED – 5 mm
- LD15 … LD19: diffused RGB LED – 8 mm

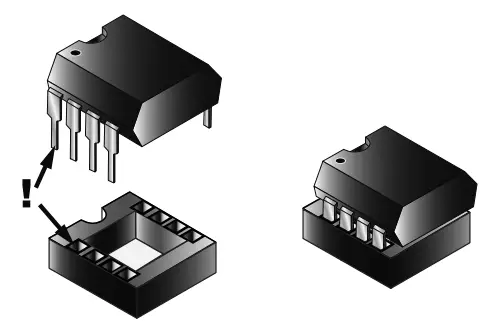

IC
- U1 – ATtiny 85 pre-programmed

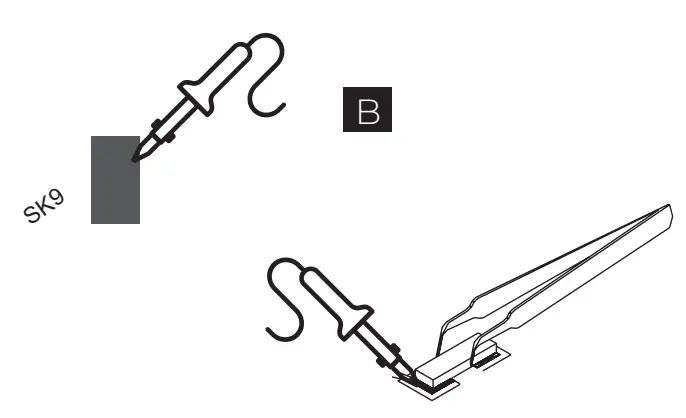

Hooks (optional)
pre-solder
- SK9 & SK10
Soldering
Follow the tutorial and learn how to solder on:
